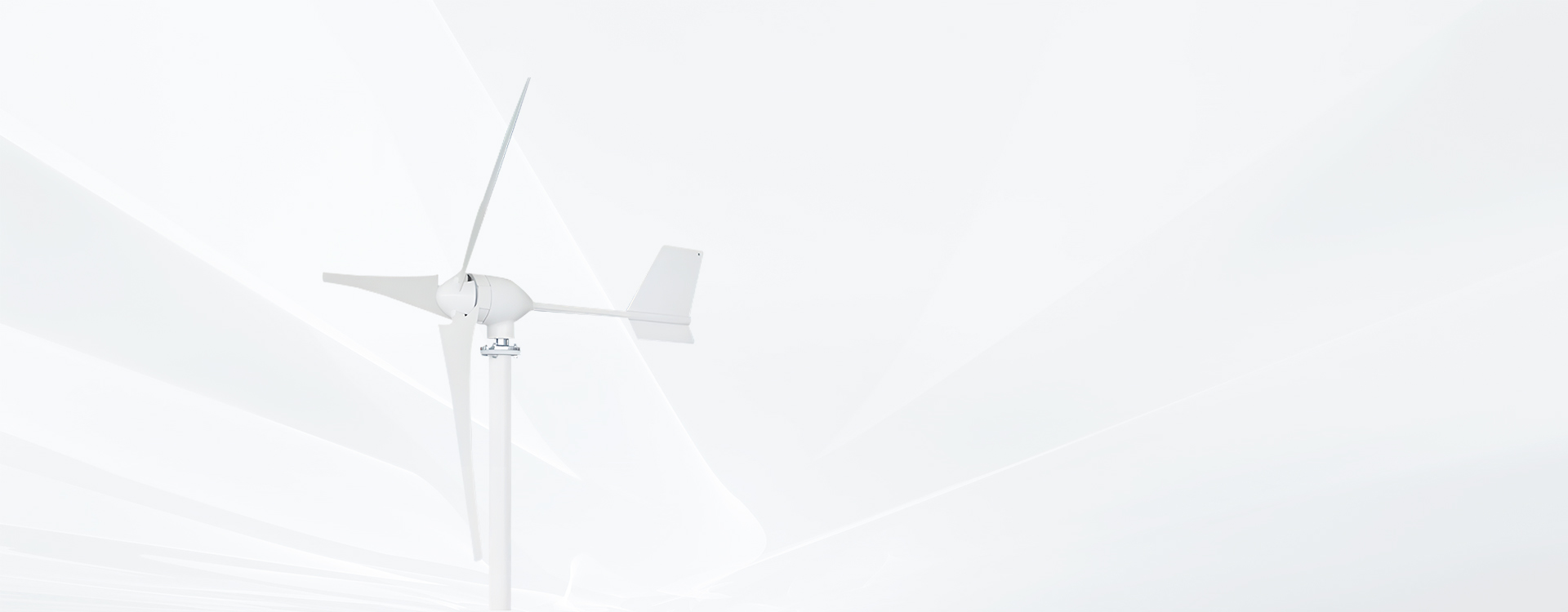

KLD-WTL SERIES
HORIZONTAL AXIS SMALL
WIND TURBINE（100-1000W）
Safe
Economic
Efficient
KLD-WTL SERIES
HORIZONTAL AXIS SMALL
WIND TURBINE（100-1000W）

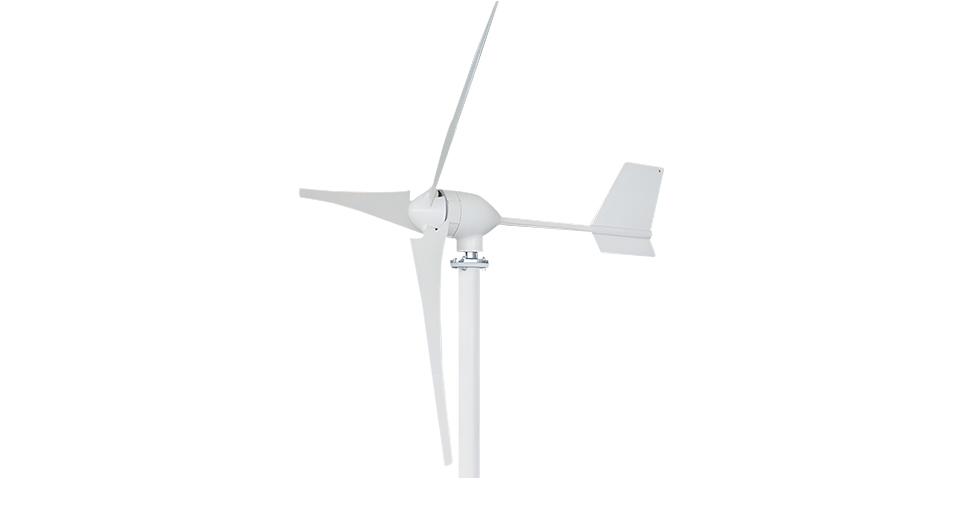

The axis and the rotation axis of KLD-WTL series horizontal axis wind turbine is parallel to the ground. It adopts permanent magnet synchronous generator, which has a longer life cycle and higher reliability. In addition, the adjustable pitch control technology is adopted in order to maximize the utilization of wind energy and improve the power generation efficiency.
The blades rotate perpendicular to the axis,which is easy for installation and maintaineance, and improves the power generation efficiency
The rotational speed can be automatically adjusted according to the changing wind speed, thus better adapting to different wind conditions.
Speed can be controlled by pitch, electromagnetic braking, etc.
The whole series of KLD-WTL adopts sawtooth trailing edge noise reduction technology,and the products are all made of high-strength and lightweight materials, which can reduce mechanical vibration and noise.
KLD series small wind turbines have a variety of appearance design, a wide range of shapes and styles to choose from, so as to meet needs of different scenarios, making choice become more flexible and diverse.
| Model | KLD- WTL100W | KLD- WTL200W | KLD- WTL300W | KLD- WTL500W | KLD- WTL600W | KLD- WTL800W | KLD- WTL1000W |
| Rated power | 100W | 200W | 300W | 500W | 600W | 800W | 1000W |
| Maximum power | 150W | 250W | 350W | 550W | 650W | 820W | 1200W |
| Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | 48V |
| Start-up wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | 2.5m/s | 2.5m/s |
| Rated wind speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 11m/s | 12.5m/s |
| Safe wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 40m/s |
| Number of blades | 3pieces | ||||||
| Blade Material | Nylon fiber | ||||||
| Generator | Three phase AC permanent magnet synchronous generator | ||||||
| Braking method | Electromagnetic brake | ||||||
| Operating temperature | ﹣40℃~﹢80℃ | ||||||
Note: material download page for detailed parameter
Rated power：100W
Maximum power：150W
Rated voltage：12V/24V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：200W
Maximum power：250W
Rated voltage：12V/24V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：300W
Maximum power：350W
Rated voltage：12V/24V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：500W
Maximum power：550W
Rated voltage：12V/24V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：600W
Maximum power：650W
Rated voltage：24V/48V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：800W
Maximum power：820W
Rated voltage：24V/48V
Start-up wind speed：2.5m/s
Rated wind speed：11m/s
Safe wind speed：45m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：1000W
Maximum power：1200W
Rated voltage：48V
Start-up wind speed：2.5m/s
Rated wind speed：12.5m/s
Safe wind speed：40m/s
Number of blades：3pieces
Blade Material：Nylon fiber
Generator：Three phase AC permanent magnet synchronous generator
Braking method ：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
