KLD-SH SERIES
INTEGRATED HOUSEHOLD
PV ENERGY STORAGE SYSTEM
5-20kW
Efficient
Intelligent
Reliable
KLD-SH SERIES
INTEGRATED HOUSEHOLD
PV ENERGY STORAGE SYSTEM
5-20kW

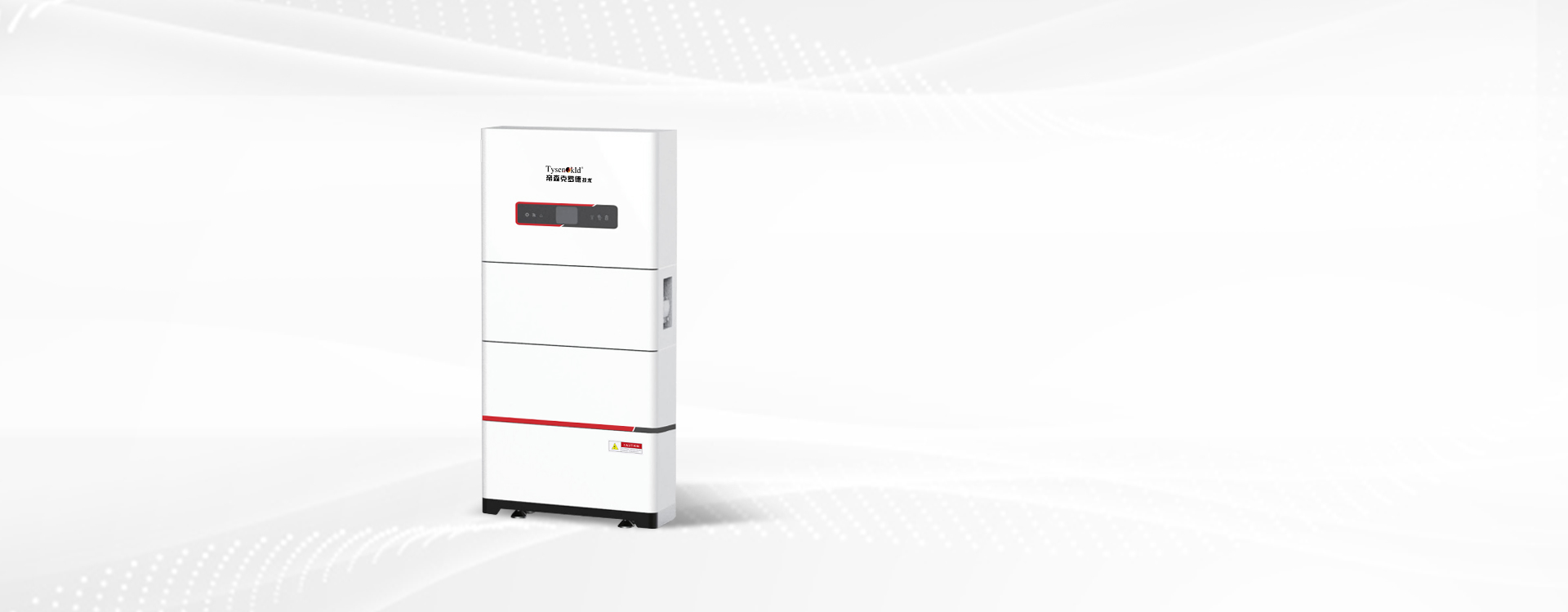

KLD-SH series integrated household PV energy storage system, with the power range of 5-20kW, is compatible with 150-750V battery module and it can extends up to 25kWh. It adopts the design of built-in inverter with single-layer module capacity and can enlarge its capacity based on demands. The IP65 is up to IP65 and its robustness and compactness can be applied to a wide range of scenarios, including households, commercial and industrial areas.
Integrated design of PV energy storage and charging, one-stop service.
Temperature detection of key components such as batteries, plug-in power supply, etc.
Module Parallel connection do not requires cable connection, high voltage platform improves system efficiency.
Various heating functions to meet different application scenarios, for example, low temperature.
100% unbalanced output, up to 50% of rated power per phase.
Support the power storage of diesel generator.
KLD-SH series integrated household PV energy storage system makes environmental-friendly and low-carbon life possible.Whether it's nighttime, rainy weather, or an unexpected power outage, the energy storage system always stores power and provide your home with a steady stream of "green" energy.
| Model | KLD-SH5kW | KLD-SH10kW | KLD-SH15kW | KLD-SH20kW | |
| Rated AC output power (W) | 5000 | 10000 | 15000 | 20000 | |
| Maximum AC output power (W) | 5500 | 11000 | 16500 | 22000 | |
| Rated output voltage | AC220/380V，AC230/400V | ||||
| PV input parameter | |||||
| Maximum DC input power (W) | 6500 | 13000 | 19500 | 26000 | |
| Rated DC input voltage (V) | 600 | ||||
| Start-up voltage(V) | 150 | ||||
| MPPT voltage range (V) | 150～850 | ||||
| Full load MPPT voltage range (V) | 195～850 | 325～850 | 423～850 | 500～850 | |
| Number of MPPT | 2 | ||||
| Number of string of each MPPT inputs | 1 | 2+1 | 2+2 | ||
| DC input current (A) | 20+20 | 26+20 | 26+26 | ||
| Maximum DC short-circuit current(A) | 23+23 | 32+23 | 32+32 | ||
| Efficiency | |||||
| MPPT efficiency | 99.90% | ||||
| Maximum efficiency | 97.60% | ||||
| Battery module parameter | |||||
| Battery module energy (kWh) | 4.09 | ||||
| Rated modular voltage(V) | 102.4 | ||||
Note: material download page for detailed parameter
Rated AC output power (W)：5000
Maximum AC output power (W)：5500
Rated output voltage：AC220/380V，AC230/400V
PV input parameter
Maximum DC input power (W)：6500
Rated DC input voltage (V)：600
Start-up voltage(V)：150
MPPT voltage range (V)：150～850
Full load MPPT voltage range (V)：195～850
Number of MPPT：2
Number of string of each MPPT inputs：1
DC input current (A)：20+20
Maximum DC short-circuit current(A)：23+23
Efficiency
MPPT efficiency：99.90%
Maximum efficiency：97.60%
Battery module parameter
Battery module energy (kWh)：4.09
Rated modular voltage(V)：102.4
Rated AC output power (W)：10000
Maximum AC output power (W)：11000
Rated output voltage：AC220/380V，AC230/400V
PV input parameter
Maximum DC input power (W)：13000
Rated DC input voltage (V)：600
Start-up voltage(V)：150
MPPT voltage range (V)：150～850
Full load MPPT voltage range (V)： 325～850
Number of MPPT：2
Number of string of each MPPT inputs：1
DC input current (A)：20+20
Maximum DC short-circuit current(A)：23+23
Efficiency
MPPT efficiency：99.90%
Maximum efficiency：97.60%
Battery module parameter
Battery module energy (kWh)：4.09
Rated modular voltage(V)：102.4
Rated AC output power (W)：15000
Maximum AC output power (W)：16500
Rated output voltage：AC220/380V，AC230/400V
PV input parameter
Maximum DC input power (W)：19500
Rated DC input voltage (V)：600
Start-up voltage(V)：150
MPPT voltage range (V)：150～850
Full load MPPT voltage range (V)： 423～850
Number of MPPT：2
Number of string of each MPPT inputs：2+1
DC input current (A)：26+20
Maximum DC short-circuit current(A)：32+23
Efficiency
MPPT efficiency：99.90%
Maximum efficiency：97.60%
Battery module parameter
Battery module energy (kWh)：4.09
Rated modular voltage(V)：102.4
Rated AC output power (W)：20000
Maximum AC output power (W)：22000
Rated output voltage：AC220/380V，AC230/400V
PV input parameter
Maximum DC input power (W)：26000
Rated DC input voltage (V)：600
Start-up voltage(V)：150
MPPT voltage range (V)：150～850
Full load MPPT voltage range (V)：500～850
Number of MPPT：2
Number of string of each MPPT inputs：2+2
DC input current (A)：26+26
Maximum DC short-circuit current(A)：32+32
Efficiency
MPPT efficiency：99.90%
Maximum efficiency：97.60%
Battery module parameter
Battery module energy (kWh)：4.09
Rated modular voltage(V)：102.4
