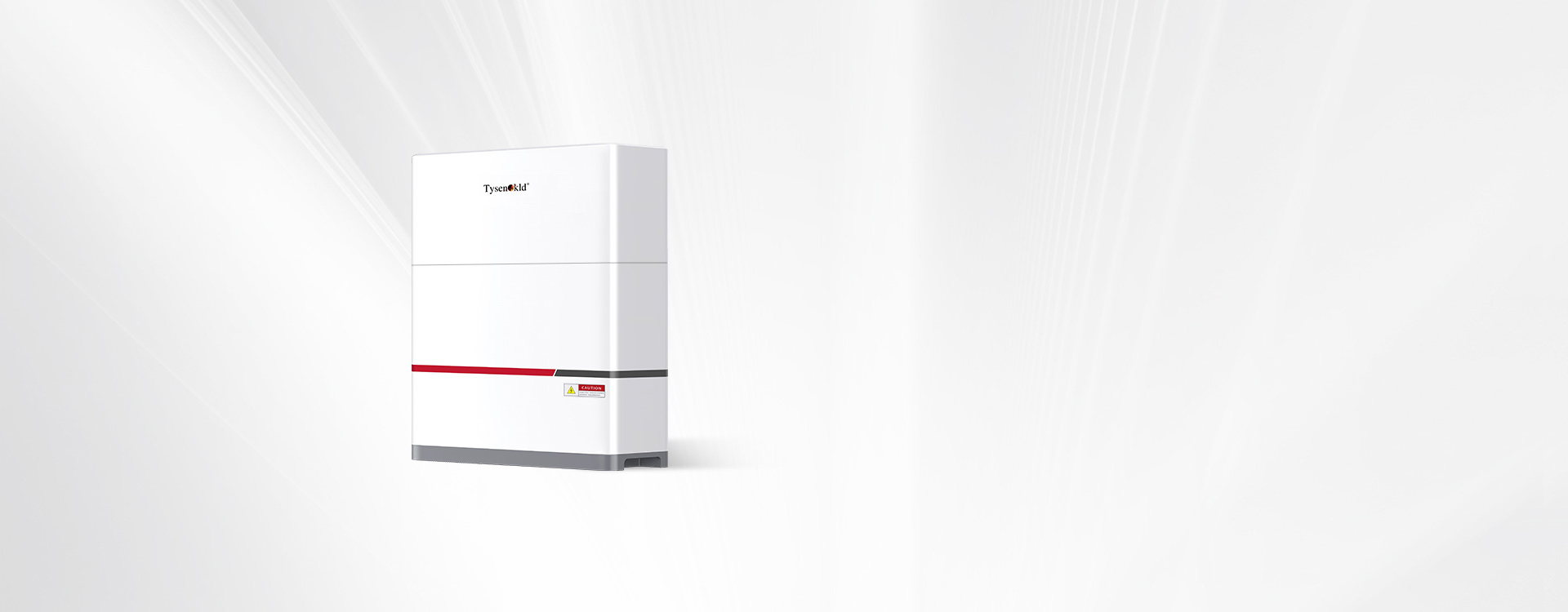

KLD-RP SERIES
INTELLIGENT ENERGY STORAGE
BATTERY SYSTEM
LOW VOLTAGE VERSION（5-30kWh）
Efficient
Reliable
Safe
KLD-RP SERIES
INTELLIGENT ENERGY STORAGE
BATTERY SYSTEM
LOW VOLTAGE VERSION（5-30kWh）
The battery capacity range of KLD-RP series intelligent energy storage battery system (low voltage version) is 5-30kWh, with standard 22V-58V low-voltage battery module and 5.12kWh single module. It adopts LiFePO4 cell technology and BMS all-round monitoring.

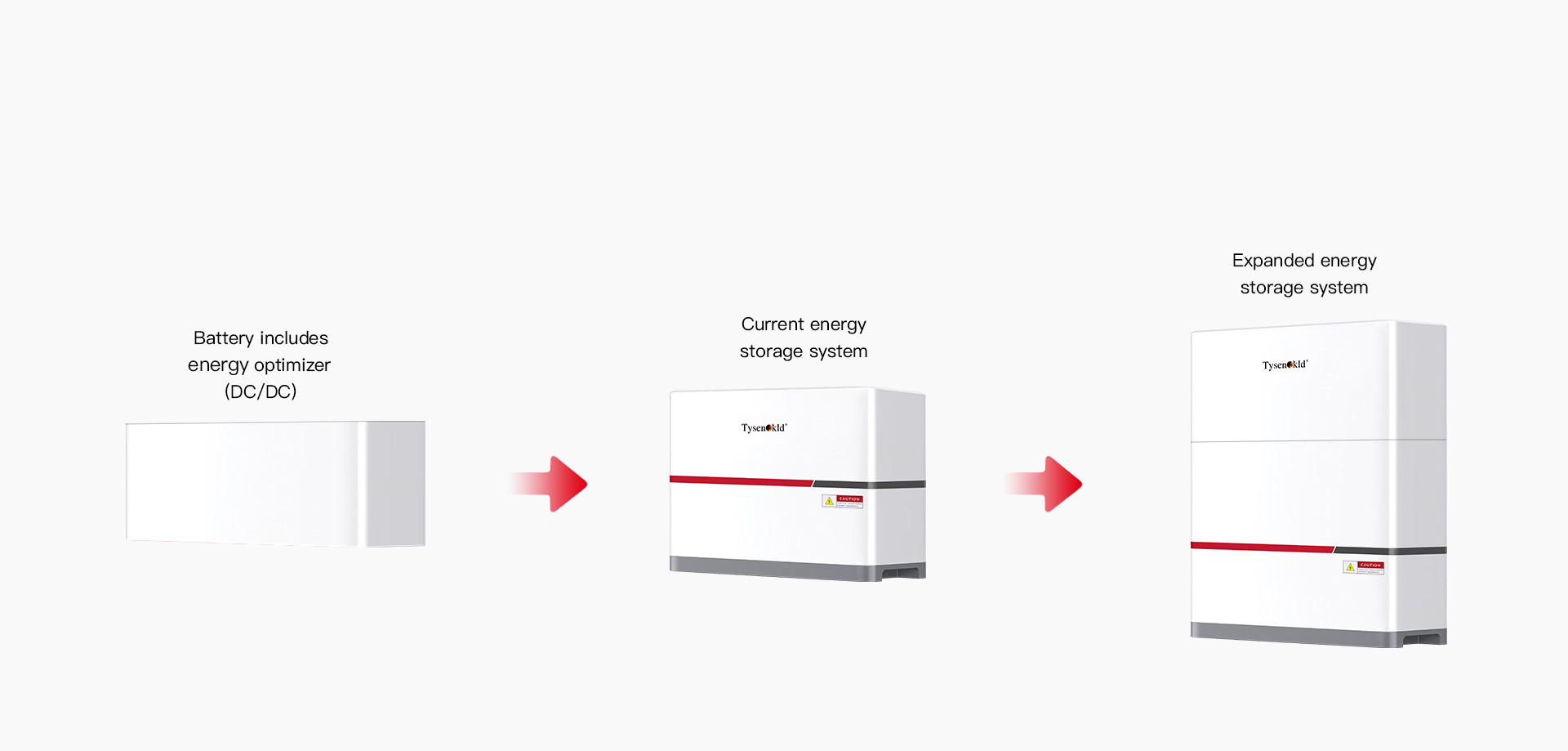

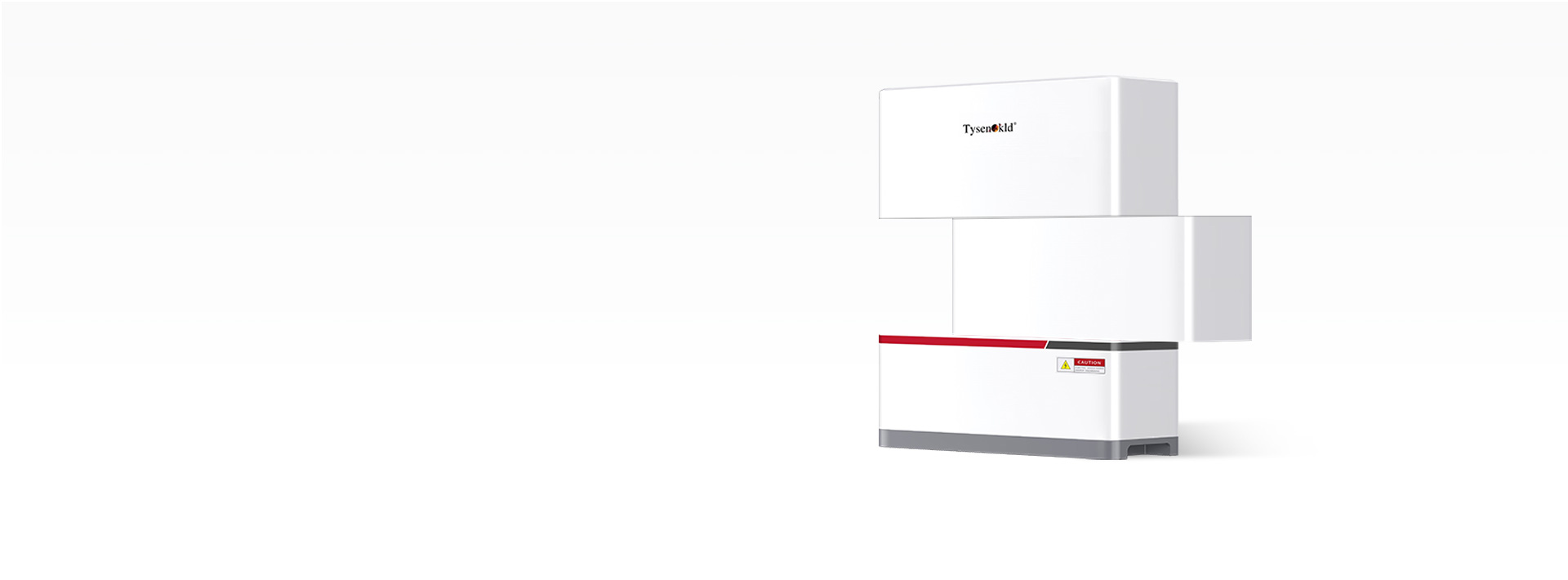

Thanks to the independent optimization of each module, it is possible to mix the use of old and new batteries flexibly. Each of the new and old modules will take full advantage of their maximum capacity.

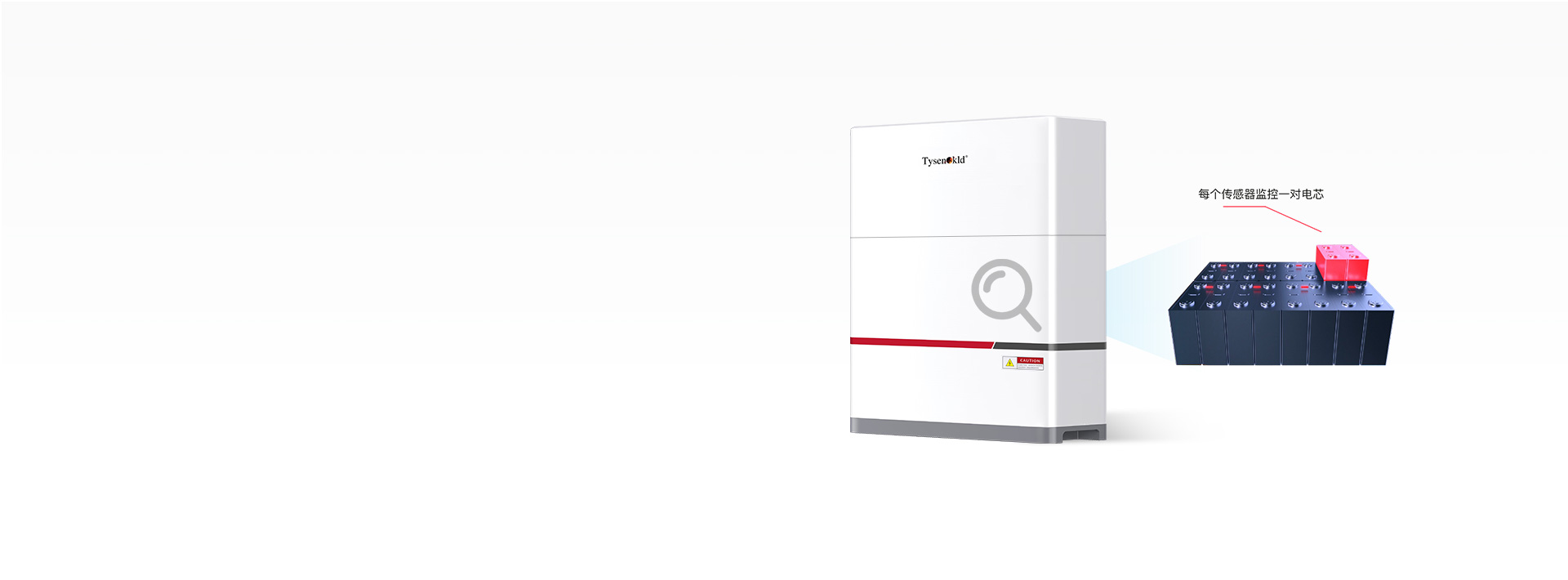

Each energy storage module of KLD-PR series intelligent energy storage battery system comes from LFP (Lithium Iron Phosphate) battery cells produced by the industry's leading manufacturers. Real-time high-precision control and management of the battery cell is operated by a number of sensors on the temperature, voltage and other key indicators.
Safety is the cornerstone of everything. Tysen-kld takes all-round safety protection measures of the energy storage from the cell, electricity, structure and emergency protection device to ensure users can operate them at ease.
| Model | KLD-RP-5kWh | KLD-RP-10kWh | KLD-RP-15kWh | KLD-RP-20kWh | KLD-RP-25kWh | KLD-RP-30kWh |
| Rated voltage | 25.6V/51.2V | 51.2V | ||||
| Operating voltage range | 22.2V~58.4V | |||||
| Rated capacity | 200Ah/100Ah | 200Ah | 300Ah | 400Ah | 500Ah | 600Ah |
| Rated electric quantity | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh |
| Maximum charging current | 100A | 100A | 150A | 200A | 250A | 300A |
| Maximum discharging current | 100A | 200A | 300A | |||
| Self-discharge rate | ≤2%/month | |||||
| Equalizing method | Passive equalizing | |||||
| Charging temperature | 0℃~+55℃ | |||||
| Discharging temperature | -20℃~+60℃ | |||||
| protection grade | IP20 | IP54 | ||||
| Communication mode | CAN/RS485 | |||||
| Altitude | ≤2000m | |||||
| Relative temperature | 5%-95% | |||||
| Status indicator lamp | LED | |||||
| DOD | 0.9 | |||||
| Life cycle | >>6000 times 80%DOD,25℃,0.5C | |||||
| Certification | UN38.3、CE、IEC62619、ROHS | |||||
Note: material download page for detailed parameter
Rated voltage：25.6V/51.2V
Operating voltage range：22.2V~58.4V
Rated capacity：200Ah/100Ah
Rated electric quantity：5.12kWh
Maximum charging current：100A
Maximum discharging current：100A
Self-discharge rate ：≤2%/month
Equalizing method：Passive equalizing
Charging temperature：0℃~+55℃
Discharging temperature：-20℃~+60℃
protection grade：IP20
Communication mode ：CAN/RS485
Altitude：≤2000m
Relative temperature：5%-95%
Status indicator lamp：LED
DOD：0.9
Life cycle：>6000Times80%DOD,25℃,0.5C
Certification：UN38.3、CE、IEC62619、ROHS
Rated voltage：51.2V
Operating voltage range：22.2V~58.4V
Rated capacity：200Ah
Rated electric quantity：10.24kWh
Maximum charging current：100A
Maximum discharging current：200A
Self-discharge rate ：≤2%/month
Equalizing method：Passive equalizing
Charging temperature：0℃~+55℃
Discharging temperature：-20℃~+60℃
protection grade：IP54
Communication mode ：CAN/RS485
Altitude：≤2000m
Relative temperature：5%-95%
Status indicator lamp：LED
DOD：0.9
Life cycle：>6000Times80%DOD,25℃,0.5C
Certification：UN38.3、CE、IEC62619、ROHS
Rated voltage：51.2V
Operating voltage range：22.2V~58.4V
Rated capacity：300Ah
Rated electric quantity：15.36kWh
Maximum charging current：150A
Maximum discharging current：300A
Self-discharge rate ：≤2%/month
Equalizing method：Passive equalizing
Charging temperature：0℃~+55℃
Discharging temperature：-20℃~+60℃
protection grade：IP54
Communication mode ：CAN/RS485
Altitude：≤2000m
Relative temperature：5%-95%
Status indicator lamp：LED
DOD：0.9
Life cycle：>6000Times80%DOD,25℃,0.5C
Certification：UN38.3、CE、IEC62619、ROHS
Rated voltage：51.2V
Operating voltage range：22.2V~58.4V
Rated capacity：400Ah
Rated electric quantity：20.48kWh
Maximum charging current：200A
Maximum discharging current：300A
Self-discharge rate ：≤2%/month
Equalizing method：Passive equalizing
Charging temperature：0℃~+55℃
Discharging temperature：-20℃~+60℃
protection grade：IP54
Communication mode ：CAN/RS485
Altitude：≤2000m
Relative temperature：5%-95%
Status indicator lamp：LED
DOD：0.9
Life cycle：>6000Times80%DOD,25℃,0.5C
Certification：UN38.3、CE、IEC62619、ROHS
Rated voltage：51.2V
Operating voltage range：22.2V~58.4V
Rated capacity：500Ah
Rated electric quantity：25.6kWh
Maximum charging current：250A
Maximum discharging current：300A
Self-discharge rate ：≤2%/month
Equalizing method：Passive equalizing
Charging temperature：0℃~+55℃
Discharging temperature：-20℃~+60℃
protection grade：IP54
Communication mode ：CAN/RS485
Altitude：≤2000m
Relative temperature：5%-95%
Status indicator lamp：LED
DOD：0.9
Life cycle：>6000Times80%DOD,25℃,0.5C
Certification：UN38.3、CE、IEC62619、ROHS
Rated voltage：51.2V
Operating voltage range：22.2V~58.4V
Rated capacity：600Ah
Rated electric quantity：30.72kWh
Maximum charging current：300A
Maximum discharging current：300A
Self-discharge rate ：≤2%/month
Equalizing method：Passive equalizing
Charging temperature：0℃~+55℃
Discharging temperature：-20℃~+60℃
protection grade：IP54
Communication mode ：CAN/RS485
Altitude：≤2000m
Relative temperature：5%-95%
Status indicator lamp：LED
DOD：0.9
Life cycle：>6000Times80%DOD,25℃,0.5C
Certification：UN38.3、CE、IEC62619、ROHS
