KLD-WP SERIES
INTELLIGENT ENERGY STORAGE
BATTERY SYSTEM
HIGH VOLTAGE VERSION（10-40kWh）
Intelligent
Efficient
Stable
KLD-WP SERIES
INTELLIGENT ENERGY STORAGE
BATTERY SYSTEM
HIGH VOLTAGE VERSION（10-40kWh）

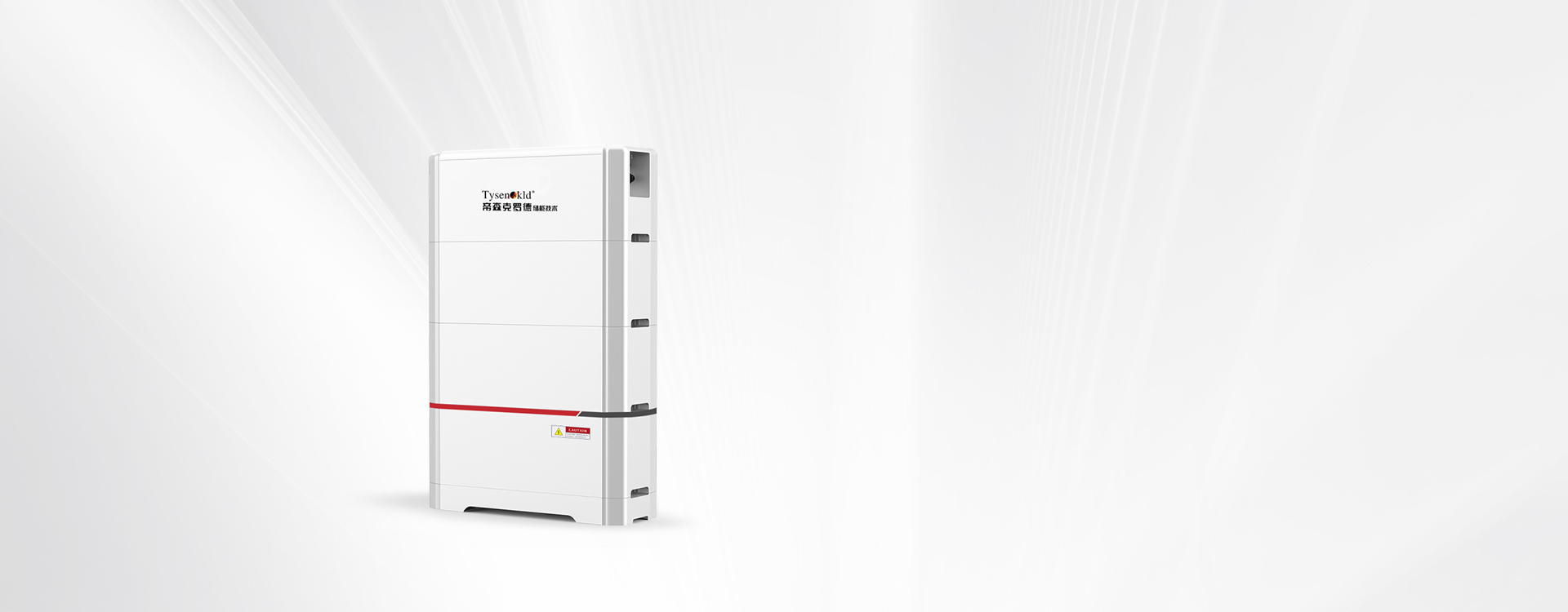

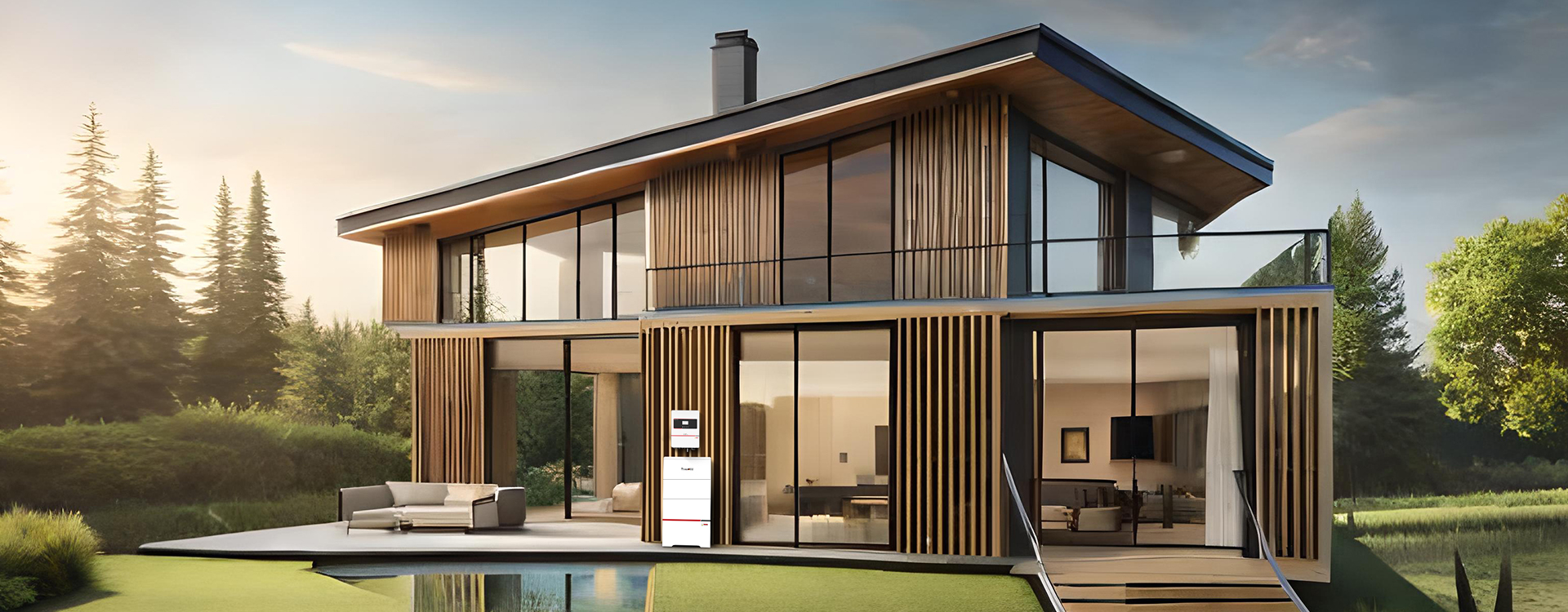

KLD-Wp series intelligent energy storage battery system (high voltage version) has high density and low loss. The battery capacity range is 10-40kWh, with 150-800V wide battery voltage range and up to 40kWh, supporting a variety of application scenarios: backup power supply, peak load shifting and arbitrage on peak-to-valley electricity price differences.

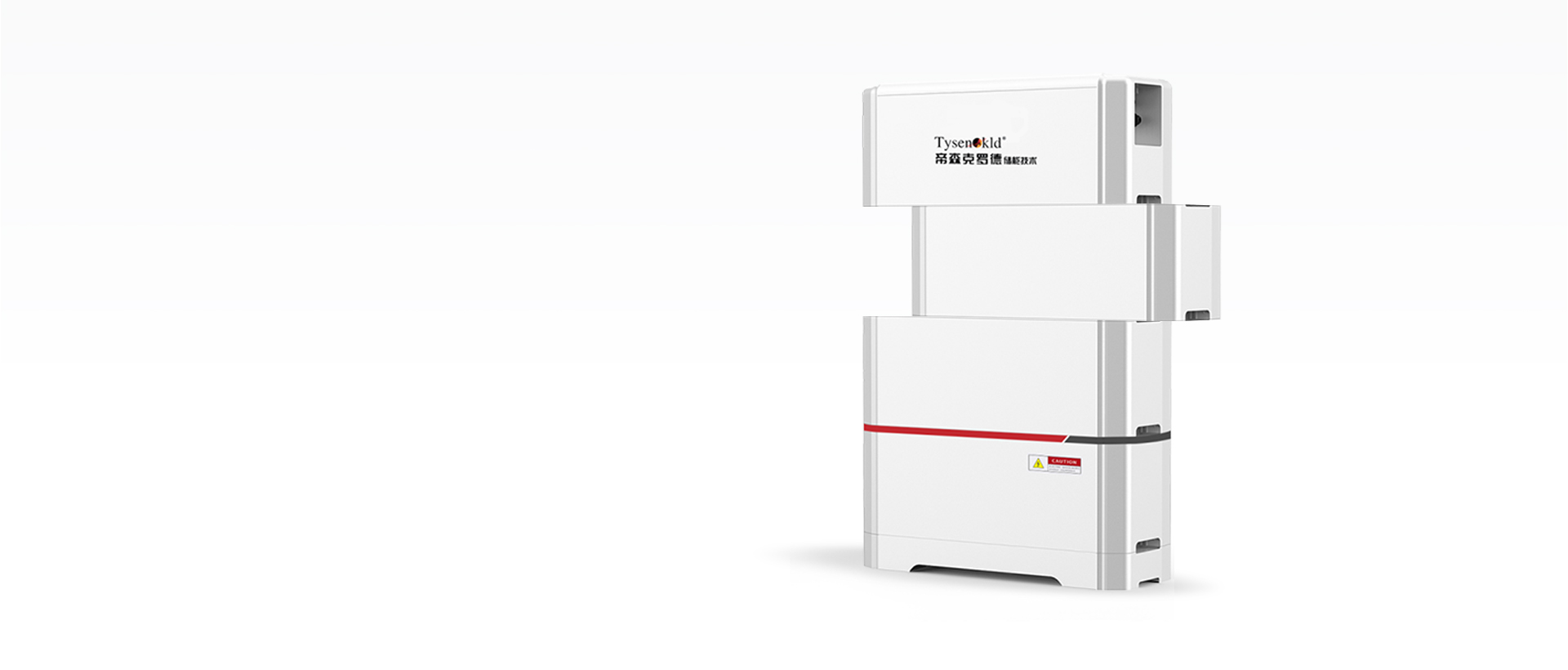

Thanks to the independent optimization of each module, it is possible to mix the use of old and new batteries flexibly. Each of the new and old modules will take full advantage of their maximum capacity.
Safety is the cornerstone of everything. Tysen-kld takes all-round safety protection measures of the energy storage from the cell, electricity, structure and emergency protection device to ensure users can operate them at ease.

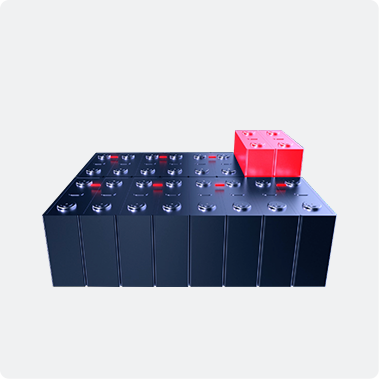

Cell protection
Electricity
protection
Structure
protection
Emergency
protection

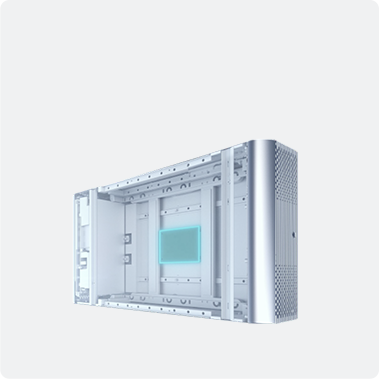

The energy storage module adopts the structural design of high strength and high melting point, which has passed the 15% hydrogen flammability test and JET overload pressure test for long-lasting durability. Dustproof and waterproof IP65 grade to use more freely.
| Model | KLD-WP-10kWh | KLD-WP-15kWh | KLD-WP-20kWh | KLD-WP-25kWh | KLD-WP-30kWh |
| Battery specification | 204.8V | 307.2V | 409.6V | 265V | 307.2V |
| 52Ah | 52Ah | 52Ah | 104Ah | 104Ah | |
| Energy（kWh） | 10.6 | 15.9 | 21.2 | 26.624 | 31.949 |
| Operating voltage range(V) | 182.4～227.2 | 273.6～340.8 | 364.8～454.4 | 191.2～266.2 | 230～319 |
| Maximum continuous charging current(A) | 40 | 50 | |||
| Maximum continuous discharging current(A) | 40 | 50 | |||
| Communication | Supports RS48S/CAN | ||||
| Operating temperature(C) | -20～55 | ||||
| Storage temperature(C) | -20～35 | ||||
| Relative humidity | 5%～95% | ||||
| protection grade | IP65 | ||||
| Cooling method | Natural Cooling | ||||
| Cell type | Lithium iron phosphate (LIFEPO4) | ||||
| Number of cycles | ≥6000 | ||||
| Installation location | Indoor/outdoor | ||||
| Installation method | Floor standing | ||||
| Altitude | ≤2000m | ||||
| Self-discharge rate | ≤2%/month | ||||
| Equalization mode | Passive equalization | ||||
| Charging/discharging protection | Yes | ||||
| Over-current protection | Yes | ||||
| Over-voltage protection | Yes | ||||
Note: material download page for detailed parameter
Battery specification：204.8V
52Ah
Energy（kWh）：10.6
Operating voltage range(V)：182.4～227.2
Maximum continuous charging current(A) ：40
Maximum continuous discharging current(A)：40
Communication：Supports RS48S/CAN
Operating temperature（℃）：-20～55
Storage temperature（℃）：-20～35
Relative humidity：5%～95%
protection grade：IP65
Cooling method ：Natural Cooling
Cell type：Lithium iron phosphate (LIFEPO4)
Number of cycles：＞6000
Installation location ：Indoor/outdoor
Installation method：Floor standing
Altitude：≤2000m
Self-discharge rate：≤2%/month
Equalization mode：Passive equalization
Charging/discharging protection：Yes
Over-current protection：Yes
Over-voltage protection：Yes
Battery specification：307.2V
52Ah
Energy（kWh）：15.9
Operating voltage range(V)：273.6～340.8
Maximum continuous charging current(A) ：40
Maximum continuous discharging current(A)：40
Communication：Supports RS48S/CAN
Operating temperature（℃）：-20～55
Storage temperature（℃）：-20～35
Relative humidity：5%～95%
protection grade：IP65
Cooling method ：Natural Cooling
Cell type：Lithium iron phosphate (LIFEPO4)
Number of cycles：＞6000
Installation location ：Indoor/outdoor
Installation method：Floor standing
Altitude：≤2000m
Self-discharge rate：≤2%/month
Equalization mode：Passive equalization
Charging/discharging protection：Yes
Over-current protection：Yes
Over-voltage protection：Yes
Battery specification：409.6V
52Ah
Energy（kWh）：21.2
Operating voltage range(V)：364.8～454.4
Maximum continuous charging current(A) ：40
Maximum continuous discharging current(A)：40
Communication：Supports RS48S/CAN
Operating temperature（℃）：-20～55
Storage temperature（℃）：-20～35
Relative humidity：5%～95%
protection grade：IP65
Cooling method ：Natural Cooling
Cell type：Lithium iron phosphate (LIFEPO4)
Number of cycles：＞6000
Installation location ：Indoor/outdoor
Installation method：Floor standing
Altitude：≤2000m
Self-discharge rate：≤2%/month
Equalization mode：Passive equalization
Charging/discharging protection：Yes
Over-current protection：Yes
Over-voltage protection：Yes
Battery specification：265V
104Ah
Energy（kWh）：26.624
Operating voltage range(V)：191.2～266.2
Maximum continuous charging current(A) ：50
Maximum continuous discharging current(A)：50
Communication：Supports RS48S/CAN
Operating temperature（℃）：-20～55
Storage temperature（℃）：-20～35
Relative humidity：5%～95%
protection grade：IP65
Cooling method ：Natural Cooling
Cell type：Lithium iron phosphate (LIFEPO4)
Number of cycles：＞6000
Installation location ：Indoor/outdoor
Installation method：Floor standing
Altitude：≤2000m
Self-discharge rate：≤2%/month
Equalization mode：Passive equalization
Charging/discharging protection：Yes
Over-current protection：Yes
Over-voltage protection：Yes
Battery specification：307.2V
104Ah
Energy（kWh）：31.949
Operating voltage range(V)：230～319
Maximum continuous charging current(A) ：50
Maximum continuous discharging current(A)：50
Communication：Supports RS48S/CAN
Operating temperature（℃）：-20～55
Storage temperature（℃）：-20～35
Relative humidity：5%～95%
protection grade：IP65
Cooling method ：Natural Cooling
Cell type：Lithium iron phosphate (LIFEPO4)
Number of cycles：＞6000
Installation location ：Indoor/outdoor
Installation method：Floor standing
Altitude：≤2000m
Self-discharge rate：≤2%/month
Equalization mode：Passive equalization
Charging/discharging protection：Yes
Over-current protection：Yes
Over-voltage protection：Yes
