KLD-PNS SERIES

PORTABLE SOLAR PV MODULE

27-200W

KLD-PNS SERIES PORTABLE SOLAR PV MODULE 27-200W

Portable Intelligent Efficient Safe

PRODUCT DESCRIPTION

KLD-PNS series portable solar PV module is an independent PV power generation system that integrates functions of charging and discharging control, inversion and energy storage. The core part of the module is the solar panel, whose main function is to convert solar energy into electricity and store it in the battery or directly supply electrical appliances. Portable solar PV module is highly integrated, and can provide clean and free energy for a variety of commonly used appliances, especially for areas without electricity or outdoor camping, etc.

PRODUCT FEATURES

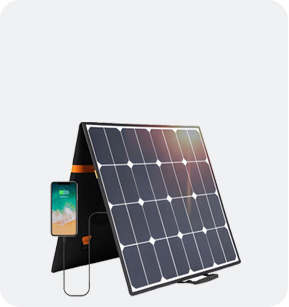

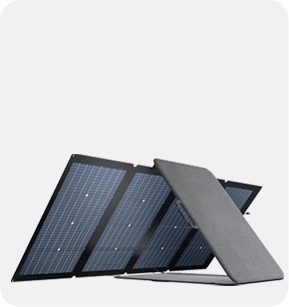

Portable and foldable


Integrated design

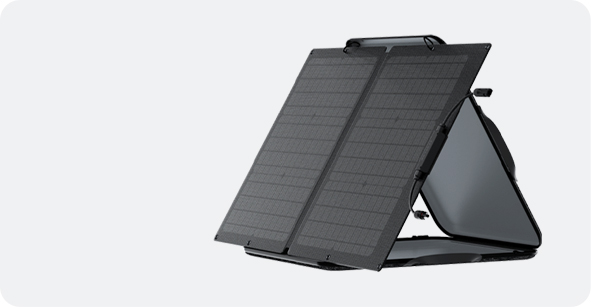

180° adjusta-
ble bracket


Quick charge


Waterproof and durable

FEARLESS OF OUTDOOR POWER OUTAGE

Portable, light and handy for traveling, which is ideal for camping and outdoor activities. It only takes a few hours to fully charge the outdoor mobile power bank and efficiently meets the needs of electricity .

OPERATIVE ON RAINY DAYS

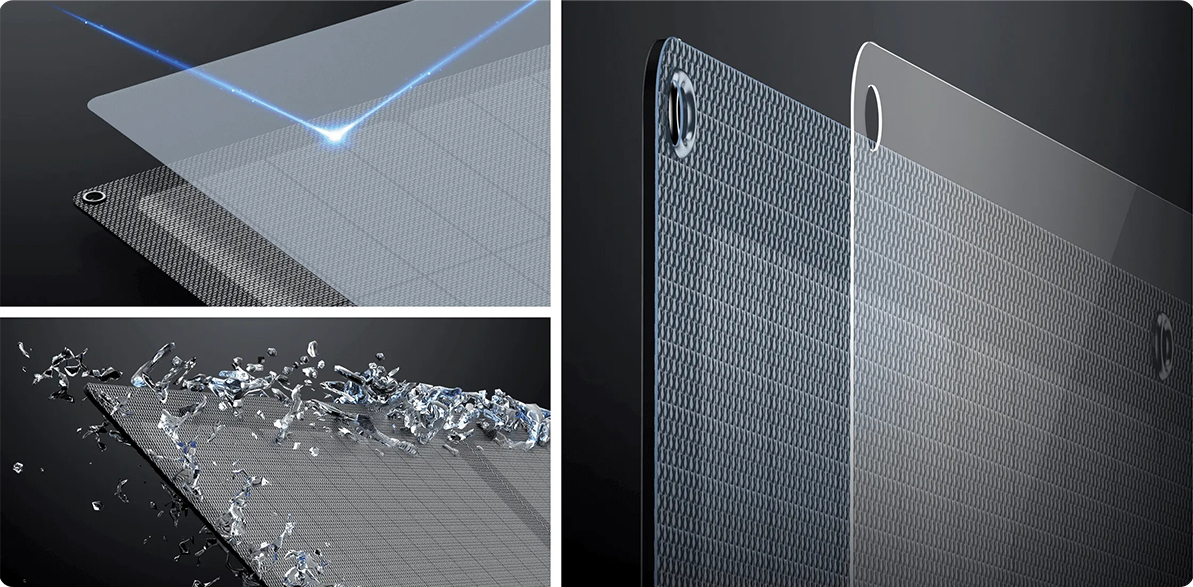

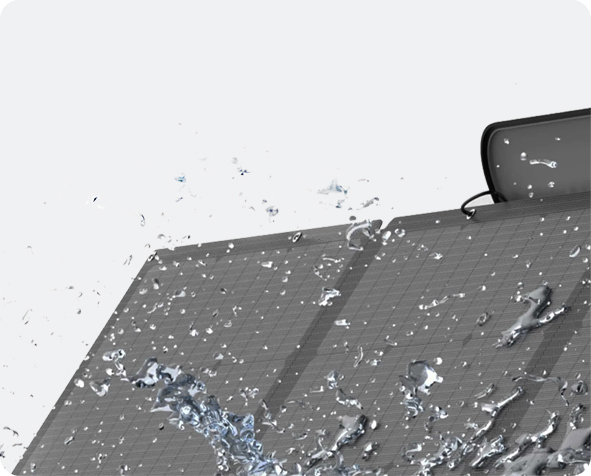

IP65 waterproof membrane protects the solar panels from dust, debris and rain. It can be used on the ground, on the roof of your house or recreational vehicle (RV)

CONTINUOUS CHARGING ENSURES OUTDOOR WIRELESS ENDURANCE

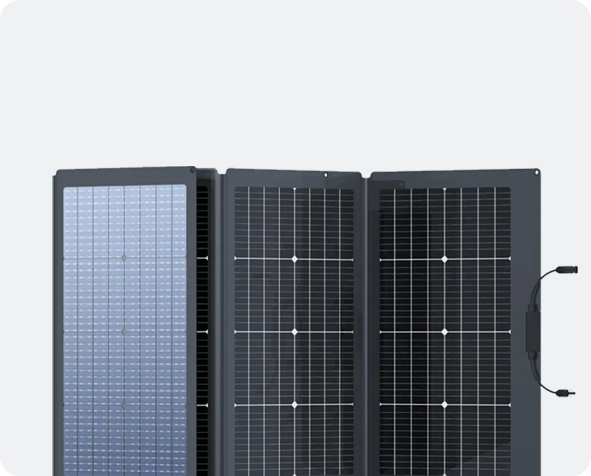

Single-crystal silicon solar module can effectively improve the output efficiency.

TECHNOLOGY PARAMETER

Model KLD-PNS27 KLD-PNS100 KLD-PNS200
Maximum power PMAX/W 27 100 200
Battery efficiency >23%
USB output current 5V3.4A/9V2.5A/12V2A MAX
TYPE-C output current 5V3A/9V2A/12V3.5A 5V3A/9V2A/12V3.5A 5V3.4A/9V2.5A/12V2A
DC output current 18V/3.5A MAX 18V/5.7A MAX 18V/11.2A MAX
Maximum system voltage 600V DC
Number of Battery 9 36 72
Protection level IP65

Note: material download page for detailed parameter

TECHNOLOGY PARAMETER

  • Maximum power PMAX/W:27

    Battery efficiency:>23%

    USB output current:5V3.4A/9V2.5A/12V2A MAX

    TYPE-C output current:5V3A/9V2A/12V3.5A

    DC output current:18V/3.5A MAX

    Maximum system voltage:600V DC

    Number of Battery:9

    Protection level:IP65

  • Maximum power PMAX/W:100

    Battery efficiency:>23%

    USB output current:5V3.4A/9V2.5A/12V2A MAX

    TYPE-C output current:5V3A/9V2A/12V3.5A

    DC output current:18V/5.7A MAX

    Maximum system voltage:600V DC

    Number of Battery:36

    Protection level:IP65

  • Maximum power PMAX/W:200

    Battery efficiency:>23%

    USB output current:5V3.4A/9V2.5A/12V2A MAX

    TYPE-C output current:5V3A/9V2A/12V3.5A

    DC output current:18V/11.2A MAX

    Maximum system voltage:600V DC

    Number of Battery:72

    Protection level:IP65
