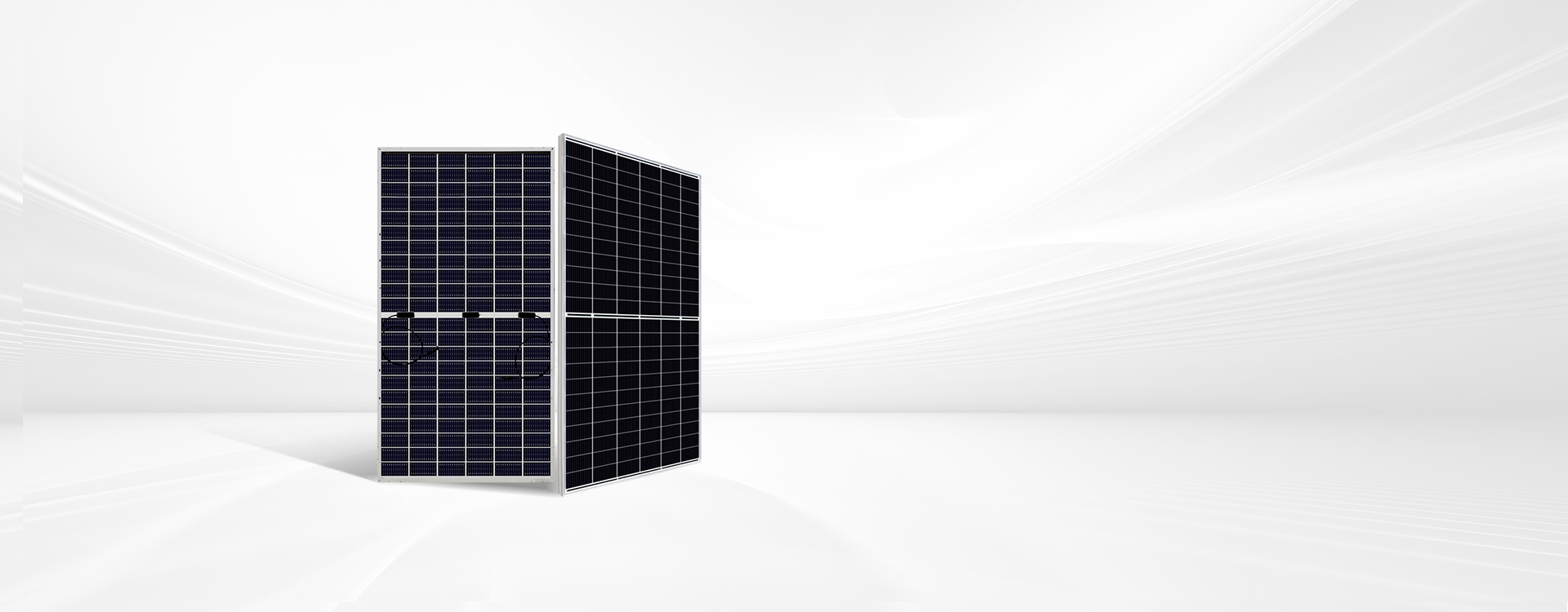

KLD-NW SERIES

BIFACIAL SOLAR ENERGY

PV MODULE（490-715W）

Safe Reliable

PRODUCT DESCRIPTION

KLD-NW series bifacial PV module can make better use of solar energy resources. Each side of the bifacial module has been specially designed to maximize the absorption rate, which can increase the efficiency by up to 20%.

PRODUCT FEATURES

Safe and Reliable

Single-crystal silicon cells with low risk of hot spots can effectively minimize the impact of power output when the panel is shaded by shadows.

Higher Power

210mm silicon wafers and 132/120 bifacial half-cut cells for higher power generation.

Higher return

Gains are increased by generating power at the both sides, higher power generation and lower system cost can reduce the levelized cost of energy.

Easy installation

N type, bifacial and 210 optional; suitable for various types of roofs; fixed and tracking type optional.

HIGHER RETURNS

Gains are increased by generating power at the both sides, higher power generation and lower system cost can reduce the levelized cost of energy.

Temperature index-0.29%/℃

Bifacial modules with up to 20% returns, higher efficiency and more power generation.

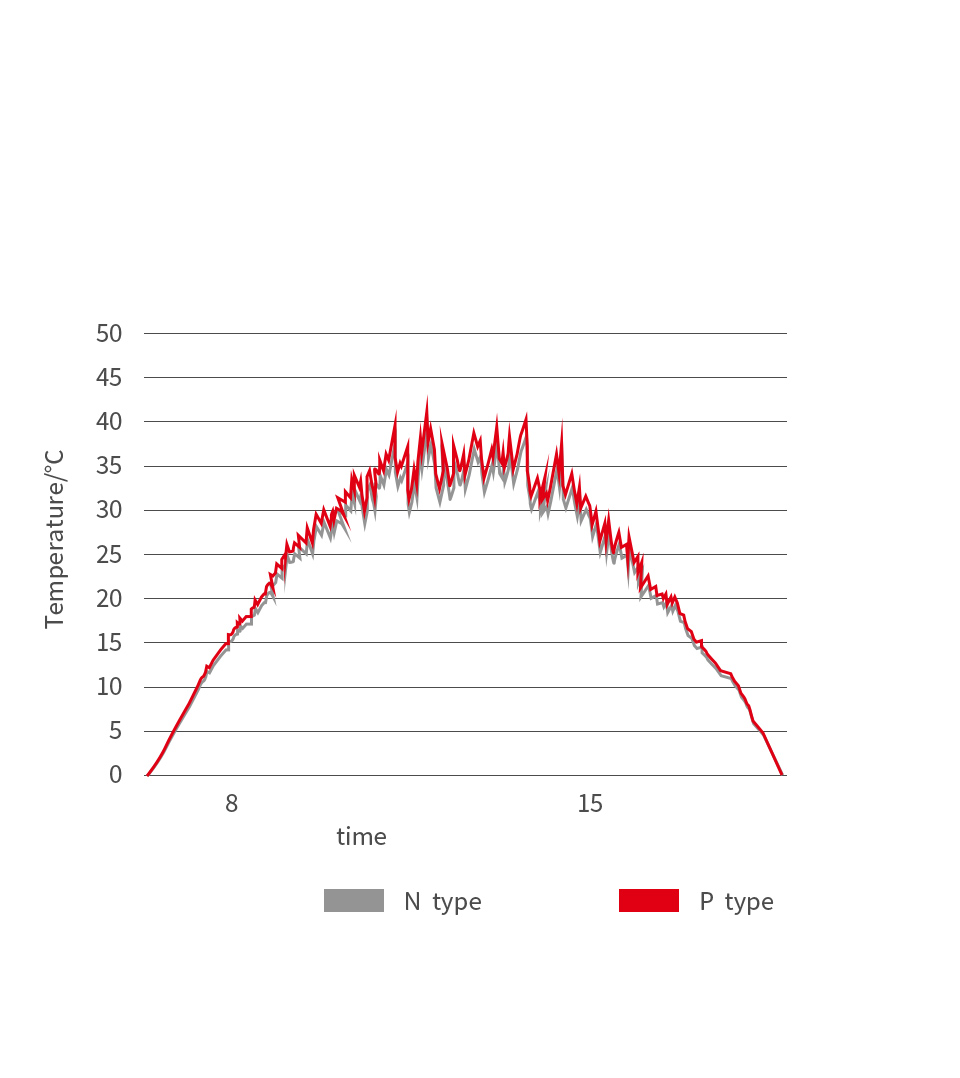

N/P module real-time ambient temperature

TECHNOLOGY PARAMETER

KLD-NW Series Bifacial 210 Module Electrical Performance Paramer

Model Maximum output power (Pmax) Optimal operative voltage（Vmp） Optimal operative current(Imp) Open circuit voltage (Voc) Short-circuit current (Isc) Module efficiency
KLD-NW580 580W 34.1V 17.02A 40.5V 18.27A 20,50%
Bifacial return increase 5% 609W 34.1V 17.87A 40.5V 19.18A 21.50%
10% 638W 34.1V 18.72A 40.5V 20.10A 22.50%
20% 696W 34.1V 20.42A 40.5V 21.92A 24.60%
KLD-NW590 590W 34.5V 17.11A 40.9V 18.37A 20.80%
Bifacial return increase 5% 620W 34.5V 17.98A 40.9V 19.29A 21.90%
10% 649W 34.5V 18.82A 40.9V 20.21A 22.90%
20% 708W 34.5V 20.53A 40.9V 22.04A 25.00%
KLD-NW600 600W 34.9V 17.20A 41.3V 18.47A 21.20%
Bifacial return increase 5% 630W 34.9V 18.06A 41.3V 19.39A 22.30%
10% 660W 34.9V 18.92A 41.3V 20.32A 23.30%
20% 720W 34.9V 20.64A 41.3V 22.16A 25.40%
KLD-NW605 605W 35.1V 17.25A 40.5V 18.52A 21.40%
Bifacial return increase 5% 635W 35.1V 18.11A 41.5V 19.45A 22.40%
10% 666W 35.1V 18.98A 41.5V 20.37A 23.50%
20% 726W 35.1V 20.07A 41.5V 22.22A 25.70%
KLD-NW610 610W 35.3V 17.29A 41.7V 18.57A 21.60%
Bifacial return increase 5% 641W 35.3V 18.15A 40.7V 19.50A 22.60%
10% 671W 35.3V 19.02A 40.7V 20.43A 23.70%
20% 732W 35.3V 20.75A 40.7V 22.28A 25.90%
KLD-NW690 690W 39.6V 17.43A 47.5V 18.39A 22.20%
Bifacial return increase 5% 725W 39.6V 18.30A 47.5V 19.31A 23.30%
10% 759W 39.6V 19.17A 47.5V 20.23A 24.40%
20% 828W 39.6V 20.92A 47.5V 22.07A 26.70%
KLD-NW700 700W 40.0V 17.51A 47.9V 18.49A 22.50%
Bifacial return increase 5% 730W 40.0V 18.39A 47.9V 19.41A 23.70%
10% 770W 40.0V 19.26A 47.9V 20.34A 24.80%
20% 840W 40.0V 21.01A 47.9V 22.19A 27.0%
TECHNOLOGY PARAMETER

KLD-NW Series Bifacial 210 Module Electrical Performance Paramer

  • Maximum output power (Pmax)：580W

    Optimal operative voltage（Vmp）：34.1V

    Optimal operative current(Imp)：17.02A

    Open circuit voltage (Voc)：40.5V

    Short-circuit current (Isc)：18.27A

    Module efficiency：20.50%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：609W

    Optimal operative voltage（Vmp）：34.1V

    Optimal operative current(Imp)：17.87A

    Open circuit voltage (Voc)：40.5V

    Short-circuit current (Isc)：19.18A

    Module efficiency：21.50%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：638W

    Optimal operative voltage（Vmp）：34.1V

    Optimal operative current(Imp)：18.72A

    Open circuit voltage (Voc)：40.5V

    Short-circuit current (Isc)：20.10A

    Module efficiency：22.50%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：696W

    Optimal operative voltage（Vmp）：34.1V

    Optimal operative current(Imp)：20.42A

    Open circuit voltage (Voc)：40.5V

    Short-circuit current (Isc)：21.92A

    Module efficiency：24.60%

  • Maximum output power (Pmax)：590W

    Optimal operative voltage（Vmp）：34.5V

    Optimal operative current(Imp)：17.11A

    Open circuit voltage (Voc)：40.9V

    Short-circuit current (Isc)：18.37A

    Module efficiency：20.80%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：620W

    Optimal operative voltage（Vmp）：34.5V

    Optimal operative current(Imp)：17.98A

    Open circuit voltage (Voc)：40.9V

    Short-circuit current (Isc)：19.29A

    Module efficiency：21.90%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：649W

    Optimal operative voltage（Vmp）：34.5V

    Optimal operative current(Imp)：18.82A

    Open circuit voltage (Voc)：40.9V

    Short-circuit current (Isc)：20.21A

    Module efficiency：22.90%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：708W

    Optimal operative voltage（Vmp）：34.5V

    Optimal operative current(Imp)：20.53A

    Open circuit voltage (Voc)：40.9V

    Short-circuit current (Isc)：22.04A

    Module efficiency：25.00%

  • Maximum output power (Pmax)：600W

    Optimal operative voltage（Vmp）：34.9V

    Optimal operative current(Imp)：18.06A

    Open circuit voltage (Voc)：41.3V

    Short-circuit current (Isc)：18.47A

    Module efficiency：21.20%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：630W

    Optimal operative voltage（Vmp）：34.9V

    Optimal operative current(Imp)：18.06A

    Open circuit voltage (Voc)：41.3V

    Short-circuit current (Isc)：19.39A

    Module efficiency：22.30%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：660W

    Optimal operative voltage（Vmp）：34.9V

    Optimal operative current(Imp)：18.92A

    Open circuit voltage (Voc)：41.3V

    Short-circuit current (Isc)：20.32A

    Module efficiency：23.30%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：720W

    Optimal operative voltage（Vmp）：34.9V

    Optimal operative current(Imp)：20.64A

    Open circuit voltage (Voc)：41.3V

    Short-circuit current (Isc)：22.16A

    Module efficiency：25.40%

  • Maximum output power (Pmax)：605W

    Optimal operative voltage（Vmp）：35.1V

    Optimal operative current(Imp)：17.25A

    Open circuit voltage (Voc)：40.5V

    Short-circuit current (Isc)：18.52A

    Module efficiency：21.40%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：635W

    Optimal operative voltage（Vmp）：35.1V

    Optimal operative current(Imp)：18.11A

    Open circuit voltage (Voc)：41.5V

    Short-circuit current (Isc)：19.45A

    Module efficiency：22.40%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：666W

    Optimal operative voltage（Vmp）：35.1V

    Optimal operative current(Imp)：18.98A

    Open circuit voltage (Voc)：41.5V

    Short-circuit current (Isc)：20.37A

    Module efficiency：23.50%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：726W

    Optimal operative voltage（Vmp）：35.1V

    Optimal operative current(Imp)：20.07A

    Open circuit voltage (Voc)：41.5V

    Short-circuit current (Isc)：22.22A

    Module efficiency：25.70%

  • Maximum output power (Pmax)：610W

    Optimal operative voltage（Vmp）：35.3V

    Optimal operative current(Imp)：17.29A

    Open circuit voltage (Voc)：41.7V

    Short-circuit current (Isc)：18.57A

    Module efficiency：21.60%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：641W

    Optimal operative voltage（Vmp）：35.3V

    Optimal operative current(Imp)：18.15A

    Open circuit voltage (Voc)：40.7V

    Short-circuit current (Isc)：19.50A

    Module efficiency：22.60%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：671W

    Optimal operative voltage（Vmp）：35.3V

    Optimal operative current(Imp)：19.02A

    Open circuit voltage (Voc)：40.7V

    Short-circuit current (Isc)：20.43A

    Module efficiency：23.70%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：732W

    Optimal operative voltage（Vmp）：35.3V

    Optimal operative current(Imp)：20.75A

    Open circuit voltage (Voc)：40.7V

    Short-circuit current (Isc)：22.28A

    Module efficiency：25.90%

  • Maximum output power (Pmax)：690W

    Optimal operative voltage（Vmp）：39.6V

    Optimal operative current(Imp)：17.43A

    Open circuit voltage (Voc)：47.5V

    Short-circuit current (Isc)：18.39A

    Module efficiency：22.20%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：725W

    Optimal operative voltage（Vmp）：39.6V

    Optimal operative current(Imp)：18.30A

    Open circuit voltage (Voc)：47.5V

    Short-circuit current (Isc)：19.31A

    Module efficiency：23.3%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：759W

    Optimal operative voltage（Vmp）：39.6V

    Optimal operative current(Imp)：19.17A

    Open circuit voltage (Voc)：47.5V

    Short-circuit current (Isc)：20.23A

    Module efficiency：24.4%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：828W

    Optimal operative voltage（Vmp）：39.6V

    Optimal operative current(Imp)：20.92A

    Open circuit voltage (Voc)：47.5V

    Short-circuit current (Isc)：22.07A

    Module efficiency：26.70%

  • Maximum output power (Pmax)：700W

    Optimal operative voltage（Vmp）：40.0V

    Optimal operative current(Imp)：17.51A

    Open circuit voltage (Voc)：47.9V

    Short-circuit current (Isc)：18.49A

    Module efficiency：22.50%

  • Bifacial return increase：5%

    Maximum output power (Pmax)：730W

    Optimal operative voltage（Vmp）：40.0V

    Optimal operative current(Imp)：18.39A

    Open circuit voltage (Voc)：47.9V

    Short-circuit current (Isc)：19.41A

    Module efficiency：23.70%

  • Bifacial return increase：10%

    Maximum output power (Pmax)：770W

    Optimal operative voltage（Vmp）：40.0V

    Optimal operative current(Imp)：19.26A

    Open circuit voltage (Voc)：47.9V

    Short-circuit current (Isc)：20.34A

    Module efficiency：24.80%

  • Bifacial return increase：20%

    Maximum output power (Pmax)：840W

    Optimal operative voltage（Vmp）：40.0V

    Optimal operative current(Imp)：21.01A

    Open circuit voltage (Voc)：47.9V

    Short-circuit current (Isc)：22.19A

    Module efficiency：27.00%
