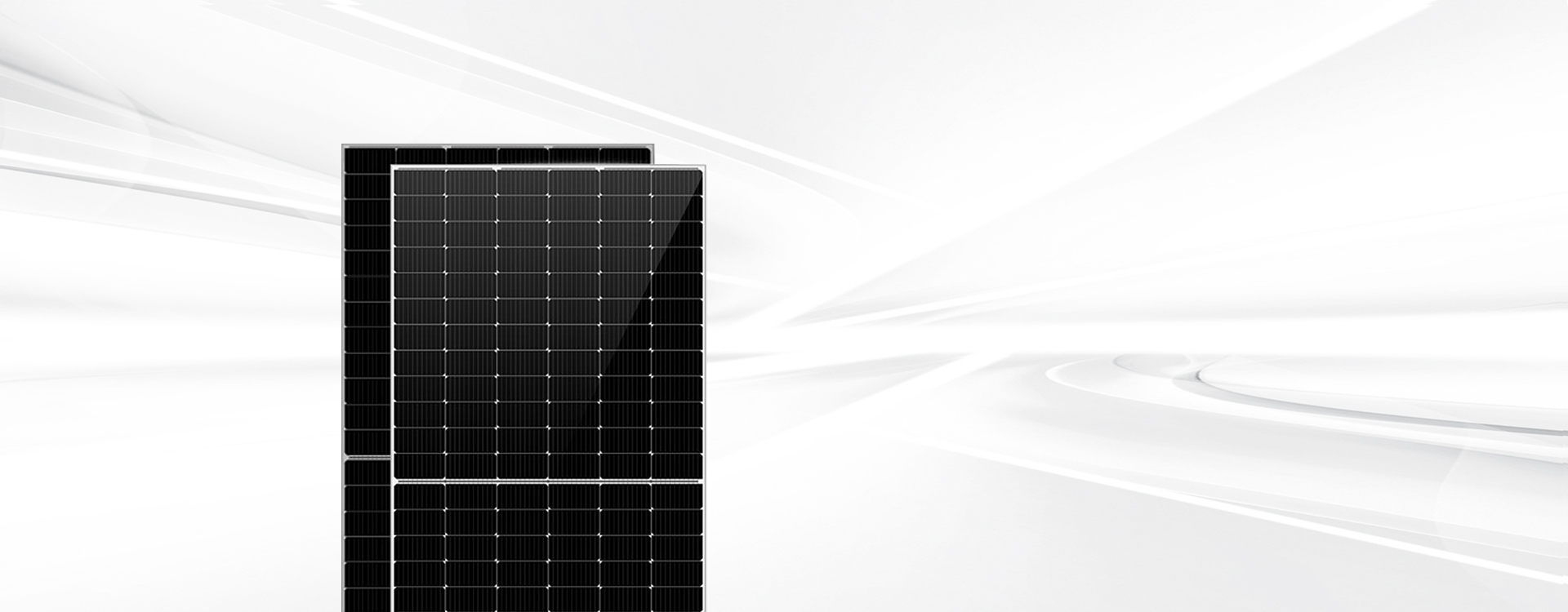

KLD-NS SERIES

SINGLE-SIDED SOLAR

PV MODULE（400-670W）

Safe Reliable

PRODUCT DESCRIPTION

KLD-NS series single-sided solar PV module can maximize the efficiency of converting solar energy into electricity. It’s easy to install, lightweight and suitable for a variety of brackets.

PRODUCT FEATURES

Safe and reliable

Single-crystal silicon cells minimize the impact of internal cracking on module reliability.

Easy installation

Small size and light weight; N-type, single-sided, 182/210 optional.

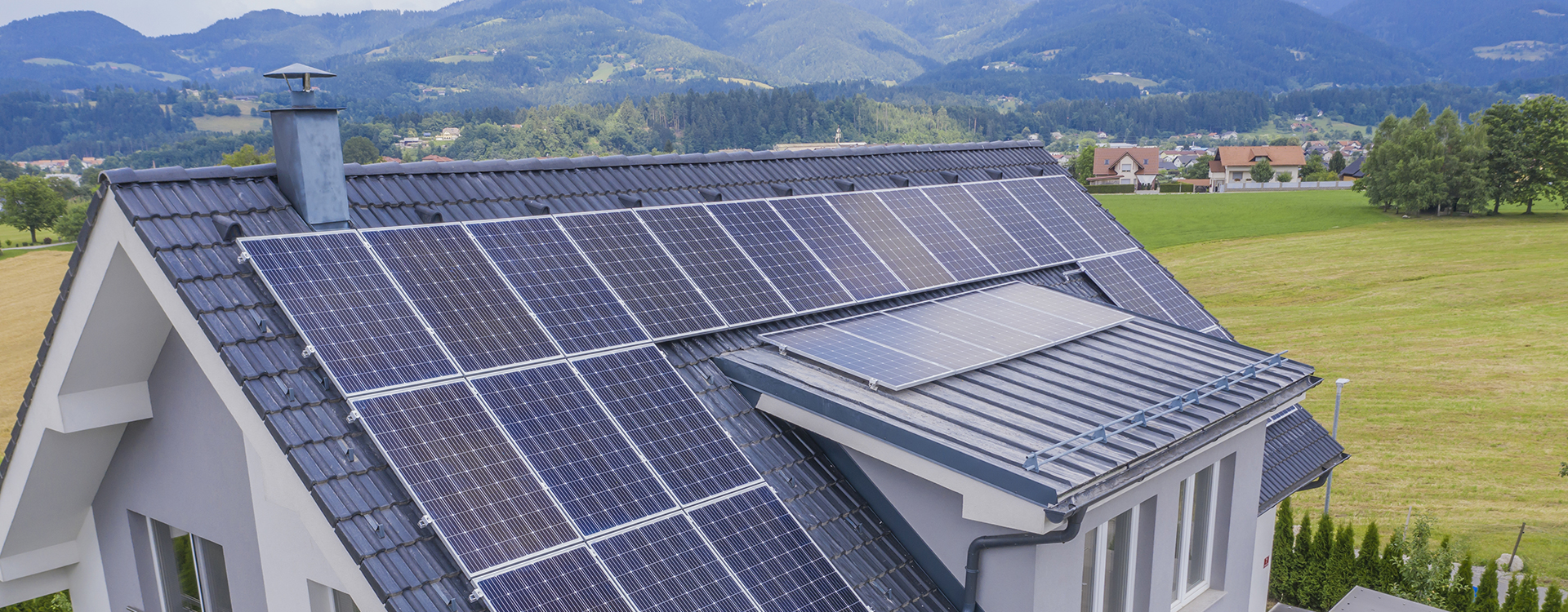

Widespread application

A full range of brackets suits a variety of roofs, fixed and tracking type optional.

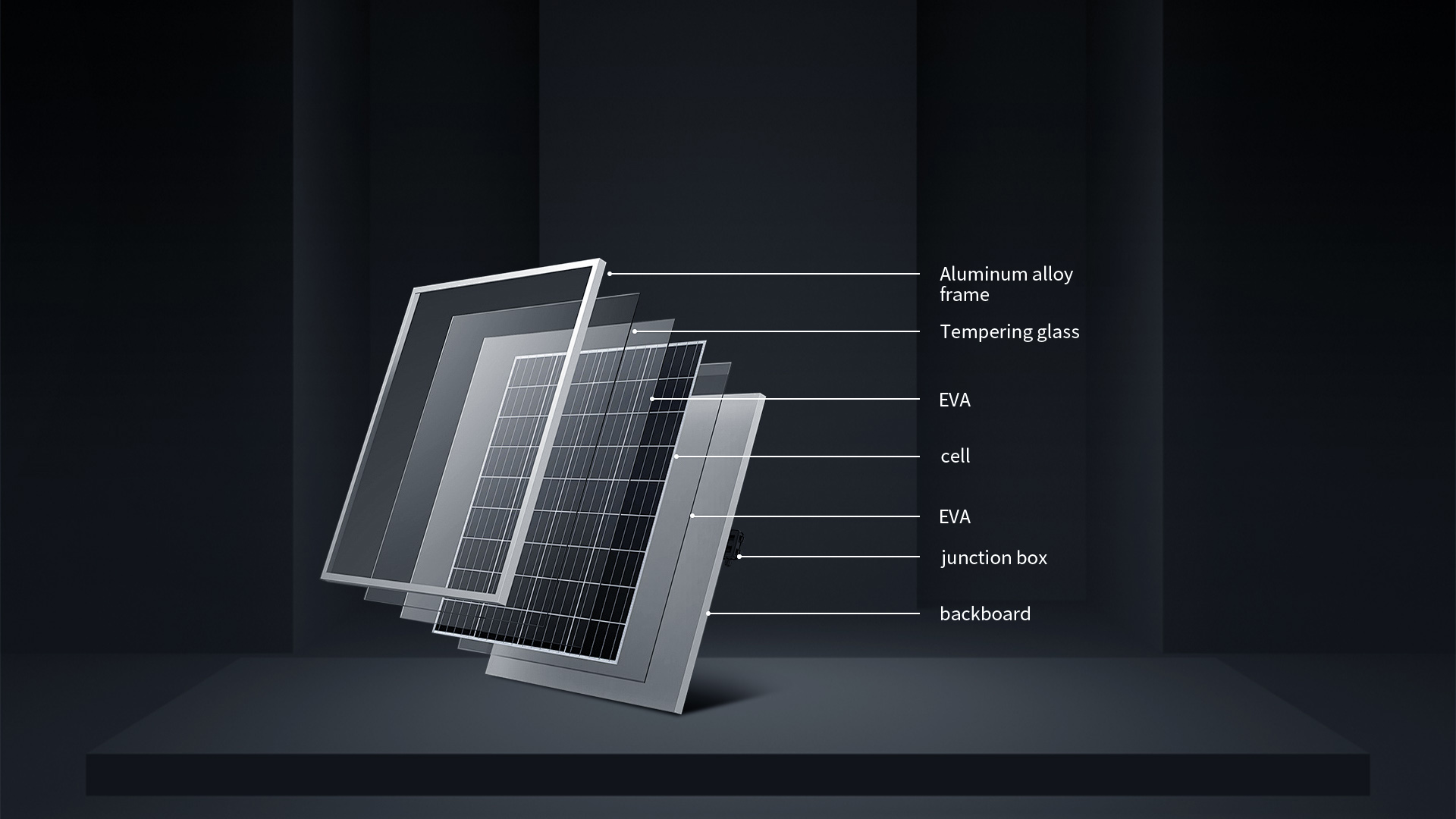

ARCHITECTURE DISPLAY

Multi-layer tempered protection prevents damage of internal components.

TEMPERATURE INDEX -0.26%/℃

N/P module real-time ambient temperature

TECHNOLOGY PARAMETER

KLD-NS series single-sided solar PV module electrical performan

Model KLD-NS410 KLD-NS550 KLD-NS580 KLD-NS600 KLD-NS690
Maximum output power(Pmax) 410W 550W 580W 600W 690W
Optimal operative voltage（Vmp） 31.06V 40.90V 42.59V 34.40V 39.60V
Optimal operative current(Imp) 13.21A 13.45A 13.62A 17.44A 17.43A
Open circuit voltage(Voc) 37.32V 49.62V 51.47V 41.50V 47.50V
Short-circuit current(Isc) 13.80A 14.03A 14.37A 18.52A 18.39A
Module efficiency 21.10% 21.50% 22.50% 21.20% 22.30%

Note: material download page for detailed parameter

TECHNOLOGY PARAMETER

KLD-NS series single-sided solar PV module electrical performan

  • Maximum output power(Pmax)：410W

    Optimal operative voltage（Vmp）：31.06V

    Optimal operative current(Imp)：13.21A

    Open circuit voltage(Voc)：37.32V

    Short-circuit current(Isc)：13.80A

    Module efficiency：21.10%

  • Maximum output power(Pmax)：550W

    Optimal operative voltage（Vmp）：40.90V

    Optimal operative current(Imp)：13.45A

    Open circuit voltage(Voc)：49.62V

    Short-circuit current(Isc)：14.03A

    Module efficiency：21.50%

  • Maximum output power(Pmax)：580W

    Optimal operative voltage（Vmp）：42.59V

    Optimal operative current(Imp)：13.62A

    Open circuit voltage(Voc)：51.47V

    Short-circuit current(Isc)：14.37A

    Module efficiency：22.50%

  • Maximum output power(Pmax)：600W

    Optimal operative voltage（Vmp）：34.40V

    Optimal operative current(Imp)：17.44A

    Open circuit voltage(Voc)：41.50V

    Short-circuit current(Isc)：18.52A

    Module efficiency：21.20%

  • Maximum output power(Pmax)：690W

    Optimal operative voltage（Vmp）：39.6V

    Optimal operative current(Imp)：17.43A

    Open circuit voltage(Voc)：47.50V

    Short-circuit current(Isc)：18.39A

    Module efficiency：22.30%
