KLD-MS SERIES
THREE-PHASE STRING
PV INVERTER（10-110kW）
Efficient
Stable
Reliable
KLD-MS SERIES
THREE-PHASE STRING
PV INVERTER（10-110kW）

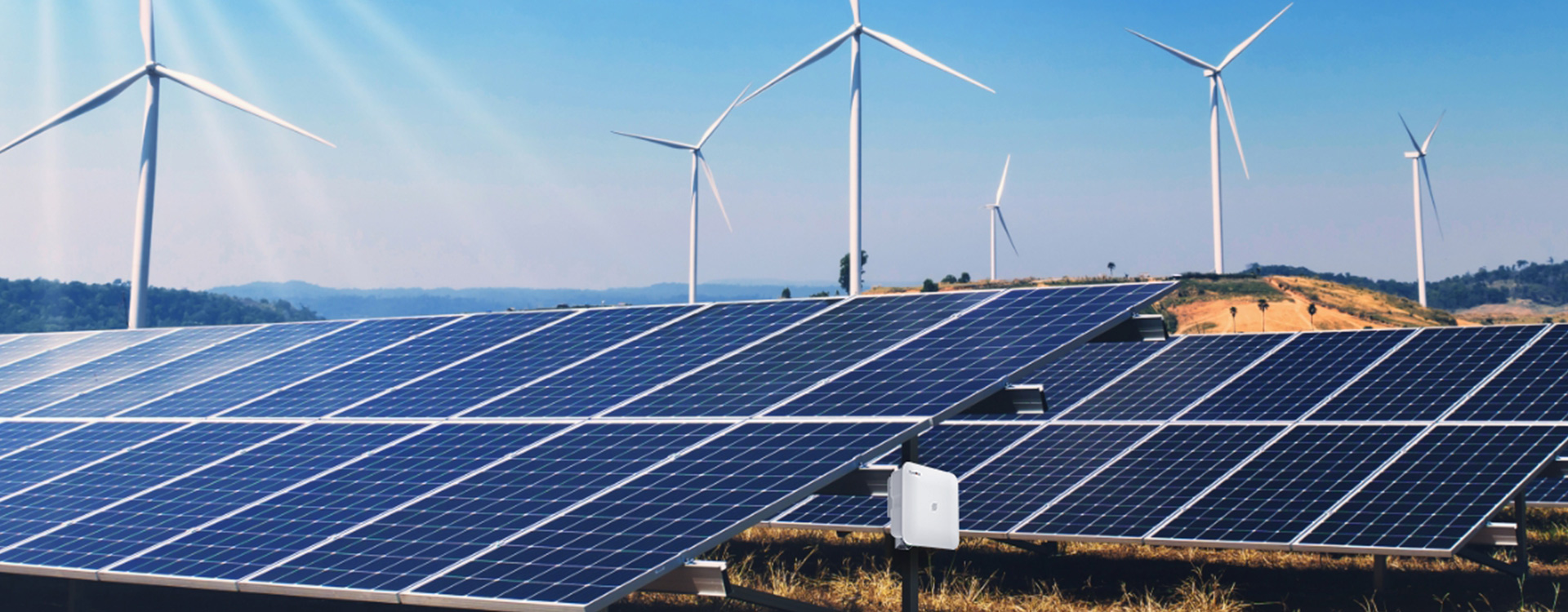

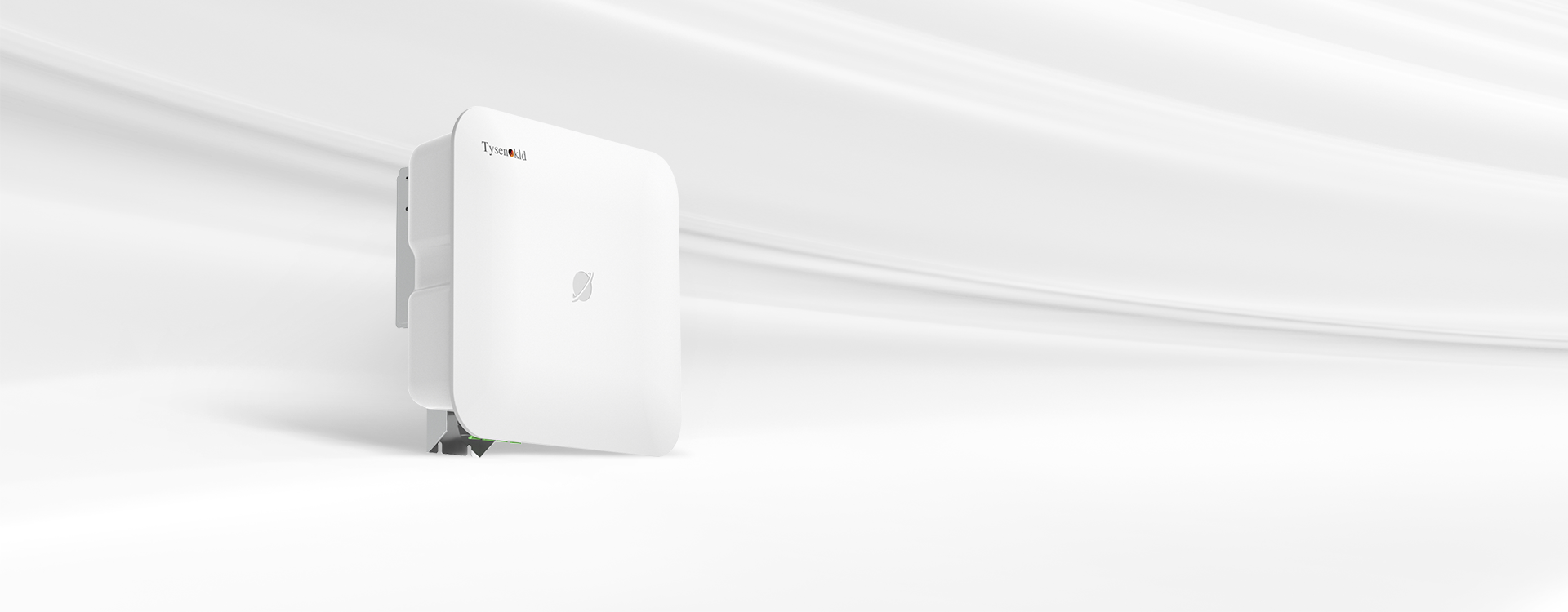

KLD-MS series three-phase string PV inverter is suitable for residence as well as small-scale industrial and commercial PV projects. The power range is 10-110kW, and the maximum single string input current is up to 40A, which |perfectly matches the high-power modules; it also has high power rationing of PV and inverters, high efficiency, wide MPPT voltage range. Its small size and light weight are convenient for installation and maintenance.

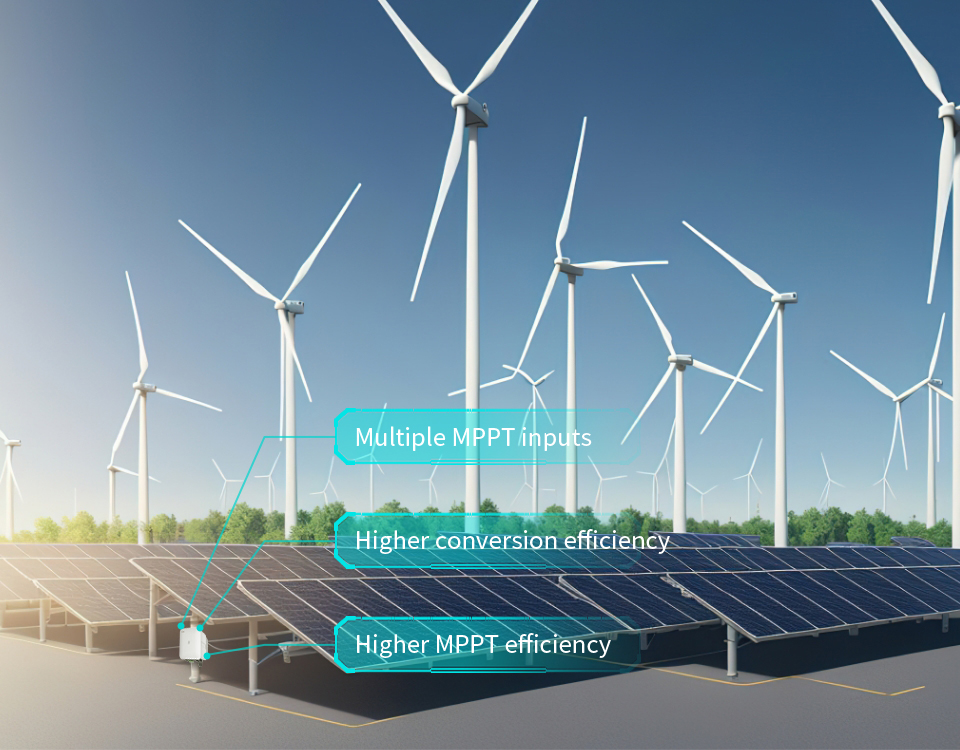

High efficiency topology structure ensures high conversion efficiency under various irradiation conditions.

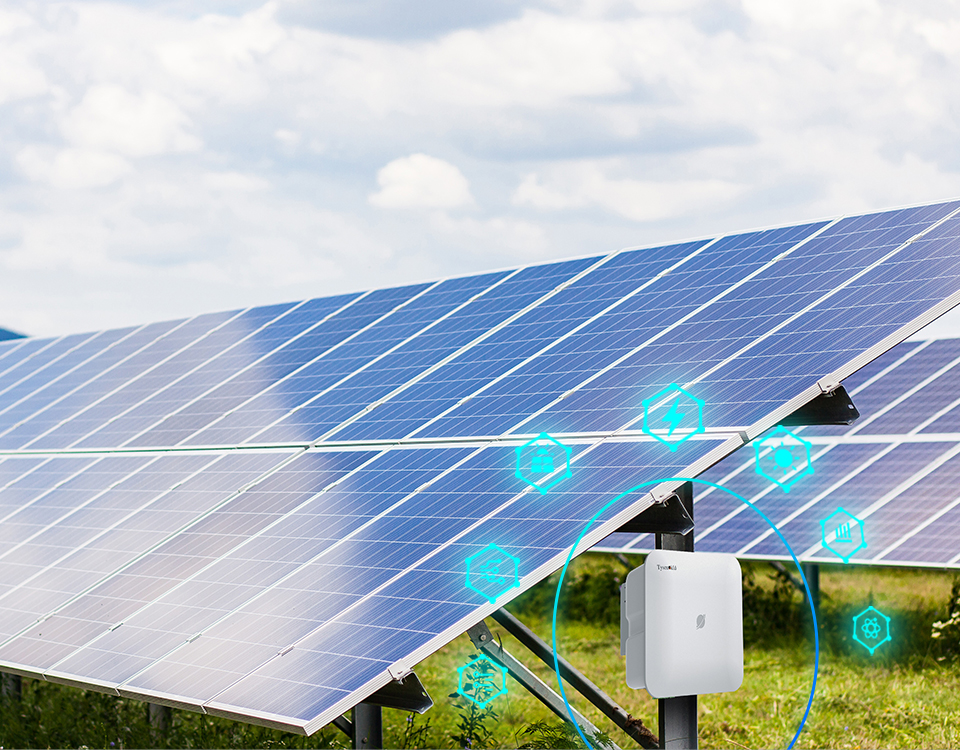

Single axis, dual axis and oblique axis can be chosen to cope with complex terrain and different weather scenarios to find the optimal tracking angle and enhance power generation efficiency.

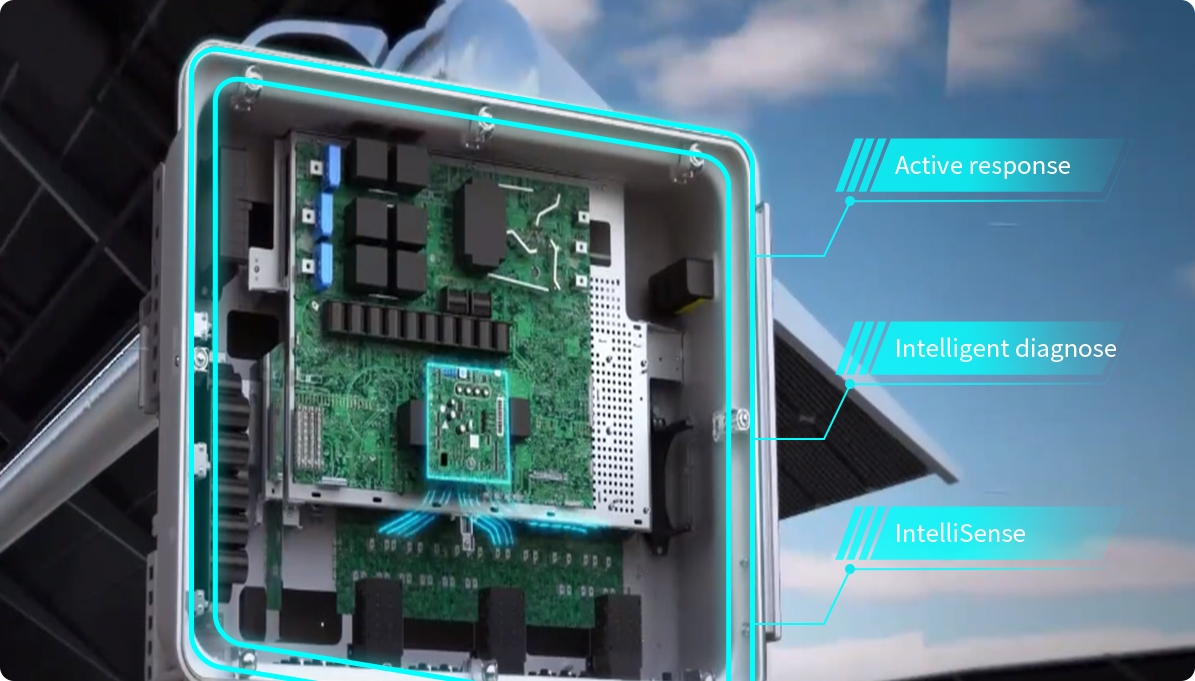

All scenarios, high-precision, active identification of DC anomalies.Rapid response in milliseconds for the safety of the DC side.
Full power operation and better power quality

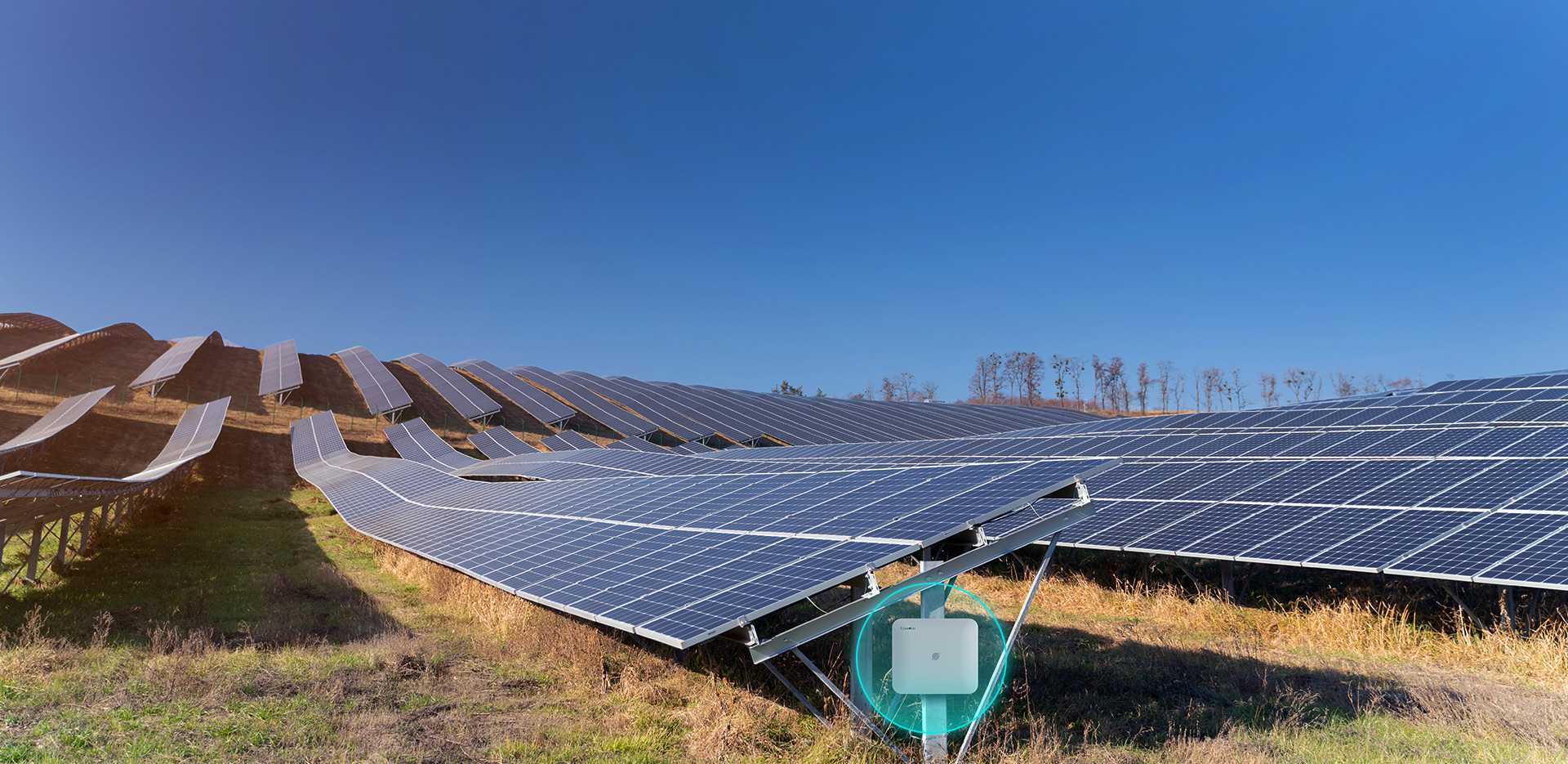

Series compensation and adaptation to weak and complex grid
High voltage ride-through does not reduce capacity output
| Model | KLD-MS10kW-3 | KLD-MS20kW-3 | KLD-MS30kW-3 | KLD-MS50kW-3 | KLD-MS60kW-3 | KLD-MS80kW-3 | KLD-MS100kW-3 | KLD-MS110kW-3 | |
| Protection grade | IP65 | ||||||||
| Input (DC) | |||||||||
| Maximum input power (W) | 15000 | 30000 | 45000 | 75000 | 90000 | 120000 | 150000 | 165000 | |
| Maximum input voltage (V) | 1100 | ||||||||
| MPPT voltage range (V) | 150-1000 | 200-1000 | |||||||
| MPPT full load voltage range (V) | 500-850 | ||||||||
| Rated input voltage ( V ) | 620 | ||||||||
| Start-up voltage ( V ) | 150 | 200 | |||||||
| Maximum input current (A) | 15*2 | 32*2 | 38*2 | 40*3 | 38*4 | 38*6 | |||
| Short-circuit current ( A ) | 25*2 | 48*2 | 48*2 | 48*3 | 48*4 | 48*6 | |||
| MPPT/ Number of DC terminals | 2/2 | 2/4 | 2/5 | 3/7 | 4/8 | 6/12 | |||
| Output (AC) | |||||||||
| Maximum output power (VA) | 11000 | 22000 | 33000 | 55000 | 66000 | 88000 | 110000 | 110000 | |
| Rated output power ( W ) | 10000 | 20000 | 30000 | 50000 | 60000 | 80000 | 100000 | 110000 | |
| Maximum output current (A) | 17 | 32 | 48 | 80 | 96 | 127 | 158 | 158 | |
| Rated voltage ( V ) | 3P+N+PE/3P+PE AC230/400 | ||||||||
| Grid voltage range | AC260V-519V (adjustable) | ||||||||
| Efficiency | |||||||||
| Maximum efficiency | 98.70% | 98.75% | 98.50% | 98.80% | 99.00% | ||||
| Chinese efficiency | 98.23% | 98.35% | 98.10% | 98.45% | 98.50% | 98.30% | 98.40% | ||
Note: material download page for detailed parameter
Protection grade：IP65
Input (DC)
Maximum input power (W)：15000
Maximum input voltage (V)：1100
MPPT voltage range (V)：150-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：150
Maximum input current (A)：15*2
Short-circuit current ( A )：25*2
MPPT/ Number of DC terminals：2/2
Output (AC)
Maximum input power (VA)：11000
Rated output power ( W )：10000
Maximum output current (A)：17
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：98.70%
Chinese efficiency：98.23%
Protection grade：IP65
Input (DC)
Maximum input power (W)：30000
Maximum input voltage (V)：1100
MPPT voltage range (V)：150-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：150
Maximum input current (A)：32*2
Short-circuit current ( A )：48*2
MPPT/ Number of DC terminals：2/4
Output (AC)
Maximum input power (VA)：22000
Rated output power ( W )：20000
Maximum output current (A)：32
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：98.75%
Chinese efficiency：98.35%
Protection grade：IP65
Input (DC)
Maximum input power (W)：45000
Maximum input voltage (V)：1100
MPPT voltage range (V)：200-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：200
Maximum input current (A)：38*2
Short-circuit current ( A )：48*2
MPPT/ Number of DC terminals：2/5
Output (AC)
Maximum input power (VA)：33000
Rated output power ( W )：30000
Maximum output current (A)：48
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：98.50%
Chinese efficiency：98.10%
Protection grade：IP65
Input (DC)
Maximum input power (W)：75000
Maximum input voltage (V)：1100
MPPT voltage range (V)：200-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：200
Maximum input current (A)：40*3
Short-circuit current ( A )：48*3
MPPT/ Number of DC terminals：3/7
Output (AC)
Maximum input power (VA)：55000
Rated output power ( W )：50000
Maximum output current (A)：80
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：98.80%
Chinese efficiency：98.45%
Protection grade：IP65
Input (DC)
Maximum input power (W)：90000
Maximum input voltage (V)：1100
MPPT voltage range (V)：200-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：200
Maximum input current (A)：38*4
Short-circuit current ( A )：48*4
MPPT/ Number of DC terminals：4/8
Output (AC)
Maximum input power (VA)：66000
Rated output power ( W )：60000
Maximum output current (A)：96
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：99.00%
Chinese efficiency：98.50%
Protection grade：IP65
Input (DC)
Maximum input power (W)：120000
Maximum input voltage (V)：1100
MPPT voltage range (V)：200-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：200
Maximum input current (A)：38*6
Short-circuit current ( A )：48*6
MPPT/ Number of DC terminals：6/12
Output (AC)
Maximum input power (VA)：88000
Rated output power ( W )：80000
Maximum output current (A)：127
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：99.00%
Chinese efficiency：98.30%
Protection grade：IP65
Input (DC)
Maximum input power (W)：150000
Maximum input voltage (V)：1100
MPPT voltage range (V)：200-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：200
Maximum input current (A)：38*6
Short-circuit current ( A )：48*6
MPPT/ Number of DC terminals：6/12
Output (AC)
Maximum input power (VA)：110000
Rated output power ( W )：100000
Maximum output current (A)：158
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：99.00%
Chinese efficiency：98.40%
Protection grade：IP65
Input (DC)
Maximum input power (W)：165000
Maximum input voltage (V)：1100
MPPT voltage range (V)：200-1000
MPPT full load voltage range (V)：500-850
Rated input voltage ( V )：620
Start-up voltage ( V ) ：200
Maximum input current (A)：38*6
Short-circuit current ( A )：48*6
MPPT/ Number of DC terminals：6/12
Output (AC)
Maximum input power (VA)：110000
Rated output power ( W )：110000
Maximum output current (A)：158
Rated voltage ( V )：3P+N+PE/3P+PE AC230/400
Grid voltage range：AC260V-519V (adjustable)
Efficiency
Maximum efficiency：99.00%
Chinese efficiency：98.40%
