KLD-MS SERIES

SINGLE-PHASE STRING

PV INVERTER（1-10kW）

Efficient Stable Reliable

PRODUCT DESCRIPTION

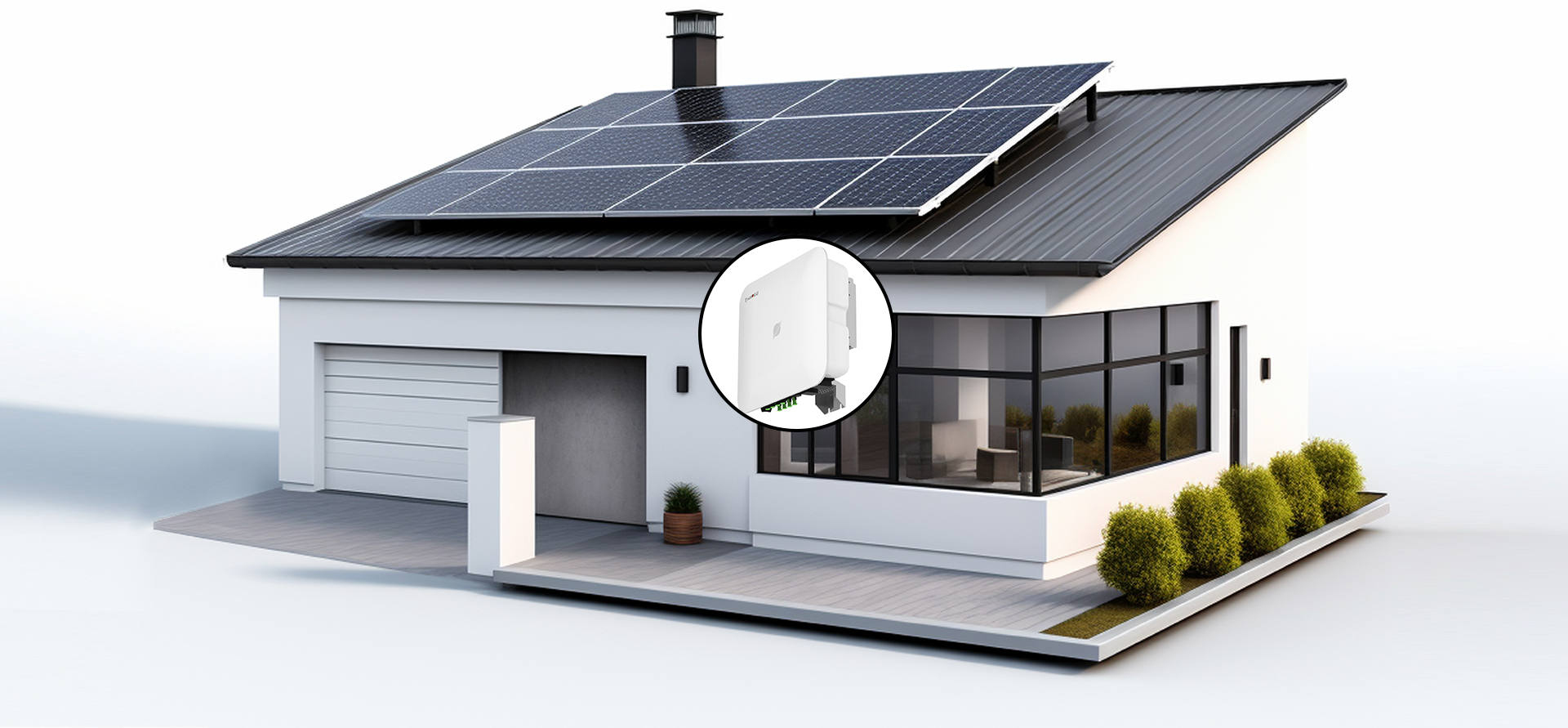

KLD-MS series single-phase string PV inverter is exclusively designed for individuals or households. The power range is 1-10kW and the single-string maximum input current is 26A. IP65 IP65 can adapt to various complicated environments, and is compatible with efficient modules and bifacial modules. Light and easy for installation.

PRODUCT FEATURES

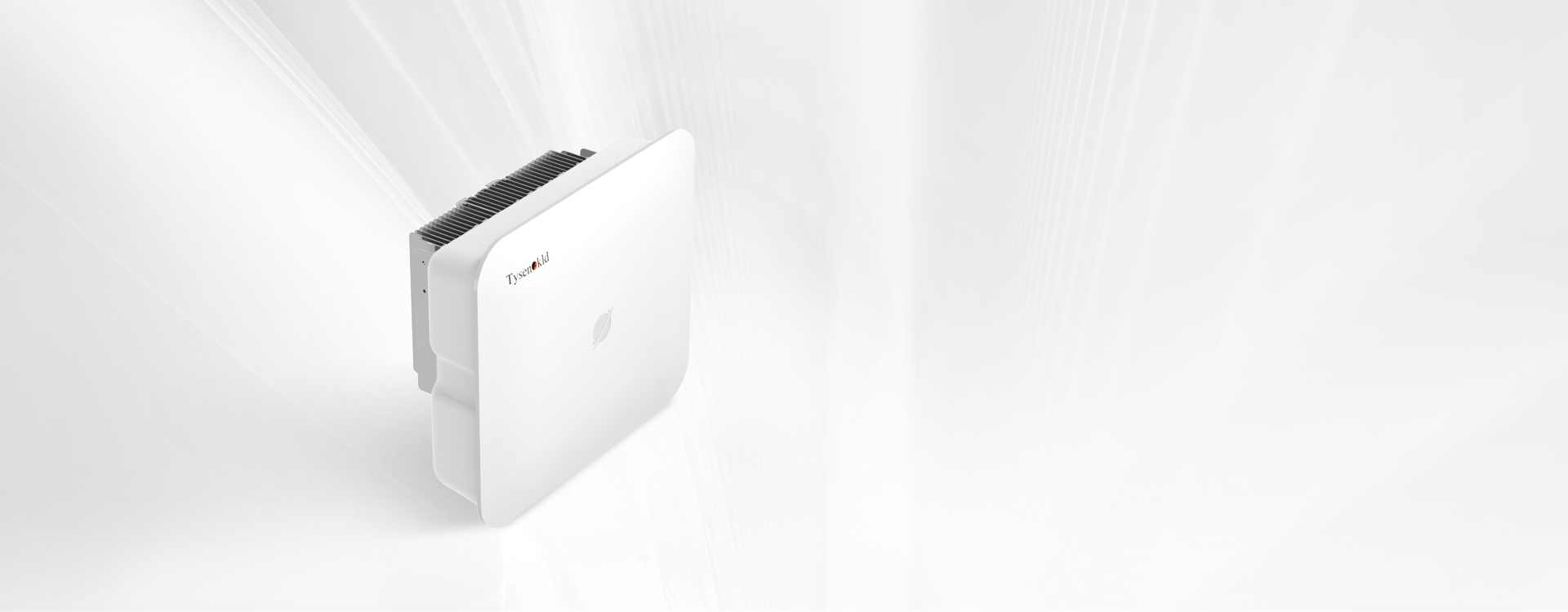

Portable and light
High protection grade
Flexible communication
High efficiency
Long life cycle

High protection

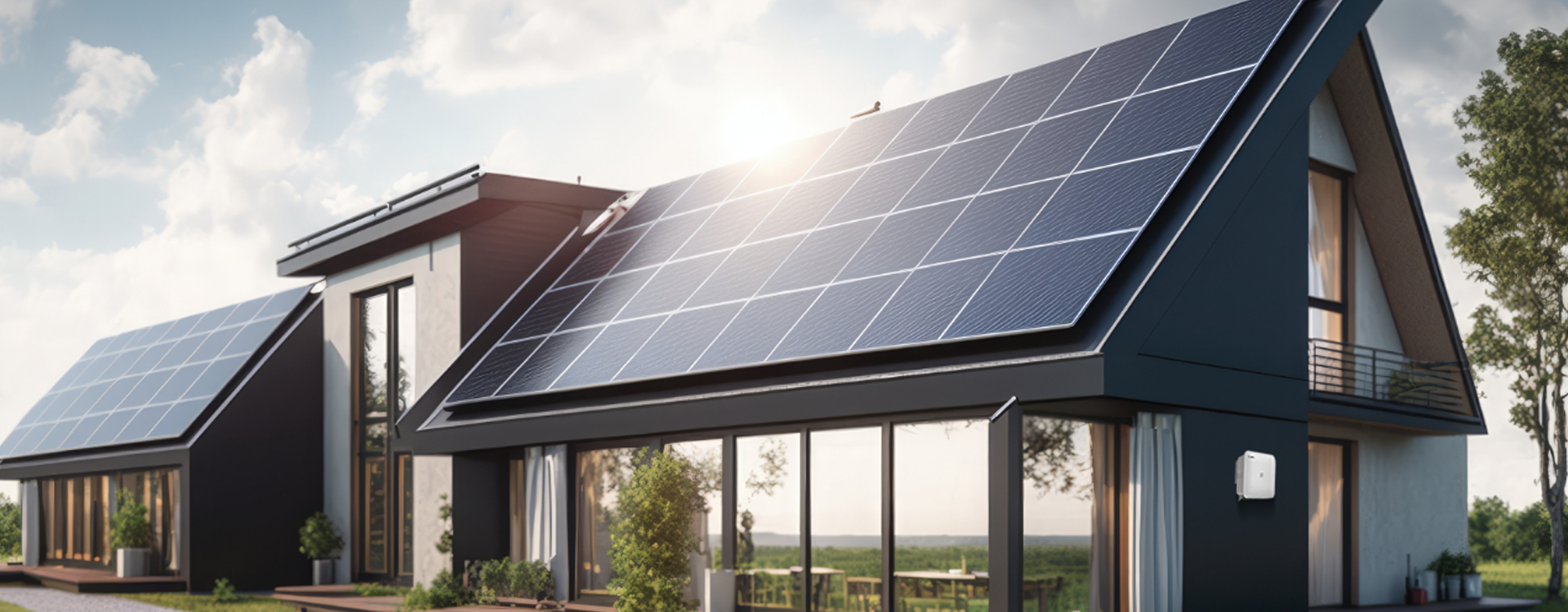

IP65 protection grade supports outdoor installation

FLEXIBLE COMMUNICATION

Support RS485/WiFi/wired Ethernet/GPRS

TECHNOLOGY PARAMETER

Model KLD-MS1kW-1 KLD-MS3kW-1 KLD-MS5kW-1 KLD-MS6kW-1 KLD-MS8kW-1 KLD-MS10kW-1
protection grade IP65
Input (DC)
Maximum input power ( W ) 1500 4500 7000 8400 11200 14000
Maximum input voltage ( V ) 500 600
MPPT voltage range ( V ) 50-500 70-500
MPPT full load voltage range ( V ) 70-500 110-550 180-550 220-550
Rated input voltage ( V ) 360
Start-up voltage ( V ) 50 70
Maximum input current( A ) 14 14+14 14+26 26+26
Short-circuit current ( A ) 18 18+18 18+35 35+35
MPPT/Number of DC terminals 1/1 2/2 2/3 2/4
Output (AC)
Maximum output power ( VA ) 1100 3300 5500 6600 8800 11000
Rated output power( W ) 1000 3000 5000 6000 8000 10000
Maximum output current ( A ) 6 15 24 28.7 38.3 50
Rated voltage ( V ) L/N/PE, AC220V,AC230V,AC240V
Grid voltage range 180VAC-276VAC (adjustable)

Note: material download page for detailed parameter

TECHNOLOGY PARAMETER

  • Protection grade：IP65

    Input (DC)

    Maximum input power ( W )：1500

    Maximum input voltage ( V ) ：500

    MPPT voltage range ( V )：50-500

    MPPT full load voltage range ( V )：70-500

    Rated input voltage ( V )：360

    Start-up voltage ( V ) ：50

    Maximum input current( A ) ：14

    Short-circuit current ( A )：18

    MPPT/Number of DC terminals：1/1

    Output (AC)

    Maximum output power ( VA )：1100

    Rated output power ( W )：1000

    Maximum output current ( A )：6

    Rated voltage ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Grid voltage range：AC180V-276V(adjustable)

  • Protection grade：IP65

    Input (DC)

    Maximum input power ( W )：4500

    Maximum input voltage ( V ) ：600

    MPPT voltage range ( V )：70-500

    MPPT full load voltage range ( V )：110-550

    Rated input voltage ( V )：360

    Start-up voltage ( V ) ：70

    Maximum input current( A ) ：14+14

    Short-circuit current ( A )：18+18

    MPPT/Number of DC terminals：2/2

    Output (AC)

    Maximum output power ( VA )：3300

    Rated output power ( W )：3000

    Maximum output current ( A )：15

    Rated voltage ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Grid voltage range：AC180V-276V(adjustable)

  • Protection grade：IP65

    Input (DC)

    Maximum input power ( W )：7000

    Maximum input voltage ( V ) ：600

    MPPT voltage range ( V )：70-500

    MPPT full load voltage range ( V )：180-550

    Rated input voltage ( V )：360

    Start-up voltage ( V ) ：70

    Maximum input current( A ) ：14+14

    Short-circuit current ( A )：18+18

    MPPT/Number of DC terminals：2/2

    Output (AC)

    Maximum output power( VA )：5500

    Rated output power ( W )：5000

    Maximum output current ( A )：24

    Rated voltage ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Grid voltage range：AC180V-276V(adjustable)

  • Protection grade：IP65

    Input (DC)

    Maximum input power ( W )：8400

    Maximum input voltage ( V ) ：600

    MPPT voltage range ( V )：70-500

    MPPT full load voltage range ( V )：220-550

    Rated input voltage ( V )：360

    Start-up voltage ( V ) ：70

    Maximum input current( A ) ：14+14

    Short-circuit current ( A )：18+18

    MPPT/Number of DC terminals：2/2

    Output (AC)

    Maximum output power ( VA )：6600

    Rated output power ( W )：6300

    Maximum output current ( A )：28.7

    Rated voltage ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Grid voltage range：AC180V-276V(adjustable)

  • Protection grade：IP65

    Input (DC)

    Maximum input power ( W )：11200

    Maximum input voltage ( V ) ：600

    MPPT voltage range ( V )：70-500

    MPPT full load voltage range ( V )：220-550

    Rated input voltage ( V )：360

    Start-up voltage ( V ) ：70

    Maximum input current( A ) ：14+26

    Short-circuit current ( A )：18+35

    MPPT/Number of DC terminals：2/3

    Output (AC)

    Maximum output power ( VA )：8800

    Rated output power ( W )：8000

    Maximum output current ( A )：38.3

    Rated voltage ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Grid voltage range：AC180V-276V(adjustable)

  • Protection grade：IP65

    Input (DC)

    Maximum input power ( W )：14000

    Maximum input voltage ( V ) ：600

    MPPT voltage range ( V )：70-500

    MPPT full load voltage range ( V )：220-550

    Rated input voltage ( V )：360

    Start-up voltage ( V ) ：70

    Maximum input current( A ) ：26+26

    Short-circuit current ( A )：35+35

    MPPT/Number of DC terminals：2/4

    Output (AC)

    Maximum output power ( VA )：11000

    Rated output power ( W )：10000

    Maximum output current ( A )：50

    Rated voltage ( V ) ：L/N/PE, AC220V,AC230V,AC240V

    Grid voltage range：AC180V-276V(adjustable)
