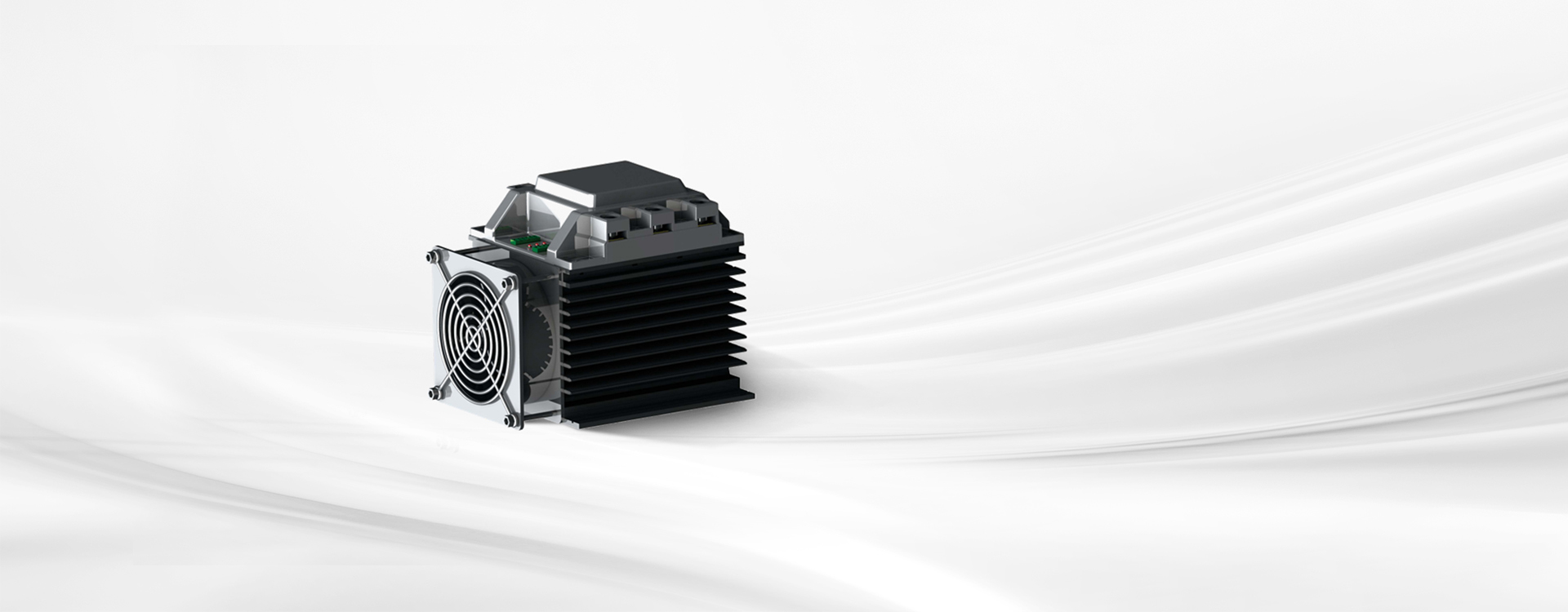

KLD-TSC Series
Thyristor Switch
Thyristor switching switch can respond in real time to the rapidly changing reactive power demand, and the zero-crossing switching function protects the compensation components.
There are many equipments with rapid and frequent load changes in the industry. However, AC contactors can not meet the immediate needs of the reactive power switching of the system, thus thyristor fast compensation switching device that adopts the operational concept of "zero-crossing switching" can be applied, which can realize the fast switching without inrush current and arcing to reduce the interferece of inductive reactive power on the power grid.
KLD-TSC series thyristor switch is characterized by no mechanical wear and tear and no noise during operation, and has the advantage of practically no transient process. It means that the equipment has the smallest delay for power factor improvement and the control system ensures the capacitor banks of all segments switch on or off in the shortest time of only one cycle.
It is mainly applied to fast and frequent changes in reactive power, and scenarios with inrush current limit and voltage fluctuations. The product has built-in thermal protection, and LED indicators for switching display.

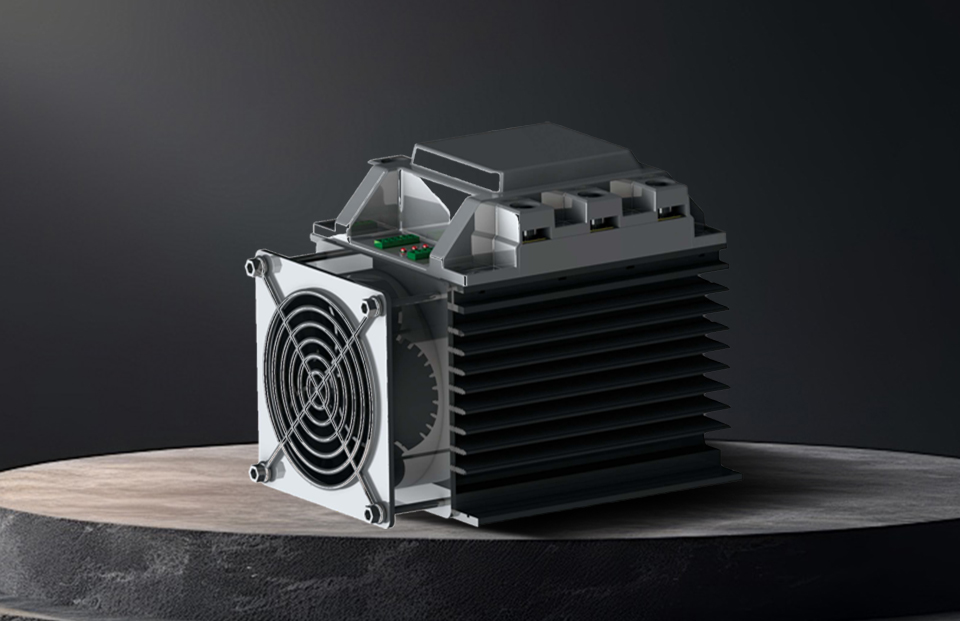

No inrush current for zero-crossing switching, built-in over-temperature protection, frequent switching, no noise, integrated and convenient installation, fully sturdy and durable cast structure, automatic start/stop built-in cooling fan, display of the switching status by LED indicator.
Integrated assembly, small size, easy for installation, maintaineance and replacement.
Zero-crossing switching mode avoids the impact of surge on the system, realizing fast and frequent switching in 1-20ms.
LED indicates the switching status and visualizes the operation status.
Built-in over-temperature protection function, and it automatically cuts off when the temperature exceeds 80℃.

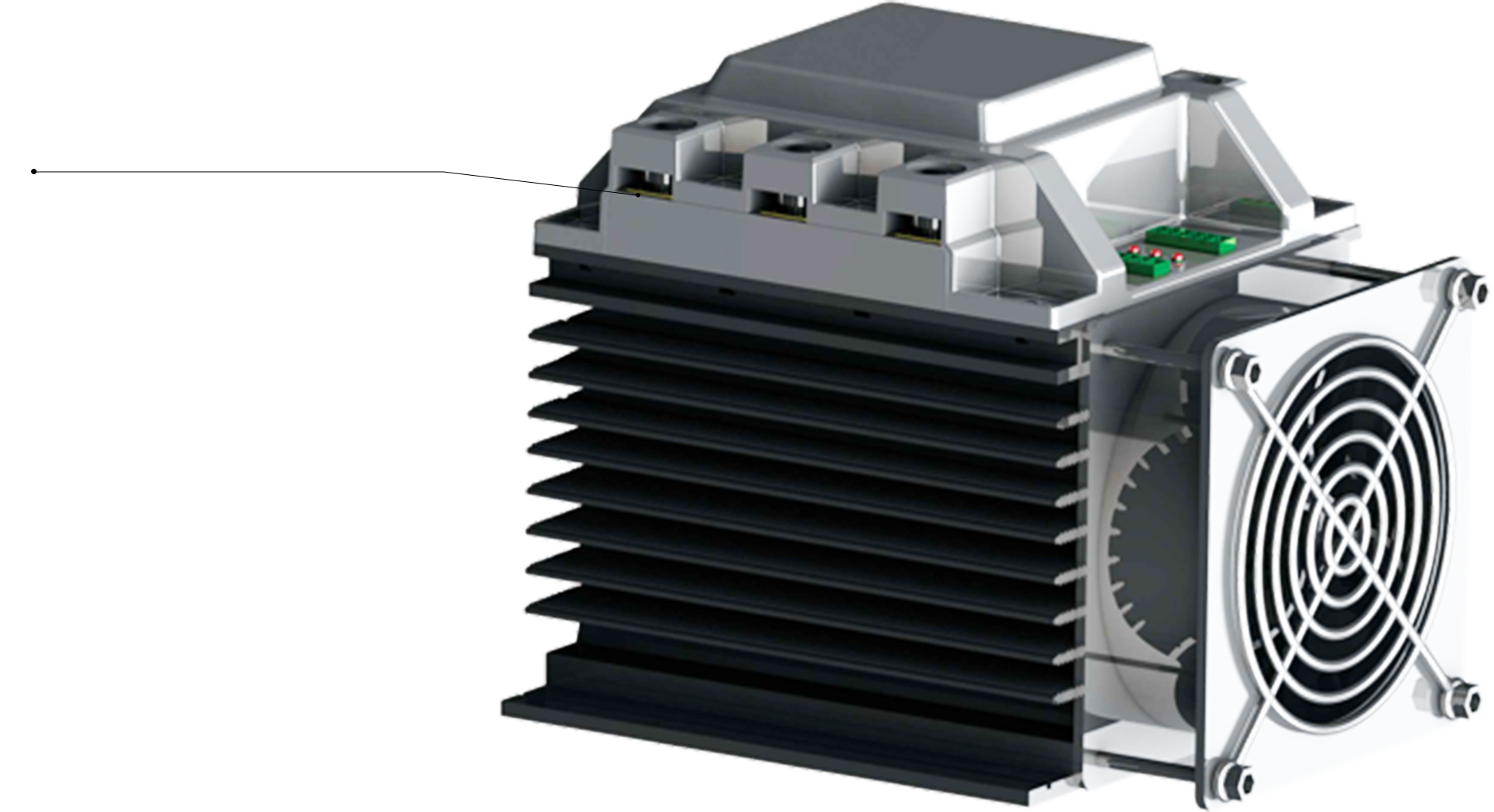

Bolt type push-in fixation
Combined with SC type cable lug for connection
Fixed with 8mm Allen wrench
It is recommended that torque should not exceed 15N.M

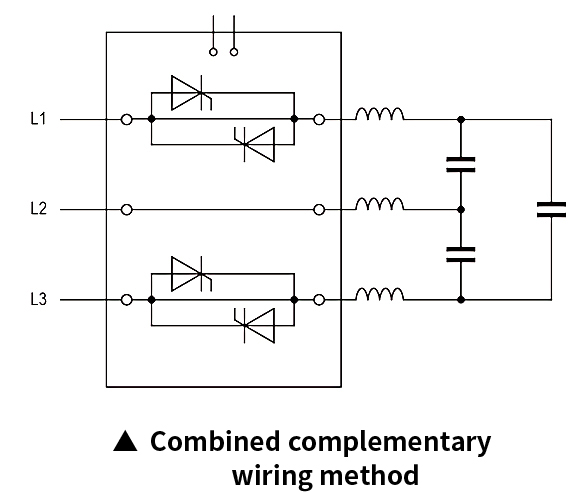

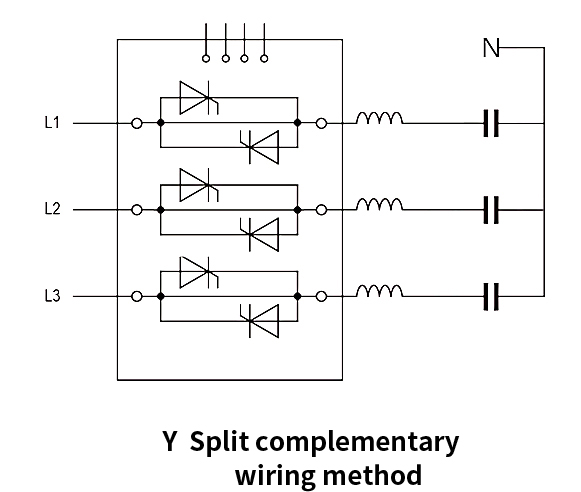

Three-phase thyristor switch adheres to the principle of 2 controls and 3 switchings, thus phase B will not be converted, and each phase of the switch can be controlled independently to realize single-phase compensation.
| Rated voltage | 230~690V，50/60Hz |
| Rated capacity | 15~60kvar |
| Response time | 1~20ms |
| Drive voltage | DC 12V |
| Protection degree | IP20 (other can be customized) |
| Temperature protection | Fan controls at 40°C, switches off the module at 80°C |
| Ambient temperature | -25ºC~+50ºC |
| Relative humidity | Max.95% |
| Altitude | Conventional 2000 meters, higher altitude can be customized |
| Model | Capacity（kvar） | Application | Over-temperature protection | System voltage（V） |
| Single-phase | ||||
| KLD-TSC15-1-2010X | 15 | Split-phase dynamic switching | Provided | 400 |
| KLD-TSC30-1-2010X | 30 | Split-phase dynamic switching | Provided | 400 |
| KLD-TSC45-1-2010X | 45 | Split-phase dynamic switching | Provided | 400 |
| Three-phase | ||||
| KLD-TSC12.5-3-2010X | 12.5 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC15-3-2010X | 15 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC20-3-2010X | 20 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC25-3-2010X | 25 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC30-3-2010X | 30 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC40-3-2010X | 40 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC50-3-2010X | 50 | Three-phase dynamic switching | Provided | 400 |
| KLD-TSC60-3-2010X | 60 | Three-phase dynamic switching | Provided | 400 |
Rated voltage：230V~690V，50/60Hz
Rated capacity：15~60kvar
Response time：1~20ms
Drive voltage：DC 12V
Protection class：IP20 (other can be customized)
Temperature protection：Fan controls at 40°C, switches off the module at 80°C
Ambient temperature：-25°C~+50°C
Relative humidity：Max.95%
Altitude：Conventional 2000 meters, higher altitude can be customized
Single-phase
Capacity （kvar）：15
Application：Split-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：30
Application：Split-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：45
Application：Split-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Three-phase
Capacity （kvar）：12.5
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：15
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：20
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：25
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：30
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：40
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：50
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
Capacity （kvar）：60
Application：Three-phase dynamic switching
Over-temperature protection：Supported
System voltage（V）：400
