KLD-SVG Series
Static Var Generator

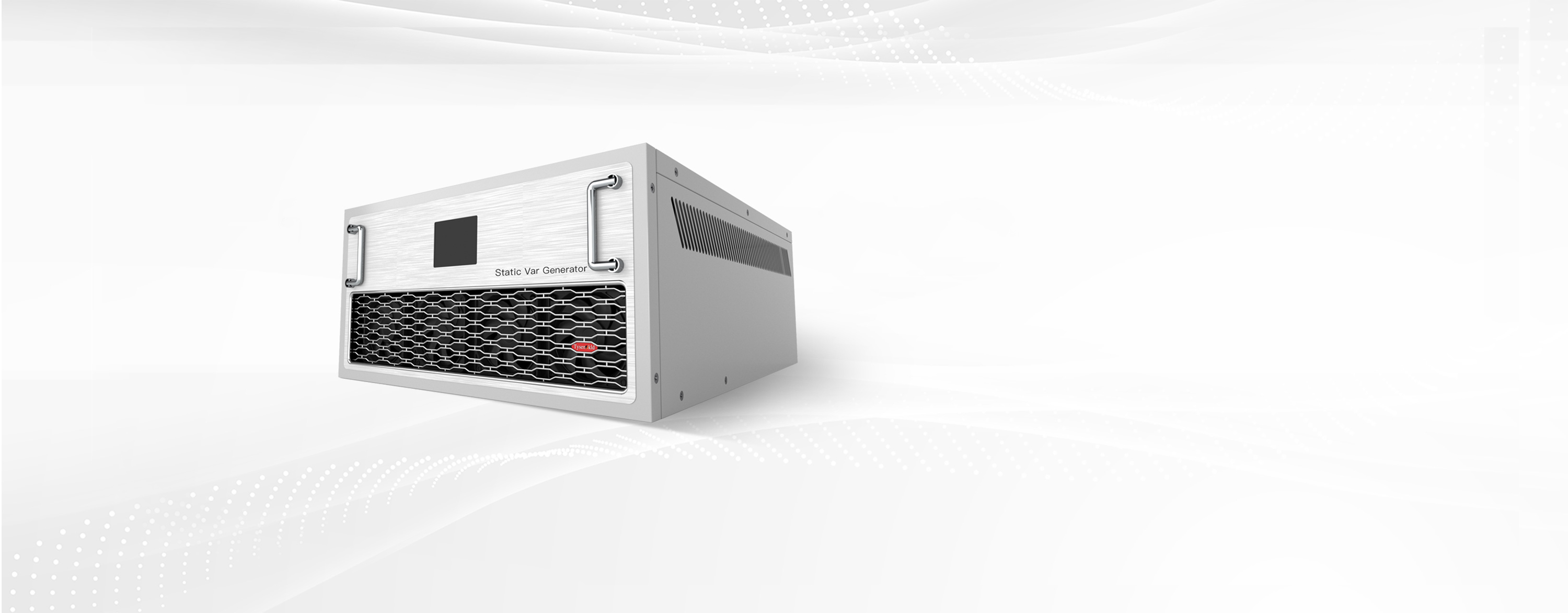

KLD-SVG Series Static Var Generator
KLD-SVG series static var generators can quickly and bi-directionally regulate the reactive power of the AC power grid, and have very fast and accurate compensation capability for the impulse reactive power.
With the development of power electronics technology, a variety of non-linear and time-varying electronic equipment are used on a large scale and the requirements for the power supply system are getting higher and higher, thus the traditional commonly used shunt capacitor compensation mode has been unable to meet the demands of controlling some of the distribution system with impulse loads (such as welding machines, rolling mills, Banbury mixers, etc.). As one of the core equipment and technology of FACTS (Flexible Alternating Current Transmission System), the Static Reactive Generator SVG is used in the distribution system to realize continuous and rapid reactive power compensation from inductive to capacitive, effectively suppressing voltage fluctuation and system oscillation, improving three-phase imbalance of loads and enhancing system stability. It is the optimal solution in the field of reactive power control.
KLD-SVG series low-voltage static var generator provides a new type of compensation mode that makes breakthrough of the traditional capacitor and electric motor reactive power compensation theory. It integrates power electronic technology, computer technology and modern control technology, and can quickly regulate the reactive power of AC power grid. It also has very effective capability for regulating the reactive power impact, static reactive power and reactive power in under-voltage conditions, and has the functions of voltage adjustment and harmonic suppression, which is an ideal choice for stabilizing the voltage and improving the power factor. At the same time, it gains significant benefits from energy saving and consumption reduction, and capacity increase of the power supply equipments.

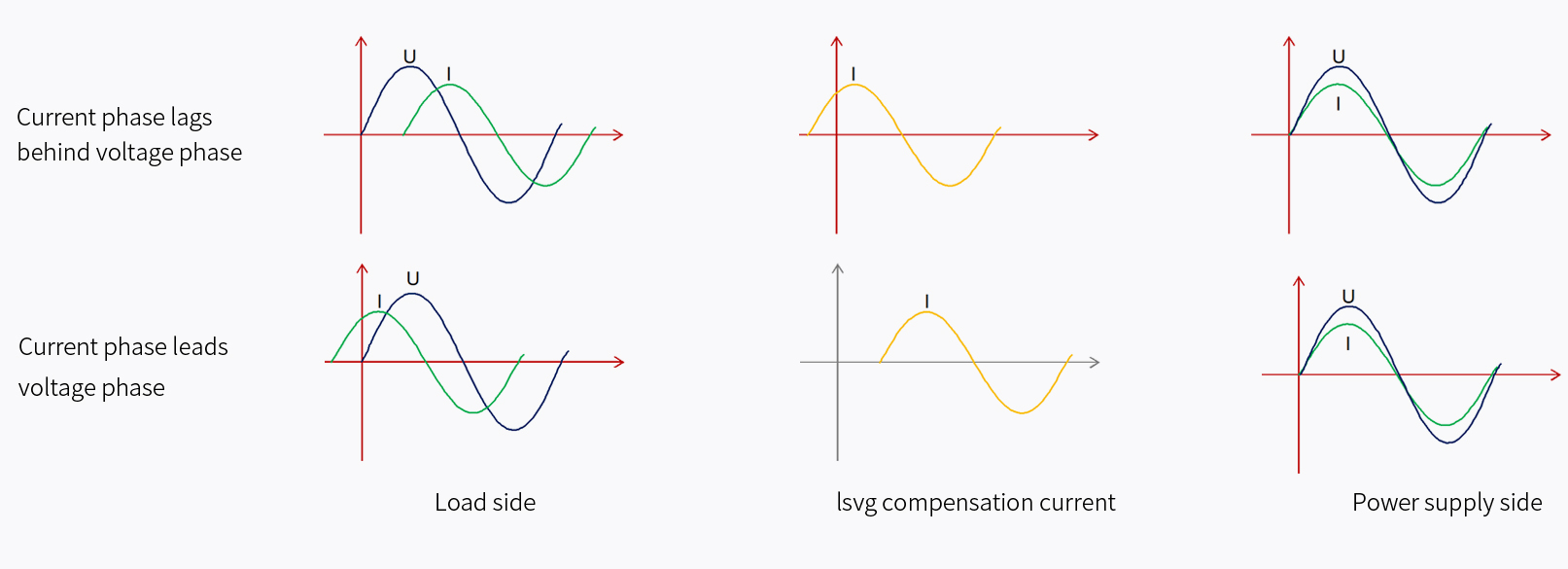

It adopts gate turn-off power electronic component (IGBT) to form a self-commutated bridge circuit, and adjusts the amplitude and phase of the output voltage on the AC side through IGBT to quickly absorb or generate the required reactive power, realizing the purpose of rapid dynamic regulation of reactive power.
| Input | |
| Operating voltage | 200~690V |
| Operating frequency | 50/60±5%Hz |
| Wiring mode | Three-phase three-wire、three-phase four-wire |
| Performance indicators | |
| Power factor | ＞0.99，configurable |
| Reactive power compensation mode | Dynamic continuous automatic regulation |
| Full response time | ＜10ms |
| Equipment efficiency | Up to97% |
| *Harmonic filtering | Supports low-order (3rd, 5th, 7th, 9th, 11st, 13th) harmonic compensation |
| IGBT Frequency | 20kHz |
| Overload protection | Automatic current limiting at 100% of rated output |
| Compensation of three-phase unbalanced loads | Provided |
| *Output harmonic current | ≤50% of rated power |
| Mean time between failures | MTBF≥150000 hours |
| Self loss | ＜2.5% |
| Interface module | |
| Display interface | New full-color display, real-time display of system harmonics and harmonic current output by equipment |
| Operation interface | LCD intelligent operation unit |
| Display language | Simplified Chinese/English |
| Communication interface | RS485、Modbus |
| Ambient operation | |
| Ambient temperature | -10℃~+55℃ |
| Storage temperature | -40℃~+75℃ |
| Relative humidity | Max. 95%RH (no condesing) |
| Altitude | ≤1500 meters; 1500-4000 merers, the power is reduced by 1% for every 100m increase |
| Model | Compensation capacity(kvar) | Rated voltage（V） | type | Cooling mode |
| Three-phase three-wire system | ||||
| KLD-SVG-50-3L-400V-HD | 50 | 400 | Wall-mounted, with screen | Forced air-cooling |
| KLD-SVG-50-3L-400V-RD | 50 | 400 | Rack-mounted, with screen | Forced air-cooling |
| KLD-SVG-100-3L-400V-RD | 100 | 400 | Rack-mounted, with screen | Forced air-cooling |
| KLD-SVG-150-3L-400V-RD | 150 | 400 | Rack-mounted, with screen | Forced air-cooling |
| KLD-SVG-50-3L-690V-RC | 50 | 690 | Rack-mounted, centralized monitoring and control | Forced air-cooling |
| KLD-SVG-100-3L-690V-RC | 100 | 690 | Rack-mounted, centralized monitoring and control | Forced air-cooling |
| three-phase our-wire system | ||||
| KLD-SVG-50-4L-400V-HD | 50 | 400 | Wall-mounted、with screen | Forced air-cooling |
| KLD-SVG-50-4L-400V-RD | 50 | 400 | Rack-mounted, with screen | Forced air-cooling |
| KLD-SVG-100-4L-400V-RD | 100 | 400 | Rack-mounted, with screen | Forced air-cooling |
| KLD-SVG-150-4L-400V-RD | 150 | 400 | Rack-mounted, with screen | Forced air-cooling |
| KLD-SVG-50-4L-690V-RC | 50 | 690 | Rack-mounted, centralized monitoring and control | Forced air-cooling |
| KLD-SVG-100-4L-690V-RC | 100 | 690 | Rack-mounted, centralized monitoring and control | Forced air-cooling |
Operating voltage：200~690V
Operating frequency：50/60±5%Hz
Wiring mode：hree-phase three-wire, three-phase four-wire
Power factor：＞0.99，configurable
Reactive power compensation mode：Dynamic continuous automatic regulation
Full response time：＜10ms
Equipment efficiency：Up to97%
*Harmonic filtering：Supports low-order (3rd, 5th, 7th, 9th, 11st, 13th) harmonic compensation
IGBT frequency：20kHz
Overload protection：Automatic current limiting at 100% of rated output
Compensation of three-phase unbalanced loads：Supported
*Output harmonic current：≤50% of rated power
Mean time between failures：MTBF≥150000 hours
Self loss：＜2.5%
Display interface：New full-color display, real-time display of system harmonics and harmonic current output by equipment
Operation interface：LCD intelligent operation unit
Display language：Simplified Chinese/English
Communication interface：RS485、Modbus
>Ambient temperature：-10℃~+55℃
Storage temperature：-40℃~+75℃
Relative humidity：Max. 95%RH (no condesing)
Altitude：≤1500 meters; 1500-4000 merers, the power is reduced by 1% for every 100m increase
Three-phase three-wire system
Compensation capacity（kvar）：50
Rated voltage（V）：400
Type：Wall-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：50
Rated voltage（V）：400
Type：Rack-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：100
Rated voltage（V）：400
Type：Rack-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：150
Rated voltage（V）：400
Type：Rack-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：50
Rated voltage（V）：690
Type：Rack-mounted, centralized monitoring and control
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：100
Rated voltage（V）：690
Type：Rack-mounted, centralized monitoring and control
Cooling mode：Forced air-cooling
Three-phase four-wire system
Compensation capacity（kvar）：50
Rated voltage（V）：400
Type：Wall-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：50
Rated voltage（V）：400
Type：Rack-mounted, with screen
Cooling mode：Forced air-cooling
>Compensation capacity（kvar）：100
Rated voltage（V）：400
Type：Rack-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：150
Rated voltage（V）：400
Type：Rack-mounted, with screen
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：50
Rated voltage（V）：690
Type：Rack-mounted, centralized monitoring and control
Cooling mode：Forced air-cooling
Compensation capacity（kvar）：100
Rated voltage（V）：690
Type：Rack-mounted, centralized monitoring and control
Cooling mode：Forced air-cooling
