KLD-MK Series

High-voltage Power Capacitors

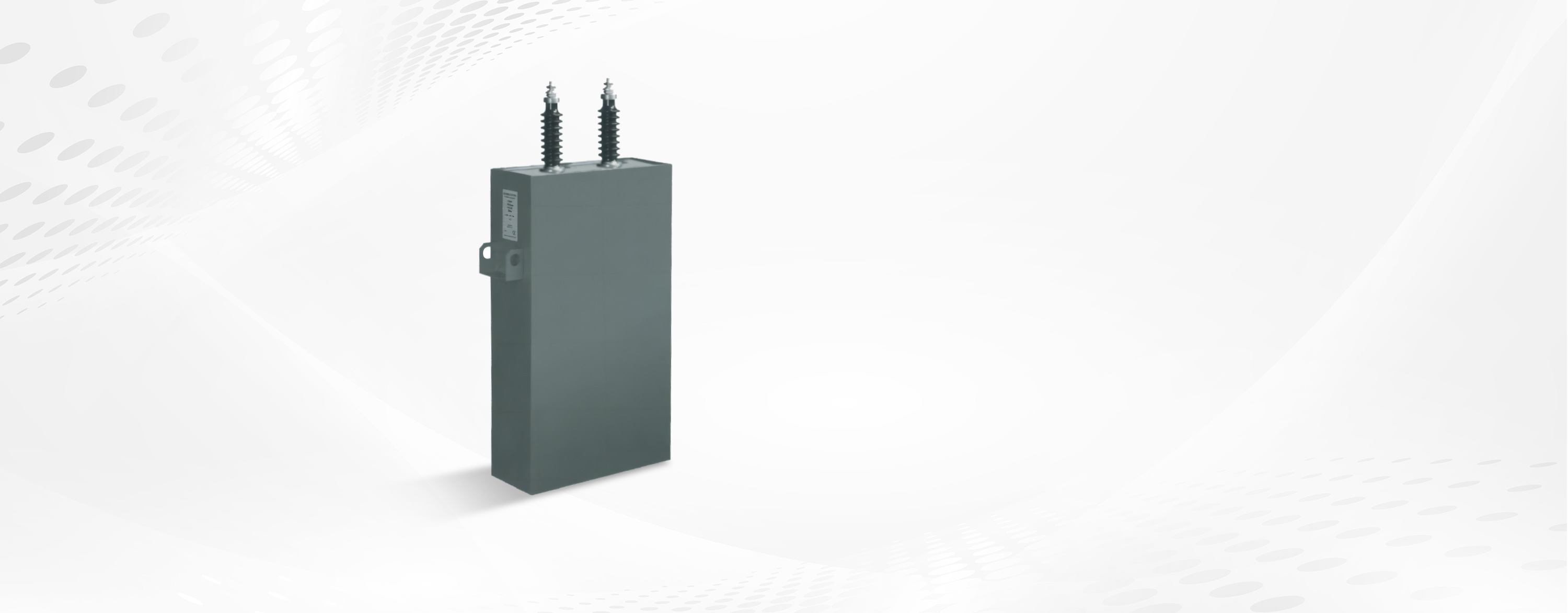

KLD-MK Series High-voltage Power Capacitors

KLD-MK series high-voltage power capacitors provide reactive power for industrial frequency AC power system, which is used to improve the power factor of the grid, reduce the grid loss, improve the quality of voltage and the efficiency of power generation and power supply equipment.

PRODUCT OVERVIEW

High-voltage shunt capacitors are mainly used in 10kV-35W industrial frequency power system for reactive power compensation, improving power factor and adjusting grid voltage. It fully maximizes the efficiency of the equipment and improves the quality of power supply.

KLD-MK series high-voltage power capacitor is designed with advanced technologies. It chooses polypropylene film as full-film dielectric which is easy to Impregnate and uses PCB-free, safe and environmentally friendly insulating oil as impregnating agent. The case has high specifications of explosion resistance to ensure the safety of use. Special considerations for the power grid make the field strength, material and other aspects are designed to be more adaptive to the grid, better meeting the operating requirements of the power grid.

ENVIRONMENTALLY FRIENDLY INSULATING OIL

As an impregnant, the insulating oil has excellent dielectric properties and stable chemical properties, with no chlorine or chlorinated biphenyls, which can be completely biodegradable.

No pollution, low freezing point, low viscosity, good low-temperature performance; good absorption to the gas generated by partial discharge, high ignition point, excellent resistance to over-voltage.

SPECIAL GAS MIXED IN INSULATING OIL

Trace water in the dielectric and impregnant is one of the important issues affecting the performance of capacitor partial discharge and this process can further remove the trace water in the oil medium

Improve the partial discharge performance and electrical resistance to accelerate the movement of the impregnant and facilitate heat dissipation. Reduce the weight of the impregnant medium and thus reduce the overall weight, with better reliability and longer service life.

RELIABLE WELDING PROCESS

The case is made of stainless steel plate integrated as a whole and welded by automatic argon-shielded welding machine, with high-strength crimp-type casing welded on the cover.

FOLDED EDGE STRUCTURE OF POLAR PLATE

The electrode edge of the polar plate adopts the folded edge structure, and the edge is in the shape of circular arc, which improves the field strength distribution and the ratio of the maximum edge field strength to the average field strength is reduced from 6 times to about 2 times. The points of high field strength are eliminated by removing burrs on the edge of the polar plate, and the electric field strength is higher than the traditional process, which reduces the losses of the capacitor and lowers the probability of partial discharge of the capacitor, and thus improves the reliability of the insulation.

Technical Parameters

Rated voltage 6~35kV，50Hz/60Hz(others can be customized)
Dielectric structure High-quality polypropylene film、environmentally friendly insulating oil
Overvoltage range 1.1Un long-term, 1.15Un30min, 1.3Un5min, 3Un1min
Overcurrent capacity 1.5In long-term operation (higher can be customized)
Dielectric loss ＜0.2W/kvar
Capacitance tolerance -5%~+5%
Insulation level 3kV/40kV，6kV/60kV，10kV/75kV，20kV/125kV
Interpolar withstand voltage 10 seconds AC voltage under 2.15Un
Service life 20 years (under normal use)
Temperature rating -40℃~+50℃(or higher)
Safety protection Internal fuse (or external fuse) protection
Discharge protection Built-in discharge device, ＜50V/5min (higher can be customized)
Cooling method Natural cooling (ventilation cooling can be used in the cabinet)
Loss angle tangent value ≤0.0002
Execution standard IEC 60871/EN60871，GB/T11024，VDE0560,etc
Selection table

Product specifications for single-phase capacitors of 6kV system

Specification Model Rated capacity（kvar） Rated voltage（kV） Rated current（A） Internal protection components
KLD-MK-H1-50-6.6/√3kV 50 6.6/√3 13.12 External fuse
KLD-MK-H1-100-6.6/√3kV 100 6.6/√3 26.24 External fuse
KLD-MK-H1-200-6.6/√3kV 200 6.6/√3 52.49 Internal fuse
KLD-MK-H1-334-6.6/√3kV 334 6.6/√3 87.65 Internal fuse
KLD-MK-H1-417-6.6/√3kV 417 6.6/√3 109.43 Internal fuse
KLD-MK-H1-500-6.6/√3kV 500 6.6/√3 131.21 Internal fuse
KLD-MK-H1-50-7.2/√3kV 50 7.2/√3 12.03 External fuse
KLD-MK-H1-100-7.2/√3kV 100 7.2/√3 24.06 External fuse
KLD-MK-H1-200-7.2/√3kV 200 7.2/√3 48.11 Internal fuse
KLD-MK-H1-334-7.2/√3kV 334 7.2/√3 80.35 Internal fuse
KLD-MK-H1-417-7.2/√3kV 417 7.2/√3 100.31 Internal fuse
KLD-MK-H1-500-7.2/√3kV 500 7.2/√3 120.28 Internal fuse

Product specifications for single-phase capacitors of 10kV system

Specification Model Rated capacity（kvar） Rated voltage（kV） Rated current（A） Internal protection components
KLD-MK-H1-50-11/√3kV 50 11/√3 7.87 External fuse
KLD-MK-H1-100-11/√3kV 100 11/√3 15.75 External fuse
KLD-MK-H1-200-11/√3kV 200 11/√3 31.49 Internal fuse
KLD-MK-H1-334-11/√3kV 334 11/√3 52.59 Internal fuse
KLD-MK-H1-417-11/√3kV 417 11/√3 65.66 Internal fuse
KLD-MK-H1-500-11/√3kV 500 11/√3 78.73 Internal fuse
KLD-MK-H1-50-12/√3kV 50 12/√3 7.22 External fuse
KLD-MK-H1-100-12/√3kV 100 12/√3 14.43 External fuse
KLD-MK-H1-200-12/√3kV 200 12/√3 28.87 Internal fuse
KLD-MK-H1-334-12/√3kV 334 12/√3 48.21 Internal fuse
KLD-MK-H1-417-12/√3kV 417 12/√3 60.19 Internal fuse
KLD-MK-H1-500-12/√3kV 500 12/√3 72.17 Internal fuse

Technical Parameters


  • Rated voltage：6~35kV，50Hz/60Hz(others can be customized)

    Dielectric structure ：High-quality polypropylene film, environmentally friendly insulating oil

    Overvoltage range：1.1Un long-term, 1.15Un30min, 1.3Un5min, 3Un1min

    Overcurrent capacity：1.5In long-term operation (higher can be customized)

    Dielectric loss：＜0.2W/kvar

    Capacitance tolerance：-5%~+5%

    Insulation level：3kV/40kV，6kV/60kV，10kV/75kV，20kV/125kV

    Interpolar withstand voltage：10 seconds AC voltage under 2.15Un

    Service life：20 years (under normal use)

    Temperature rating：-40℃~+50℃(or higher)

    Safety protection：Internal fuse (or external fuse) protection

    Discharge protection：Built-in discharge device, ＜50V/5min (higher can be customized)

    Cooling method：Natural cooling (ventilation cooling can be used in the cabinet)

    Loss angle tangent value：≤0.0002

    Execution standard：IEC 60871/EN60871，GB/T11024，VDE0560,etc

Selection table


  • KLD-MK-H1-50-6.6/√3kV

    Rated capacity（kvar）：50

    Rated voltage（kV）：6.6/√3

    Rated current（A）：13.12

    Internal protection components：External fuse

    KLD-MK-H1-100-6.6/√3kV

    Rated capacity（kvar）：100

    Rated voltage（kV）：6.6/√3

    Rated current（A）：26.24

    Internal protection components：External fuse

    KLD-MK-H1-200-6.6/√3kV

    Rated capacity（kvar）：200

    Rated voltage（kV）：6.6/√3

    Rated current（A）：52.49

    Internal protection components：Internal fuse

    KLD-MK-H1-334-6.6/√3kV

    Rated capacity（kvar）：334

    Rated voltage（kV）：6.6/√3

    Rated current（A）：87.65

    Internal protection components：Internal fuse

    KLD-MK-H1-417-6.6/√3kV

    Rated capacity（kvar）：417

    Rated voltage（kV）：6.6/√3

    Rated current（A）：109.43

    Internal protection components：Internal fuse

    KLD-MK-H1-500-6.6/√3kV

    Rated capacity（kvar）：500

    Rated voltage（kV）：6.6/√3

    Rated current（A）：131.21

    Internal protection components：Internal fuse

    KLD-MK-H1-50-7.2/√3kV

    Rated capacity（kvar）：50

    Rated voltage（kV）：7.2/√3

    Rated current（A）：12.03

    Internal protection components：External fuse

    KLD-MK-H1-100-7.2/√3kV

    Rated capacity（kvar）：100

    Rated voltage（kV）：7.2/√3

    Rated current（A）：24.06

    Internal protection components：External fuse

    KLD-MK-H1-200-7.2/√3kV

    Rated capacity（kvar）：200

    Rated voltage（kV）：7.2/√3

    Rated current（A）：48.11

    Internal protection components：Internal fuse

    KLD-MK-H1-334-7.2/√3kV

    Rated capacity（kvar）：334

    Rated voltage（kV）：7.2/√3

    Rated current（A）：80.35

    Internal protection components：Internal fuse

    KLD-MK-H1-417-7.2/√3kV

    Rated capacity（kvar）：417

    Rated voltage（kV）：7.2/√3

    Rated current（A）：100.31

    Internal protection components：Internal fuse

    KLD-MK-H1-500-7.2/√3kV

    Rated capacity（kvar）：500

    Rated voltage（kV）：7.2/√3

    Rated current（A）：120.28

    Internal protection components：Internal fuse

  • KLD-MK-H1-50-11/√3kV

    Rated capacity（kvar）：50

    Rated voltage（kV）：11/√3

    Rated current（A）：7.87

    Internal protection components：External fuse

    KLD-MK-H1-100-11/√3kV

    Rated capacity（kvar）：100

    Rated voltage（kV）：11/√3

    Rated current（A）：15.75

    Internal protection components：External fuse

    KLD-MK-H1-200-11/√3kV

    Rated capacity（kvar）：200

    Rated voltage（kV）：11/√3

    Rated current（A）：31.49

    Internal protection components：Internal fuse

    KLD-MK-H1-334-11/√3kV

    Rated capacity（kvar）：334

    Rated voltage（kV）：11/√3

    Rated current（A）：52.59

    Internal protection components：Internal fuse

    KLD-MK-H1-417-11/√3kV

    Rated capacity（kvar）：417

    Rated voltage（kV）：11/√3

    Rated current（A）：65.66

    Internal protection components：Internal fuse

    KLD-MK-H1-500-11/√3kV

    Rated capacity（kvar）：500

    Rated voltage（kV）：11/√3

    Rated current（A）：78.73

    Internal protection components：Internal fuse

    KLD-MK-H1-50-12/√3kV

    Rated capacity（kvar）：50

    Rated voltage（kV）：12/√3

    Rated current（A）：7.22

    Internal protection components：External fuse

    KLD-MK-H1-100-12/√3kV

    Rated capacity（kvar）：100

    Rated voltage（kV）：12/√3

    Rated current（A）：14.43

    Internal protection components：External fuse

    KLD-MK-H1-200-12/√3kV

    Rated capacity（kvar）：200

    Rated voltage（kV）：12/√3

    Rated current（A）：28.87

    Internal protection components：Internal fuse

    KLD-MK-H1-334-12/√3kV

    Rated capacity（kvar）：334

    Rated voltage（kV）：12/√3

    Rated current（A）：48.21

    Internal protection components：Internal fuse

    KLD-MK-H1-417-12/√3kV

    Rated capacity（kvar）：417

    Rated voltage（kV）：12/√3

    Rated current（A）：60.19

    Internal protection components：Internal fuse

    KLD-MK-H1-500-12/√3kV

    Rated capacity（kvar）：500

    Rated voltage（kV）：12/√3

    Rated current（A）：72.17

    Internal protection components：Internal fuse
