KLD-BMS2000 Series

High Performance Harmonic Protector

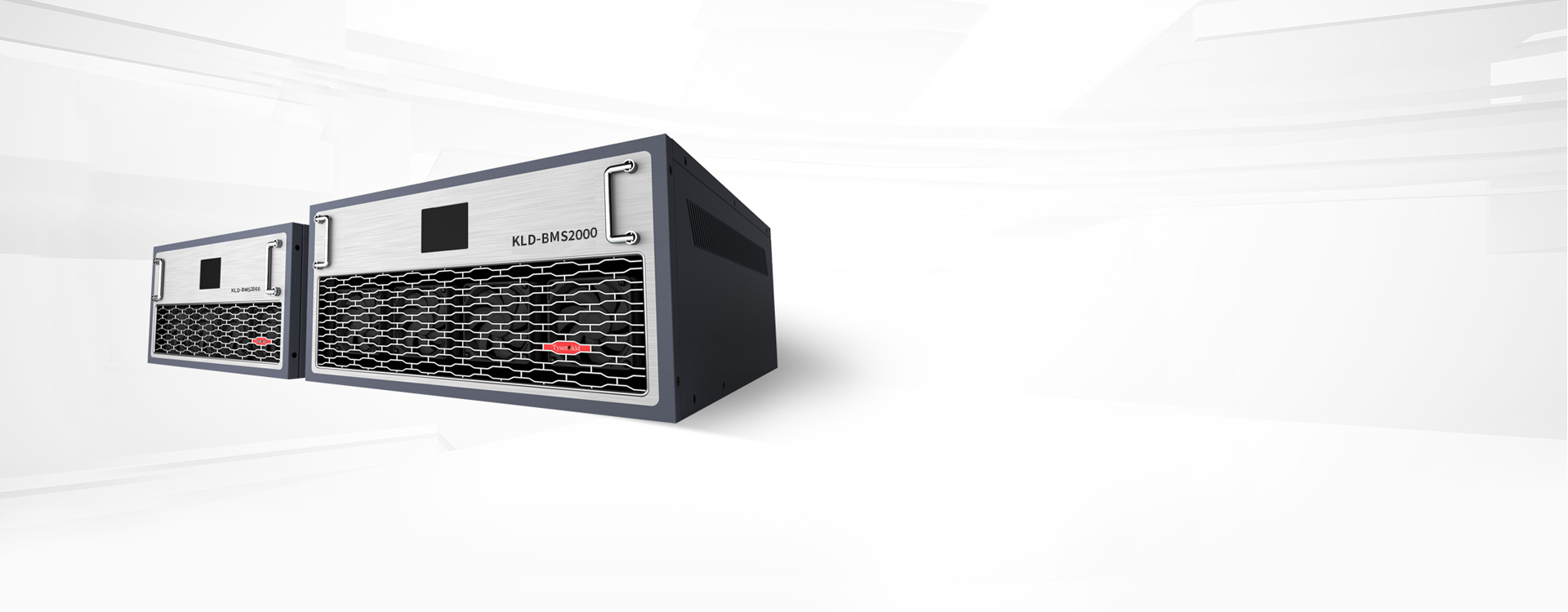

KLD-BMS2000 Series High Performance Harmonic Protector

Filtering harmonic frequency and energy, efficiently controlling harmonic interference, eliminating harmonics at the source.

PRODUCT OVERVIEW

Ideal power supply should be a sinusoidal waveform with a single constant frequency and specified amplitude. When a sinusoidal voltage is applied to a non-linear load, the current will be distorted into a non-sinusoidal waveform, which leads to a voltage drop in the grid impedance, making the voltage waveform turn to be non-sinusoidal as well. Applying Fourier series decomposition to non-sinusoidal waveforms, in which the component with the same frequency as the industrial frequency is called the fundamental wave, and the component with a frequency greater than the industrial frequency is called the harmonic wave.

KLD-BMS2000 series high-performance harmonic protector eliminates harmonics at the power side through digital logics and detects the current waveform generated by non-linear loads in the power grid in real time. It decomposes and reverses the harmonic wave, and then injects the reversed current into the power grid by triggering IGBT inverter to filter out the harmonics. It is mainly applied to the control of harmonics at the power side to protect the important power equipment of customers.

COMPREHENSIVE HARMONIC
CONTROL CAPABILITY

KLD-BMS2000 series high-performance harmonic protector dynamically analyzes system harmonics in real time and filters them out to purify the system, and the response speed is very fast.

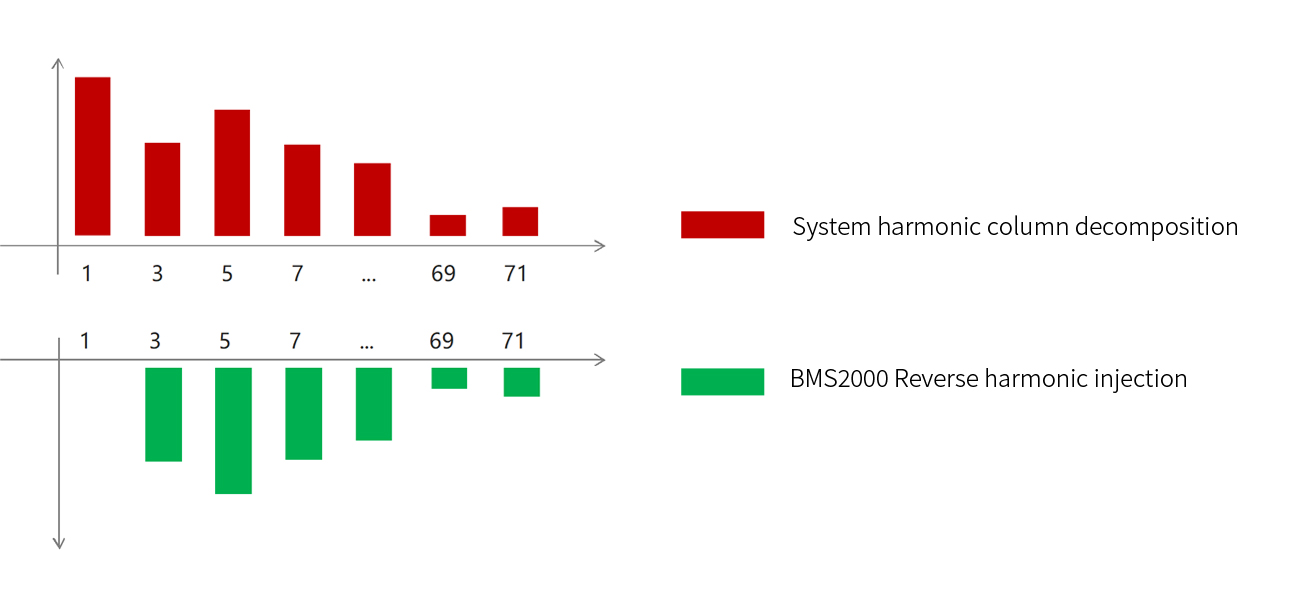

It automatically controls the harmonics according to the situation, and can filter out a wide range of harmonics, including 2nd to 71st harmonics. It can filter out the harmonics of phase A, B and C respectively, and the neutral line has the filtering capacity three times stronger than others, featuring comprehensive high-performance harmonic control.

MODULAR DESIGN

KLD-BMS series high-performance harmonic protector adopts modular design with intelligent duct design, featuring lower loss and more convenient application.

It has complex model structure, wall-mounted and rack-mounted models are all designed in modules. Its compact space design and accurate capacity control can fully meet the needs of different customers, and applicable to a wide range of fields, making it very convenient in the transportation process, capacity increase and maintenance at the later stage. Also, the modular design is easier to be integrated into the power distribution cabinet.

Technical Parameters

System voltage	110V~690V
Rated frequency	50Hz/60Hz(±5%)
Filter range	2nd-71st harmonics, the order and times of harmonics can be specified
Response time	Transient response time response time≤100ms，Full response time≤10ms
Filter effect	As high≥97%
Communication protocol	Modbus protocol, RS485/232 module
Module design	Multiple pcs in parallel
PF adjustment	Adjust PF from inductive 0.6 to capacitive 0.6
Switch frequency	20kHz
Balance protection	Programmable phase balance protection
Power consumption	≤3% of its power consumption
Protection degree	IP21, high protection kit can be added
Altitude	Conventional 2000 meters, higher altitude can be customized
Relative humidity	≤95%RH(no condensing)
Temperature range	-40℃～+65℃

Selection table

Model	Rated Compensation Current（A）	Rated voltage（V）	Installation method	Cooling method
KLD-BMS2000-50A-400V	50	400	Wall-mounted or rack-mounted	Forced air-cooling
KLD-BMS2000-100A-400V	100	400	Wall-mounted or rack-mounted	Forced air-cooling
KLD-BMS2000-150A-400V	150	400	Wall-mounted or rack-mounted	Forced air-cooling
KLD-BMS2000-200A-400V	200	400	Wall-mounted or rack-mounted	Forced air-cooling
