KLD-PY SERIES

ENERGY STORAGE LIQUID

COOLING PACK

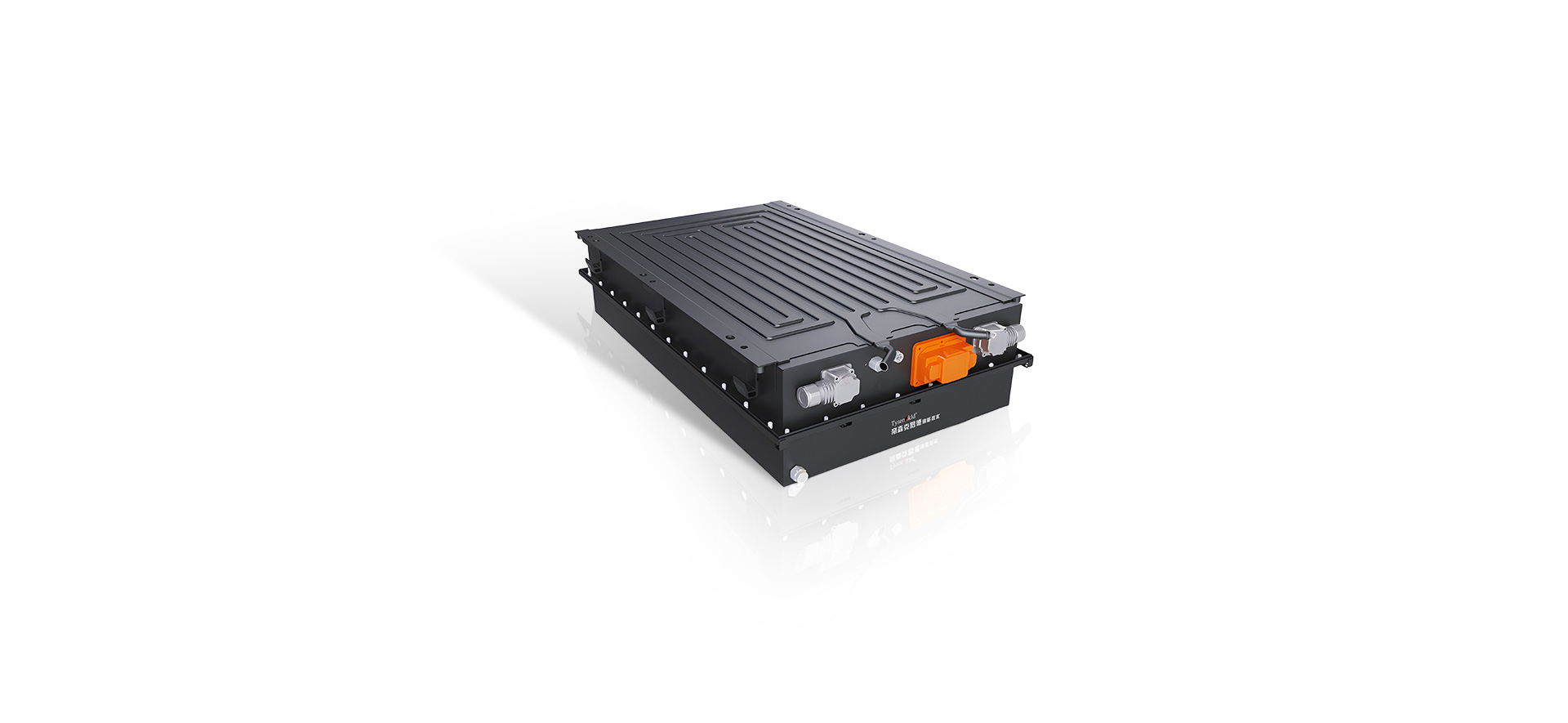

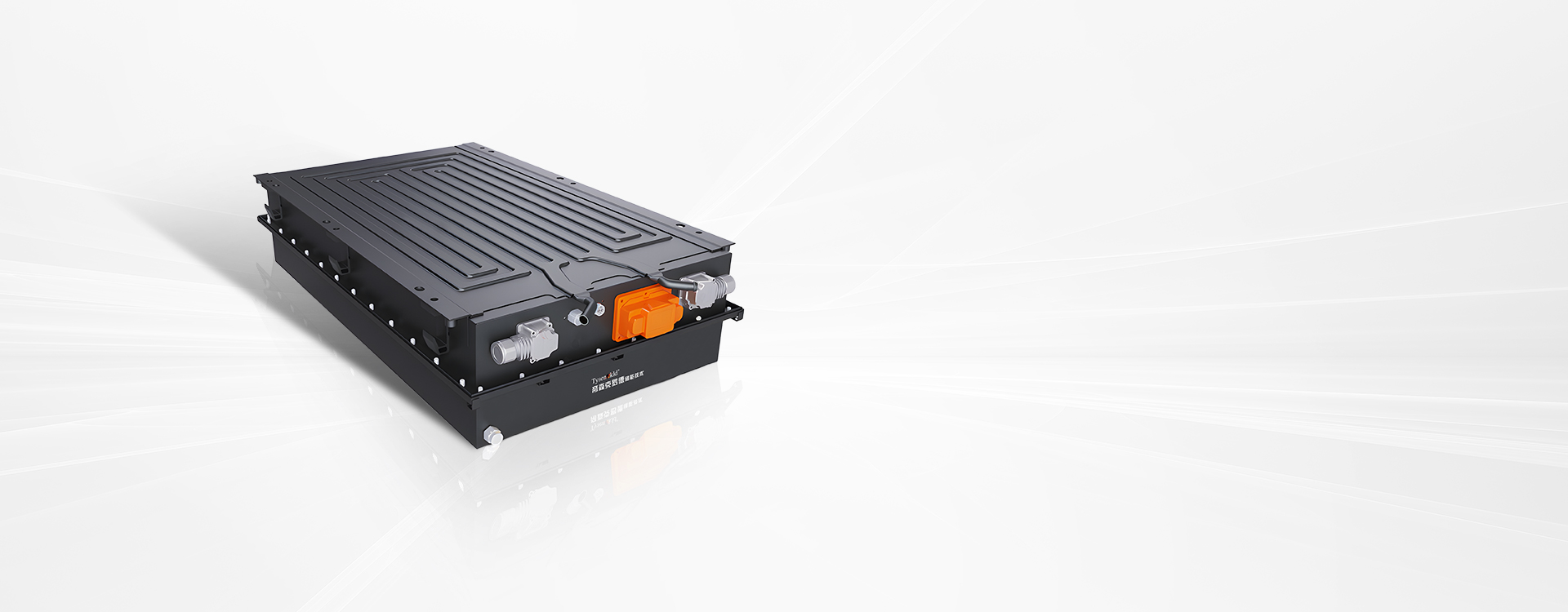

KLD-PY SERIES ENERGY STORAGE LIQUID COOLING PACK

Stable Safe Reliable

PRODUCT DESCRIPTION

Each module of KLD-PY series energy storage liquid cooling PACK is equipped with liquid cooling plate or pipeline, which takes away the heat through the flow of coolant on the battery surface. This cooling method has the advantages of good heat dissipation, uniform heat dissipation, high power density, etc. It is suitable for large battery packs or high power battery packs.

PRODUCT FEATURES

Safe and reliable

It adopts enhanced and
thickened aluminum alloy,
and the bottom plate is made
of hot-dip galvanized and
sprayed material to ensure the
durability and protection of the shell.

Precise inspection

Accurately inspect the
voltage and temperature
of single cell.

Liquid cooling temperature control

Brand-new liquid cooling
runner design ensures
maximum heat dissipation
effect and improves stability
and reliability.

Protection warning

Advanced safety warning
device explosion-proof valve
is installed inside the pack,
which can eliminate sprays
independently to ensure the safety
of the battery pack.

TECHNOLOGY PARAMETER

Material of liquid cooling plate Aluminum alloy plate
Cabinet material Hot-dip galvanized steel plate
Cell Specification 280Ah*48 strings
Rated voltage DC153.6V
BMS subordinate control Active equalization
Air tightness ≥300KPA
Breakdown voltage ≥DC3820V
surface treatment Electrostatic spraying, and the bottom is made of polyurethane for anti-condensation

Note: material download page for detailed parameter
