KLD-PF SERIES

ENERGY STORAGE AIR

COOLING PACK

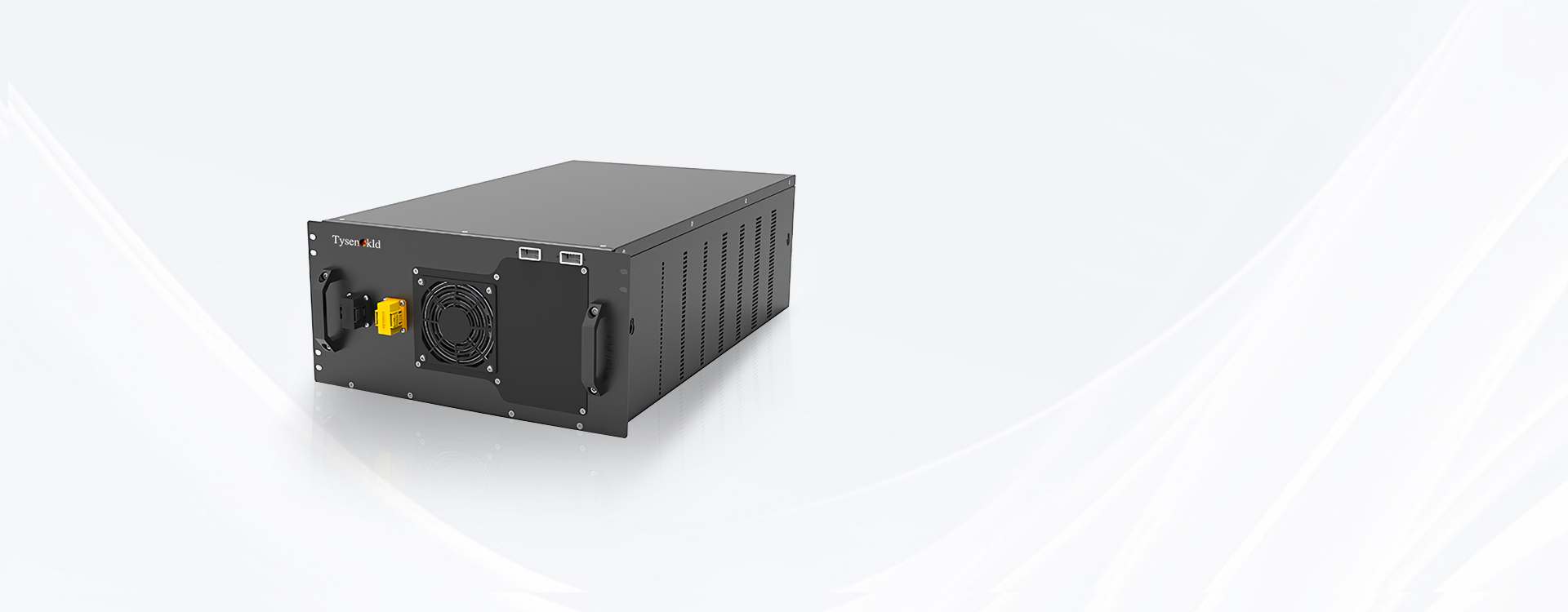

KLD-PF SERIES ENERGY STORAGE AIR COOLING PACK

Stable Safe Reliable

PRODUCT DESCRIPTION

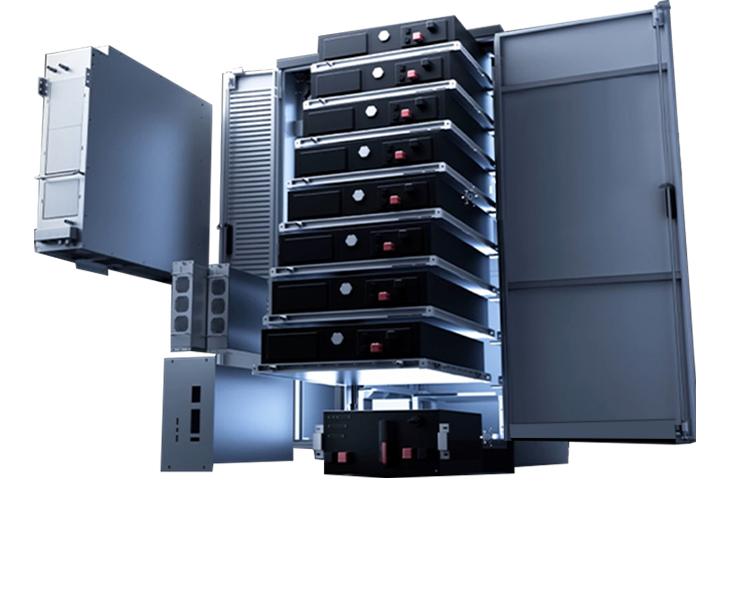

KLD-PF series energy storage air-cooling PACK is a device used to cool batteries, usually consisting of several battery modules, and each module is equipped with a radiator or cold plate to dissipate the heat by blowing cold air to the battery surface through the fan or ventilation ducts.

PRODUCT FEATURES

Safe and reliable

The hot-dip galvanized and sprayed material effectively prevents rust and corrosion, and is resistant to acid and alkali environments.

Air-cooling temperature control

Side 6-row cold air aluminum ducts, with cold air ducts at the rear central alley and negative pressure ventilation system at the front central alley, ensuring better heat dissipation.

TECHNOLOGY PARAMETER

Cabinet material Hot-dip galvanized steel plate
Battery cell qualification 280Ah*16 strings
Rated voltage DC51.2V
BMS subordinate control Active equalization
Temperature control 10-16 points detection
Voltage acquisition Single cell
Insulation resistance ≥1000MΩ(DC2500V)
Breakdown voltage ≥DC3820V
Surface Treatment Electrostatic spraying

Note: material download page for detailed parameter

TECHNOLOGY PARAMETER

  • Cabinet material：Hot-dip galvanized steel plate

    Battery cell qualification：280Ah*16 strings

    Rated voltage：DC51.2V

    BMS subordinate control：Active equalization

    Temperature control：10-16 points detection

    Voltage acquisition：Single cell

    Insulation resistance：≥1000MΩ(DC2500V)

    Breakdown voltage：≥DC3820V

    Surface Treatment：Electrostatic spraying
