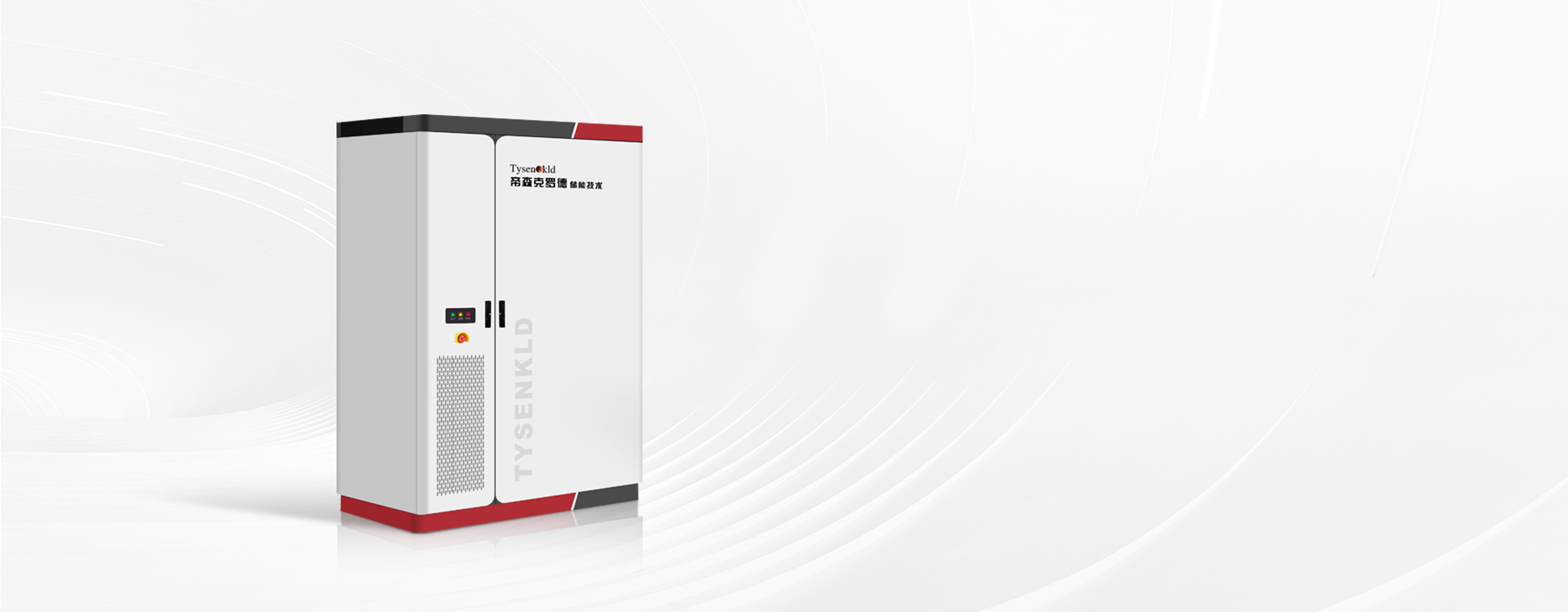

KLD-PEW SERIES

INTEGRATED ENERGY

STORAGE SYSTEM

Efficient Safe Reliable

PRODUCT DESCRIPTION

Tysen-kld KLD-PEW series integrated energy storage system integrates battery cell, battery management system (BMS), power conversion system (PCS), energy management system (EMS), active safety and thermal management system. Higher integration and intelligence as well as smaller floor space enable the installation and maintenance more convenient. The IP65 is IP54, designed with forced air cooling of internal circulation and independent thermal management temperature control system, which can meet the needs of most of the scenarios. As it adopts the strategy of high-efficiency energy conversion and intelligent control, the integrated energy storage system is efficient and stable as well.

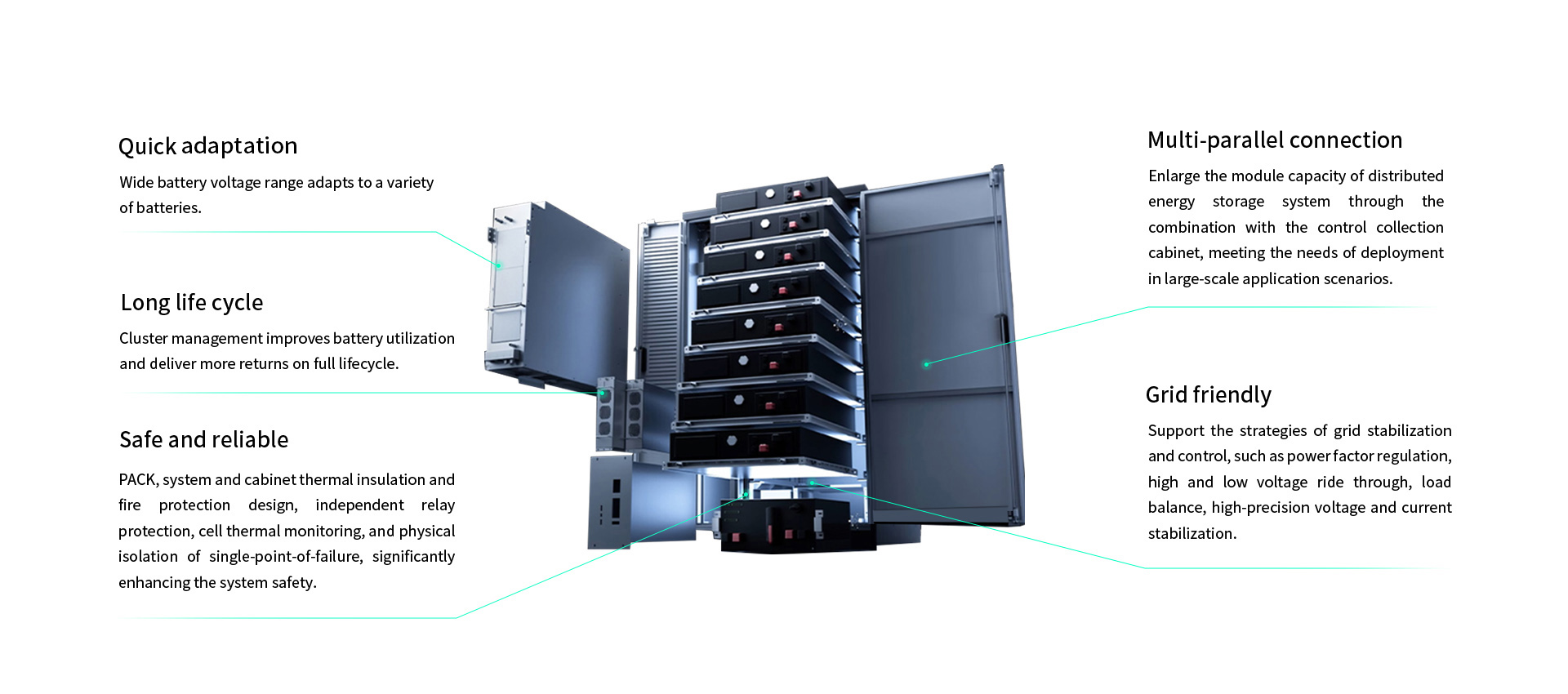

PRODUCT FEATURES

APPLICABLE AREAS

Industrial parks, commercial buildings, large power stations, production factories, and other large consumers of electricity, large industrial electricity consumption, areas with large fluctuations in daily load curves, areas with independent transformers and with huge differences in local peak-valley price, and parks where equipment should in operation uninterruptedly, for example, data centers.

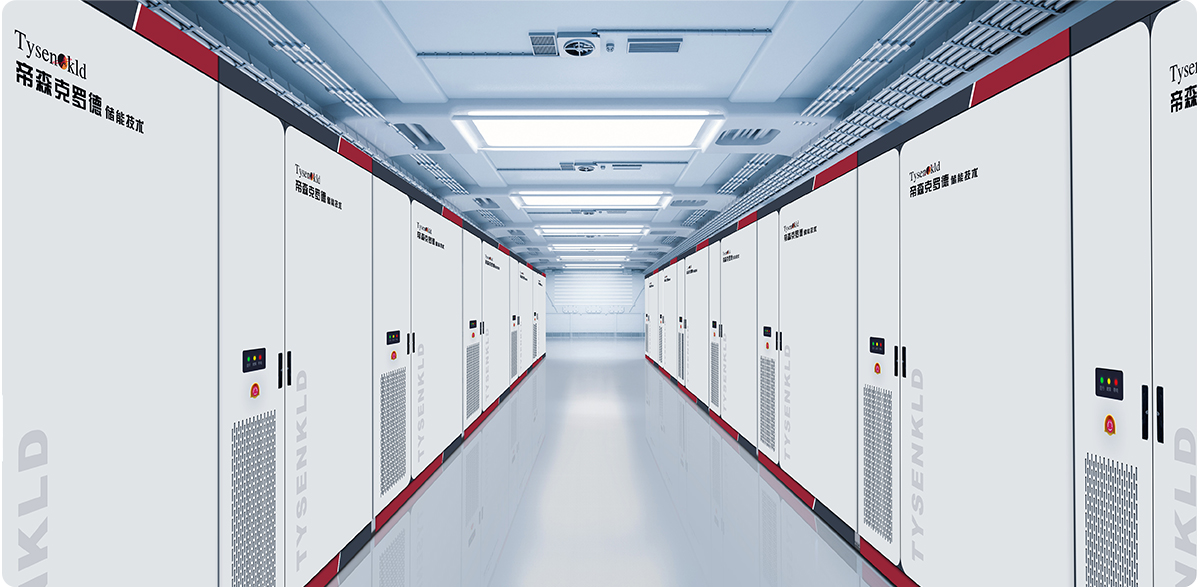

COMMERCIAL BUILDING

Due to limited underground space in commercial buildings, distributed energy storage systems are deployed flexibly and do not occupy valuable land resources, helping customers reduce their electricity bills.

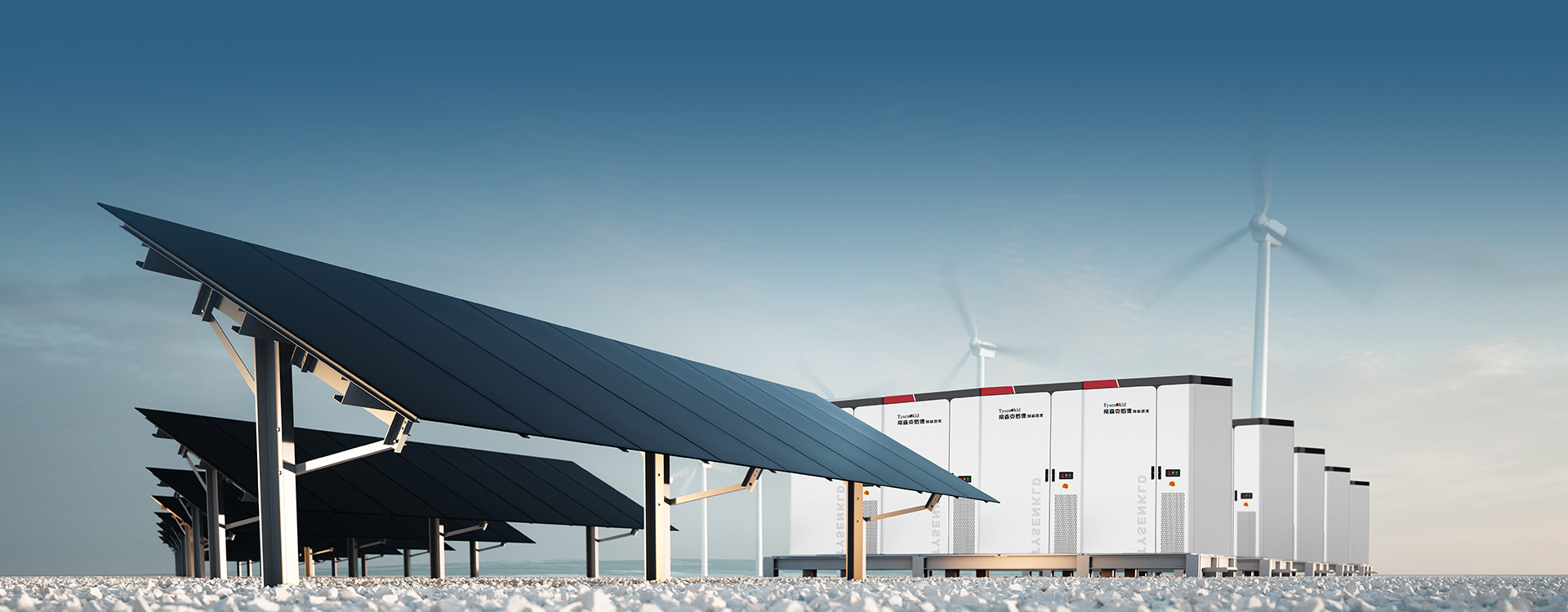

LARGE POWER STATION

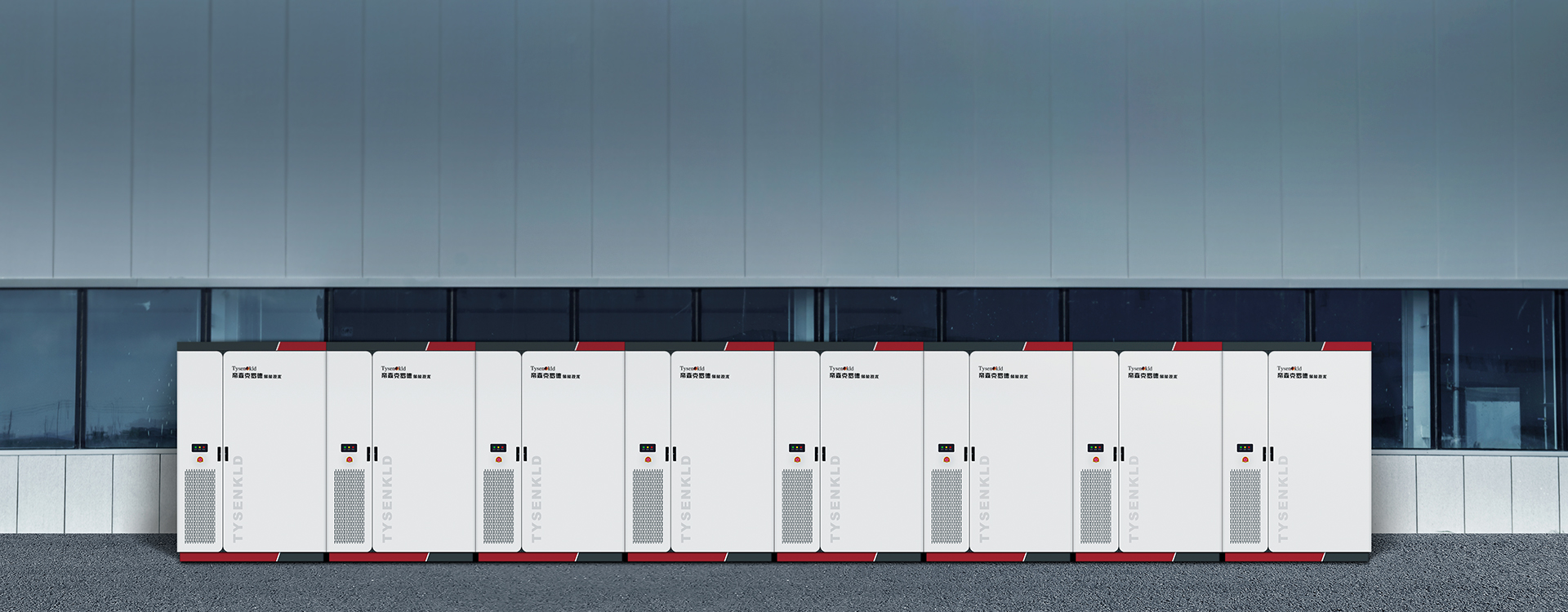

Distributed energy storage with multiple Parallel connections can meet the needs of megawatt-scale energy storage power plants. String systems are more efficient and safer, reducing costs of on-site deploymen.

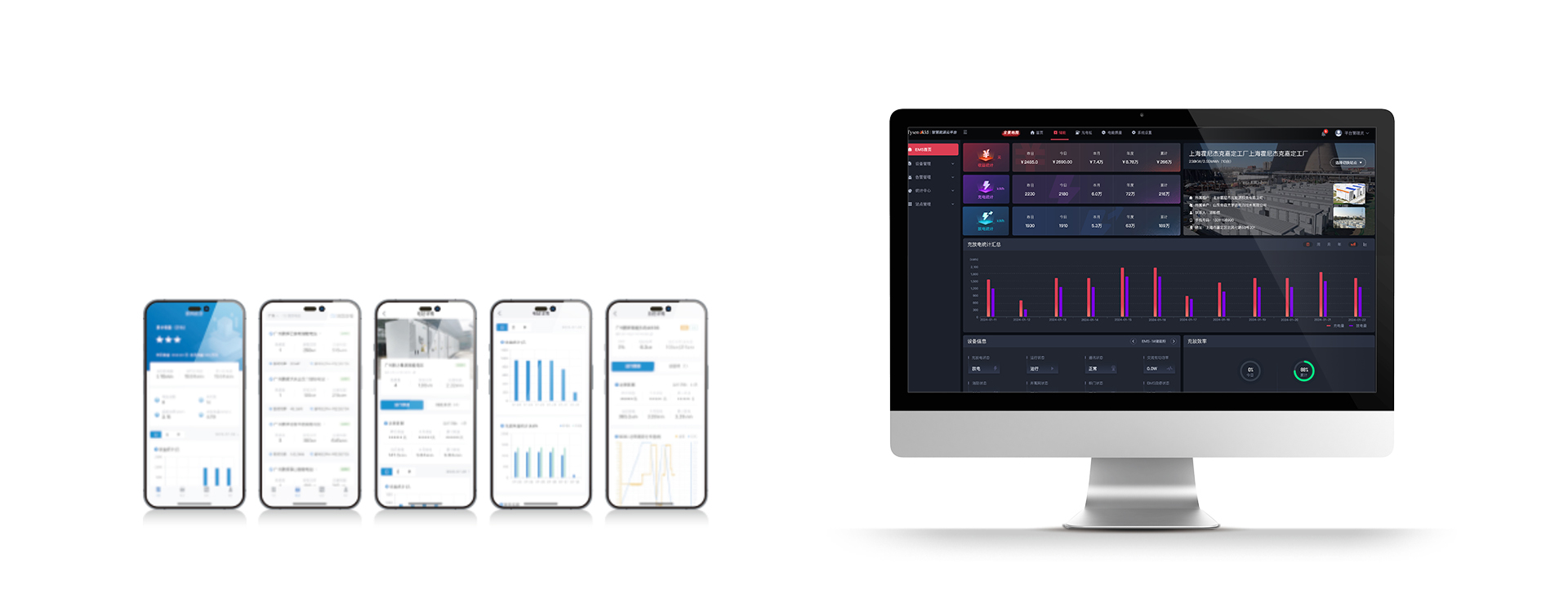

INTELLIGENT CLOUD PLATFORM

Make management easier and smarter.Management content is clearly visible, battery status can be monitored at any time, and AI provides optimal charging and discharging schemes.

TECHNOLOGY PARAMETER

Model KLD-PEW-100kW/215kWh KLD-PEW-100kW/215kWh-Y
Battery
Battery voltage range DC600-1000V
Battery cell capacity 280Ah/3.2V
battery capacity 215kWh
AC (on grid)
Rated output power 100kW
Maximum output power 110kW
Voltage range AC400V(-20%~+15%) AC400V(-20%~+15%)
AC (OFF GRID)
Rated voltage 400VAC
System parameter
protection grade IP54
Cooling method Air-cooled liquid-cooled

Note: material download page for detailed parameter

TECHNOLOGY PARAMETER

  • Battery

    Battery voltage range：DC600-1000V

    Battery cell capacity：280Ah/3.2V

    battery capacity：215kWh

    AC (on grid)

    Rated output power：100kW

    Maximum output power：110kW

    Voltage range：AC400V(-20%~+15%)

    AC (OFF GRID)

    Rated voltage：AC400V

    System parameter

    protection grade：IP54

    Cooling method：Air-cooled

  • Battery

    Battery voltage range：DC600-900V

    Battery cell capacity：280Ah/3.2V

    battery capacity：215kWh

    AC (on grid)

    Rated output power：100kW

    Maximum output power：110kW

    Voltage range：AC400V(-20%~+15%)

    AC (OFF GRID)

    Rated voltage：AC400V

    System parameter

    protection grade：IP54

    Cooling method：liquid-cooled
