KLD-DTF Series
Online Distributed Temperature Sensing System

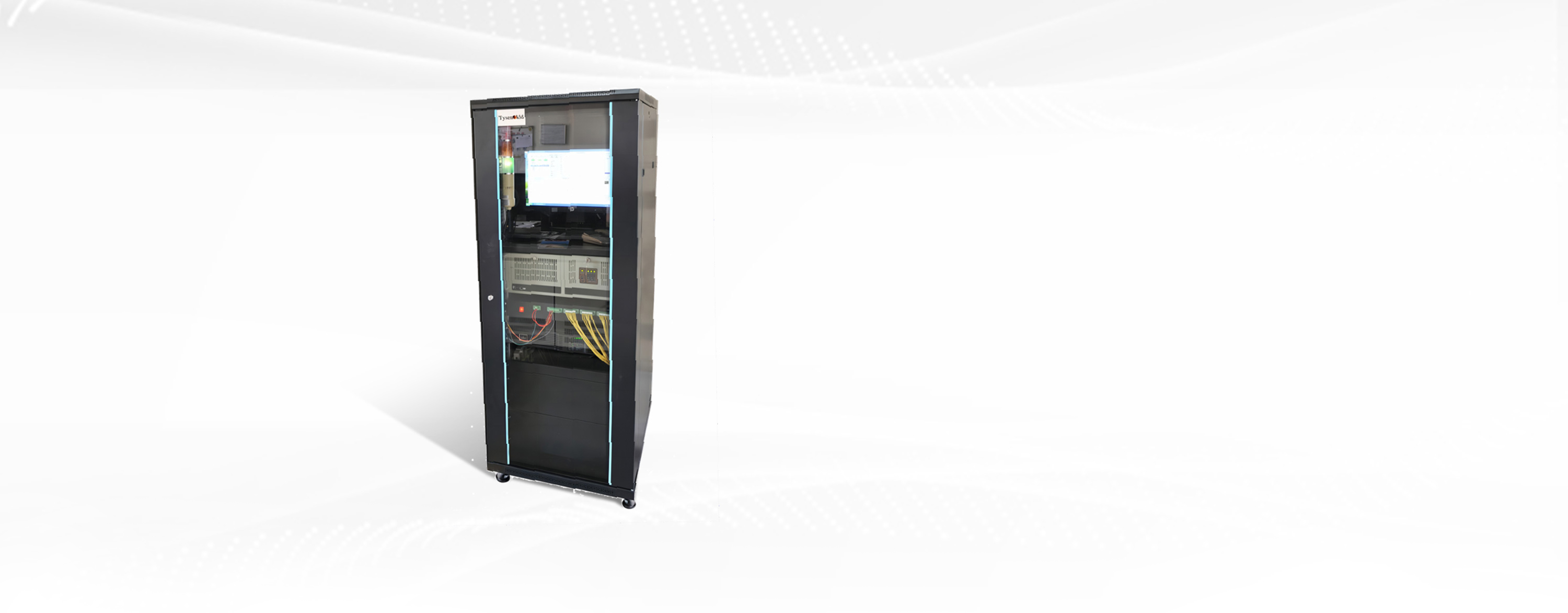

KLD-DTF Series Online Distributed Temperature Sensing System
It continuously monitors the temperature of cables, with the measurement distance ranging from a few kilometers to tens of kilometers, and spatial positioning accuracy reaching the level of meters.
KLD-DTF series online distributed temperature sensing system adopts Raman spectroscopy effect. The temperature field at each point of the space where the optical fiber is located modulates the optical carrier transmitted in the fiber, and it displays the temperature value of the space in real time after demodulation. Based on optical time-domain reflection (OTDR) technology, it timely measures the distribution of space temperature field and continuously measures the temperature along the fiber. The measurement distance is in the range of a few kilometers to tens of kilometers with high spatial positioning accuracy, which is applicable to the occasions that require continuous multi-point measurement. The system has the advantages of flame-proof, explosion-proof, corrosion-resistant, anti-electromagnetic interference, high accuracy, fast data transmission and reading speed, good adaptive performance, etc. It is safe to be used in hazardous environments, and it can quickly sense the linear temperature and locate the position in real time.
Online distributed temperature sensing system is used for real-time sensing of the spatial temperature field. is a sensing system used for real-time measurement of the spatial temperature field. The optical fiber is both the transmission media and the sensing media in the system. Utilizing the optical fiber Raman spectroscopy, each point of temperature field where the fiber is located modulates the optical carrier transmitted in the optical fiber, timely displays the temperature of the space after demodulation. It utilizes the optical time-domain reflection (OTDR) technology to locate each measured point of the temperature field according to the spread speed of light in the optical fiber and the time of back optical return (similar to optical radar system).
Component structure composition according to the actual situation at the site, intuitive display of the monitored objects, support for distributed composition on multiple screens at multiple stations.
Real-time continuous acquisition and monitoring of temperature information within the range and generate temperature curves.
Query historical temperature data for two-dimensional or three-dimensional temperature data analysis.
Configuration of alarm rules for multiple types in multiple zones.
Various alarm modes.
Support processing of alarm data and querying of alarm history.
Develop statistical analysis report of the temperature data and alarm data.
Support network monitoring of multiple temperature measurement hosts for centralized management.
Easily accessible to SCADA and other main monitoring network, support OPC and other general extension interface.
| Monitoring distance | 2km、4km、10km、30km |
| Number of channels | 2, 4, 6, 8, 16 (customized) |
| Positioning accuracy | 0.1m |
| Temperature sensing accuracy | ±0.5℃ |
| Sensing time | 1s~30s(depends on the sensing distance) |
| Temperature sensing range | -50℃~+750℃(depends on the probe cable) |
| Type of optical fiber | Multi-mode 50/125μm(compatible 62.5/125μm)Single-mode 9/125μm |
Monitoring distance：2km、4km、10km、30km
Number of channels：2, 4, 6, 8, 16 (customized)
Positioning accuracy ：0.1m
Temperature sensing accuracy ：±0.5℃
Sensing time：1s~30s(depends on the sensing distance)
Temperature sensing range：-50℃~+750℃(depends on the probe cable)
Type of optical fiber：Multi-mode 50/125μm(compatible 62.5/125μm)Single-mode 9/125μm
